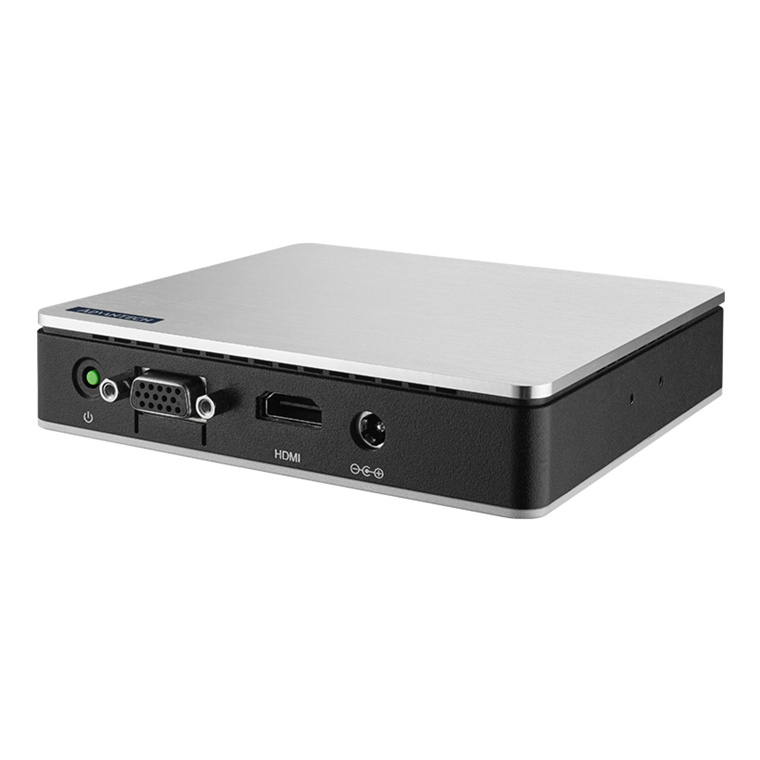

Advantech Digtal signage and mini PC DS-410GB Intel J6412/8G RAM/HDMI 4K(3840 x 2160) x 1/RJ45 x2 w/o storage.
Advantech Digtal signage and mini PC DS-410GB Intel J6412/8G RAM/HDMI 4K(3840 x 2160) x 1/RJ45 x2 w/o storage.
- Brand: Advantech
- MPN: DS-410GB-U1A1E
- Part #: IPCAVH210002
- UPC:
- Brand: Advantech
- MPN: DS-410GB-U1A1E
- Part #: IPCAVH210002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech Digtal signage and mini PC DS-410GB Intel J6412/8G RAM/HDMI 4K(3840 x 2160) x 1/RJ45 x2 w/o storage.
- Brand: Advantech
- MPN: DS-410GB-U1A1E
- Part #: IPCAVH210002

Product URL: https://www.pbtech.com/pacific/product/IPCAVH210002/Advantech-Digtal-signage-and-mini-PC-DS-410GB-Inte
Features
Specifications
Processor
Chipset
Intel Elkhart Lake, 4 Cores J6412, 2.0 Ghz
BIOS
AMI uEFI 128 Mbit
Memory
Technology
LPDDR4 3733Mhz
Max. Capacity
8GB on Board
Socket
On Board Memory
CPU TDP
CPU TDP
10W
Thermal Solution
Solution
Fanless
Display
Graphics Engine
Intel UHD graphics
Output
1 x HDMI 2.0 (4K); 1 x VGA
HDMI Resolution
3840 x 2160 @ 60Hz
Ethernet
Controller
Realtek RTL8119I
Interface
Gigabit LAN Controller
Connector
2 x RJ-45
I/O Interfaces
Audio
Reserve for OEM Demand
LAN (RJ-45)
2
Display
1 x HDMI 2.0 (4K); 1 x VGA (FHD)
USB
2 x USB 3.1
Serial Port (RS-232)
2 x RS232 ( in RJ11 Conn.)
PSW
1 x Power on/off button
External Power Pin
Power on/off pins ( in RJ11 Conn.)
LED Indicators
1 x Power, 1 x HDD Access
Storage
M.2
2242 M Key (SATA)
WiFi & BT
M.2
2230 E Key
Power Requirement
Power Management
ACPI 3.0
Input Voltage
19 V DC-in (ATX/AT mode)
Watchdog Timer
Output
Interrupt, system reset
Interval
255-level timer interval, setup by software
Physical Characteristics
Mounting
ESA/Desk/Wall/Din Rail
Dimensions (W x D x H)
124 x 116 x 26 mm
Weight
0.41 kg
Environment
Operating Temperature
0~40°C (with 0.7m/s air flow); 0~35°C (without air flow)
Out Case Temperature
60 °C ( Full loading at room temperature)
Relative Humidity
95% @ 40 °C (non-condensing), operating
Operating System
Operating System
Win10 x64
Linux
Certifications
EMC
CE, FCC Class B, CCC, BSMI, RED, UKCA
Safety
UL, CB, CCC, BSMI, UKCA
