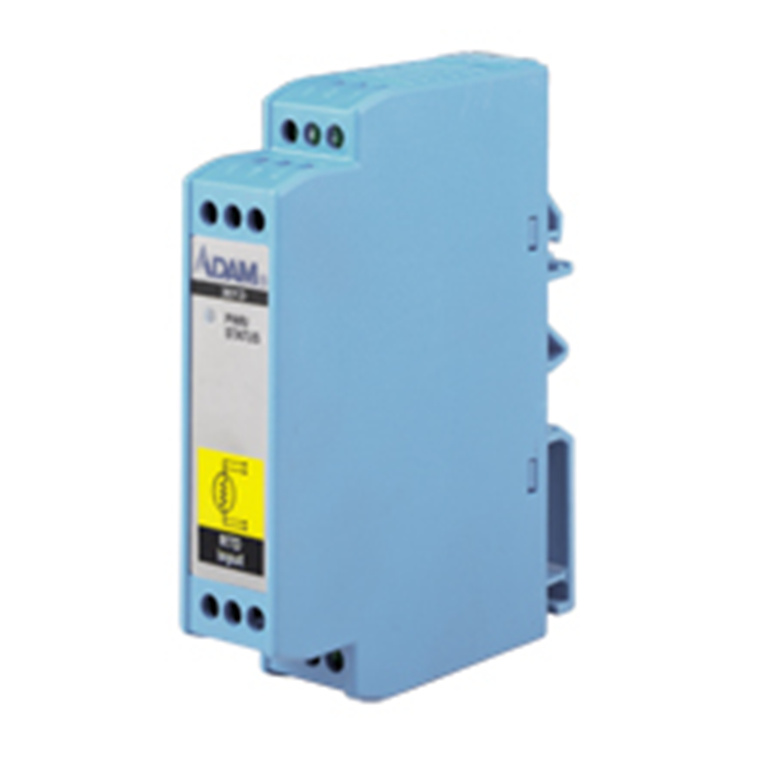

Advantech ADAM-3013-AE Isolated RTD Input Module
- Brand: Advantech
- MPN: ADAM-3013-AE
- Part #: IPCAVH220003

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220003/Advantech-ADAM-3013-AE-Isolated-RTD-Input-Module
Features
ADAM-3013
Isolated RTD Input Module
- 1000 VDC 3-way optical isolation
- Built-in microprocessor
- Switch configurable for 0~5 V, 0~10 V or 0~20 mA outputs
- Switch configurable Pt and Ni RTD input ranges
Input Type
Specifications
RTD Input
Accuracy
± 0.1% of full range (voltage) or ± 0.15 °C (voltage)
± 0.2% of full range (current)
Bandwidth
4 Hz
Input CMR at DC
92 dB min.
Input Connections
2/3/4 wires
Output Range
0 ~ 5 V, 0 ~ 10 V,
0 ~ 20 mA
Output Resistance
< 5 ?
Temperature Drift
± 30 ppm of full range
General
Connectors
Screw terminal
Enclosure
ABS
Indicators
Power LED indicator
Isolation
1,000 VDC
Power Consumption
< 0.95 W
Power Input
24 VDC ±10%
Dimensions (W x H x D)
23.2 x 101 x 93.5 mm (0.91" x 3.97" x 3.68")
Operating Temperature
0 ~ 70 °C (32 ~ 158 °F)
Storage Temperature
-25 ~ 85 °C (-13 ~ 185 °F)
