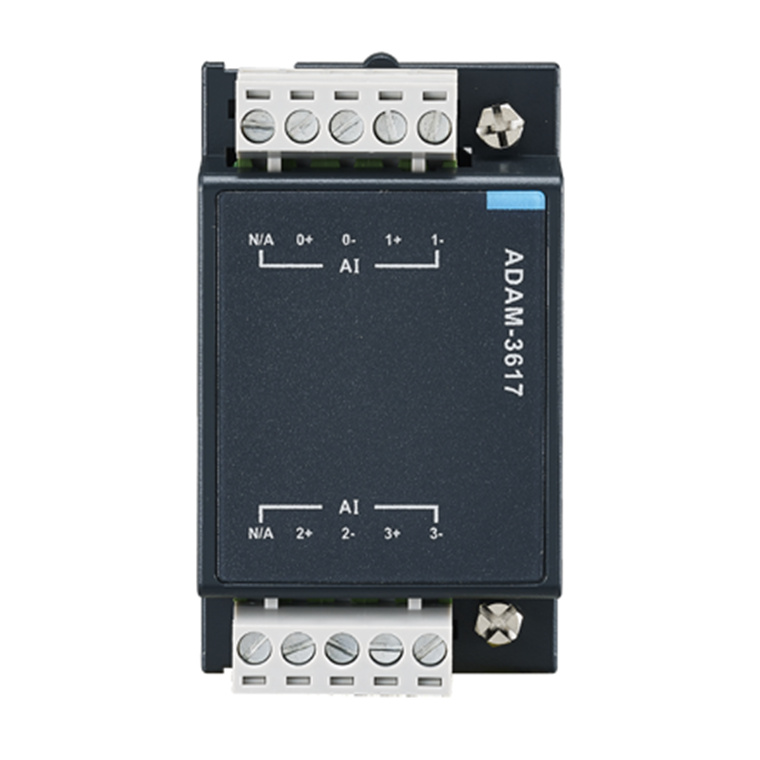

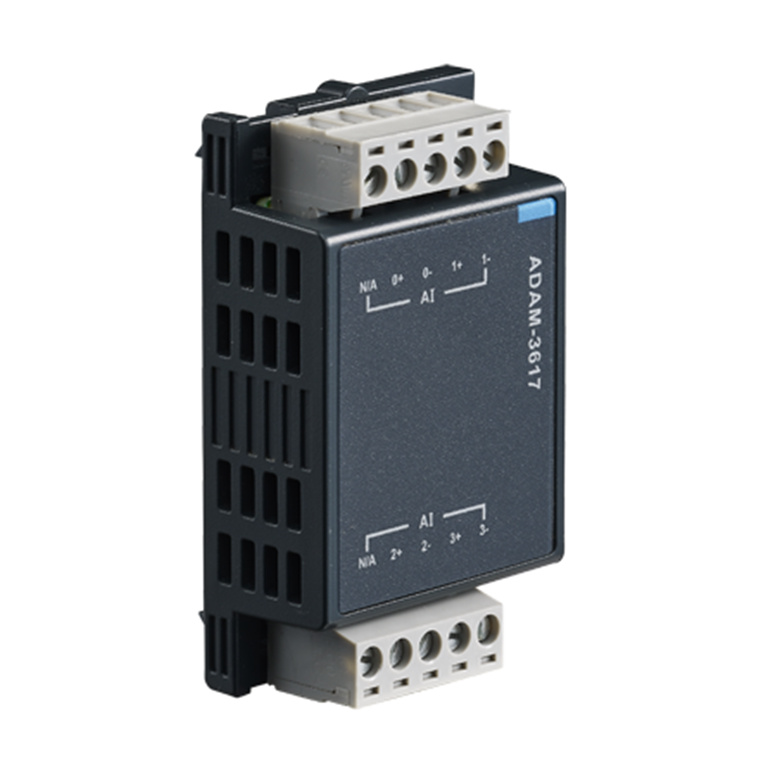

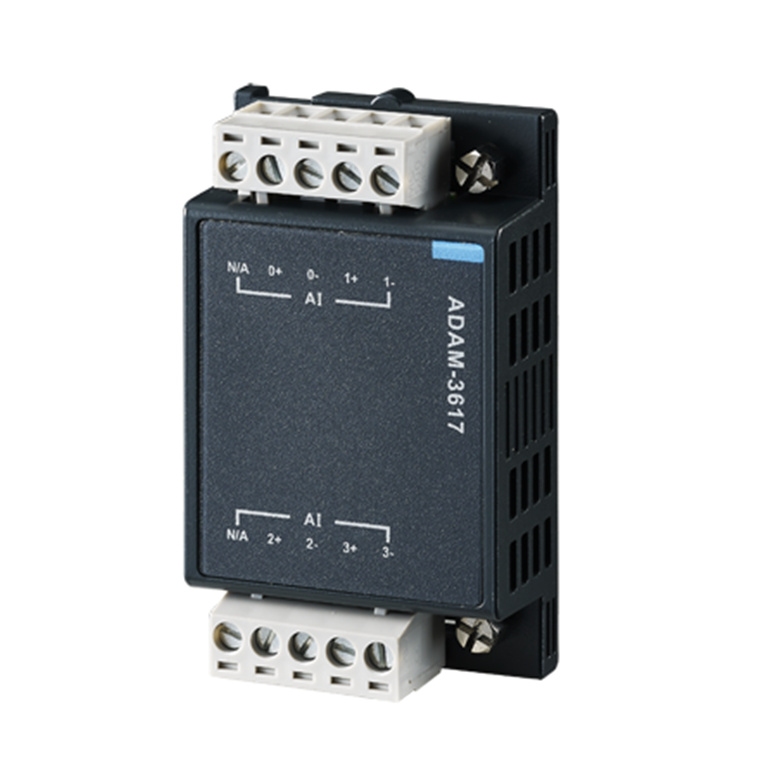

Advantech ADAM-3617-AE 4AI Remote I/O Module for ADAM-3600
- Brand: Advantech
- MPN: ADAM-3617-AE
- Part #: IPCAVH220010

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220010/Advantech-ADAM-3617-AE-4AI-Remote-IO-Module-for-AD
Features
ADAM-3617
4-ch Analog Input Module
- Accuracy: ±0.1% or better of FSR (Voltage) ±0.2% or better of FSR (Current)
- Resolution: 16-bit
- Voltage/Current: ±10V, ±2.5V, 0 ~ 20mA, Range 4 ~ 20mA
- Isolation Voltage: 2000 V DC
- Sampling rate: 10 sample/second (total)
- Burn-out detection: Yes (Current-only)
- Input Impedance: 0.1 MO
- Input Type: Voltage, Current
- Channels: 4, differential
Specifications
General
Power Consumption
1W (Max)
Certification
CE/FCC
Analog Input
Channels
4, differential
Input Type
Voltage, Current
Resolution
16-bit
Voltage/Current
±10V, ±2.5V, 0 ~ 20mA, Range 4 ~ 20mA
Sampling rate
10 sample/second (total)
Input Impedance
0.1 MO
Accuracy
±0.1% or better of FSR (Voltage) ±0.2% or better of FSR (Current)
CMR @ 50/60 Hz
90 dBs
NMR @ 50/60 Hz
60 dBs
Span Drift
± 25 ppm/°C
Zero Drift
± 6 µV/°C, ± 6 µA/°C
Isolation Voltage
2000 VDC
Burn-out detection
Yes (Current-only)
Environment
Operating Temp.
-40 ~ 70°C
Storage Temp.
-40 ~ 85°C
Humidity
5 ~ 95% (no-condensation)
