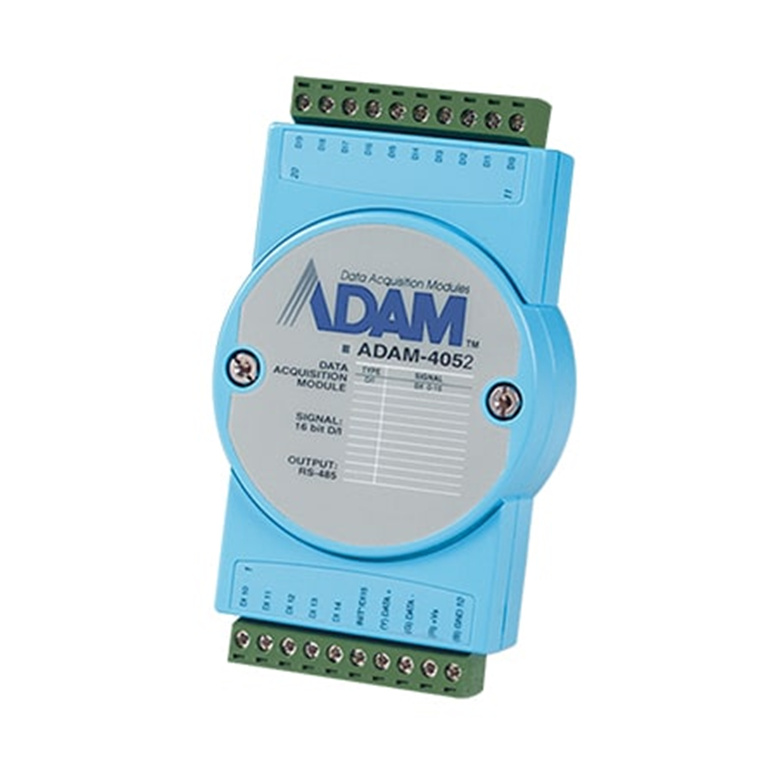

Advantech ADAM-4052-BE 8DI RS-485 Remote I/O
- Brand: Advantech
- MPN: ADAM-4052-BE
- Part #: IPCAVH220052

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220052/Advantech-ADAM-4052-BE-8DI-RS-485-Remote-IO
Features
ADAM-4052
8DI RS-485 Remote I/O
- 8ch digital input
- Protocols:ASCII
- Watchdog timer to recover the system
- 5000VRMS isolation protection
Specifications
General
Certification
FCC, CE, UL
Connectors
2 x plug-in terminal blocks (#14 ~ 22 AWG)
Power Consumption
0.4 W @ 24 VDC
Watchdog Timer
System (1.6 second)
Supported Protocols
ASCII command
Digital Input
Channels
8
(6 fully independent isolated channels, 2 isolated channels with common ground)
Input Level
Logic level 0: 1V or floating
Logic level 1: 3 ~ 30 V
Support DO type: Sink (NPN) and Source (PNP)
Isolation Voltage
5,000 VRMS
Input Resistance
3 k?
General
Power Input
Unregulated 10 ~ 30 VDC
Environment
Operating Humidity
5 ~ 95% RH
Operating Temperature
- 10 ~ 70°C (14 ~ 158°F)
Storage Temperature
- 25 ~ 85°C (-13 ~ 185°F)
