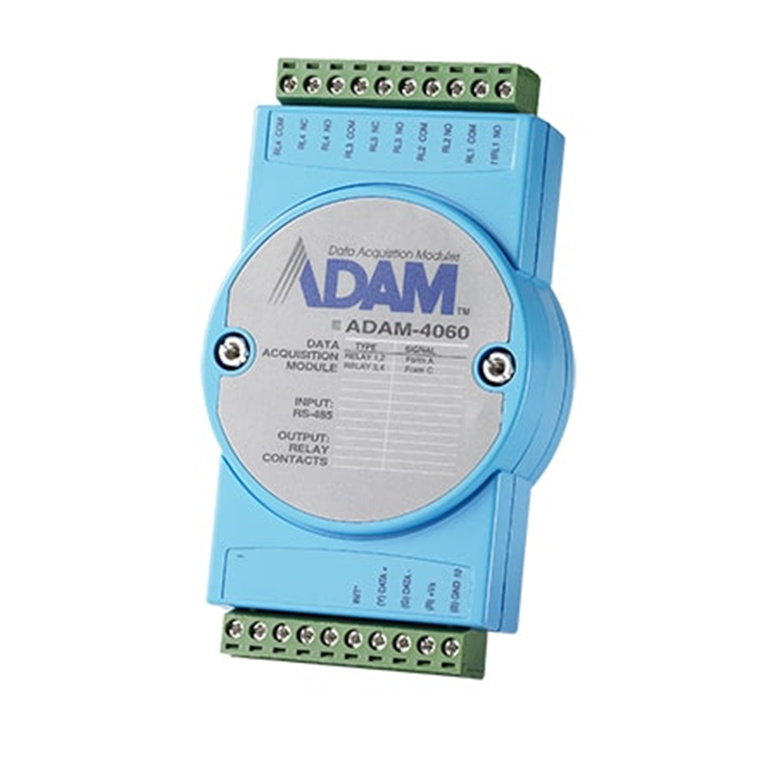

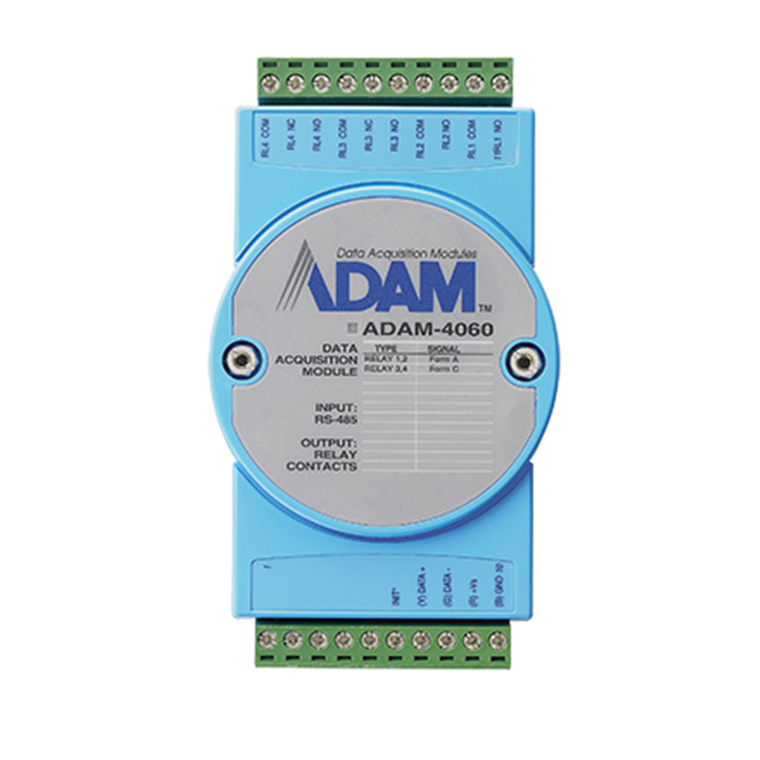

Advantech ADAM-4060-DE 4Relay RS-485 Remote I/O
- Brand: Advantech
- MPN: ADAM-4060-DE
- Part #: IPCAVH220060

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220060/Advantech-ADAM-4060-DE-4Relay-RS-485-Remote-IO
Features
ADAM-4060
4Relay RS-485 Remote I/O
- 4ch relay
- Protocols:Modbus RTU,ASCII
- Watchdog timer to recover the system
Specifications
General
Certification
FCC, CE
Connectors
2 x plug-in terminal blocks (#14 ~ 22 AWG)
Power Consumption
0.9 W @ 24 V DC typ.
1.3 W @ 24 V DC max.
Watchdog Timer
System (1.6 second)
Supported Protocols
ASCII command and Modbus/RTU
Relay Output
Breakdown Voltage
500 VAC (50/60 Hz)
Channels
2 x Form A
2 x Form C
Contact Rating (Resistive)
0.6 A @ 125 VAC
0.3 A @ 250 VAC
2 A @ 30 VDC
0.6 A @ 110 VDC
Initial Insulation Resistance
100 MO min. at 500 VDC
Relay off Time (Typical)
5 ms
Relay on Time (Typical)
4 ms
Maximum Operating Speed
20 operations/min (at related load)
General
Power Input
Unregulated 10 ~ 30 VDC
Environment
Operating Humidity
5 ~ 95% RH
Operating Temperature
-10 ~ 70°C (14 ~ 158°F)
Storage Temperature
-25 ~ 85°C (-13 ~ 185°F)
