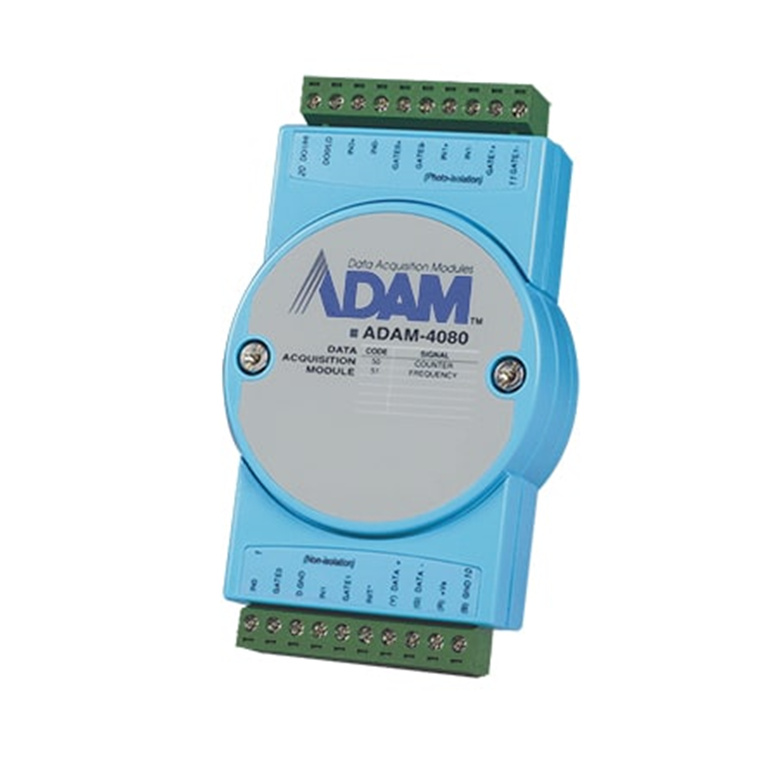

Advantech ADAM-4080-E 2Counter Modbus RS-485 Remote I/O
- Brand: Advantech
- MPN: ADAM-4080-E
- Part #: IPCAVH220070

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220070/Advantech-ADAM-4080-E-2Counter-Modbus-RS-485-Remot
Features
ADAM-4080
2Counter/2DO Modbus RS-485 Remote I/O
- 2ch counter/2ch digital output
- Protocols:Modbus RTU,ASCII
- Watchdog timer to recover the system
- 2500VRMS isolation protection
- Counter frequency up to 50kHZ
Specifications
General
Connectors
2 x plug-in terminal blocks (#14 ~ 22 AWG)
Power Consumption
2.0 W @ 24 VDC
Watchdog Timer
System (1.6 second)
Supported Protocols
ASCII command
LED Indicators
5-digit readout, Ch 0 or Ch 1 (programmable)
Counter Input
Channels
2 independent counters (32-bit + 1-bit overflow)
Input Frequency
50 kHz max.
Input Pulse Width
>10 µs.
Input Mode
lsolated or non-isolated
Isolated Input Level
Logic level 0: 1 V max.
Logic level 1: 3.5~30 V
Isolation Voltage
2,500 VRMS
Non-isolated Input Level
Programmable threshold:
Logic level 0: 0.8 Vmax.
Logic level 1: 2.4 ~ 5.0 V
Maximum Count
4,294,967,295 (32 bits)
Preset Type
Absolute or relative
Programmable Digital Noise Filter
2 µs ~ 65 ms
Alarm
Alarm comparators on each counter
Frequency Measurement Range
5 Hz ~ 50 kHz
Programmable Built-in Gate Time
1 or 0.1 second
Digital Output
Channels
2, open collector to 30 V, 30 mA max. load
Power Dissipation
300 mW for each channel
General
Power Input
Unregulated 10 ~ 30 VDC
Environment
Humidity
5 ~ 95% RH
Operating Temperature
-10 ~ 70°C (14 ~ 158° F)
Storage Temperature
-25 ~ 85°C (-13 ~ 185° F)
