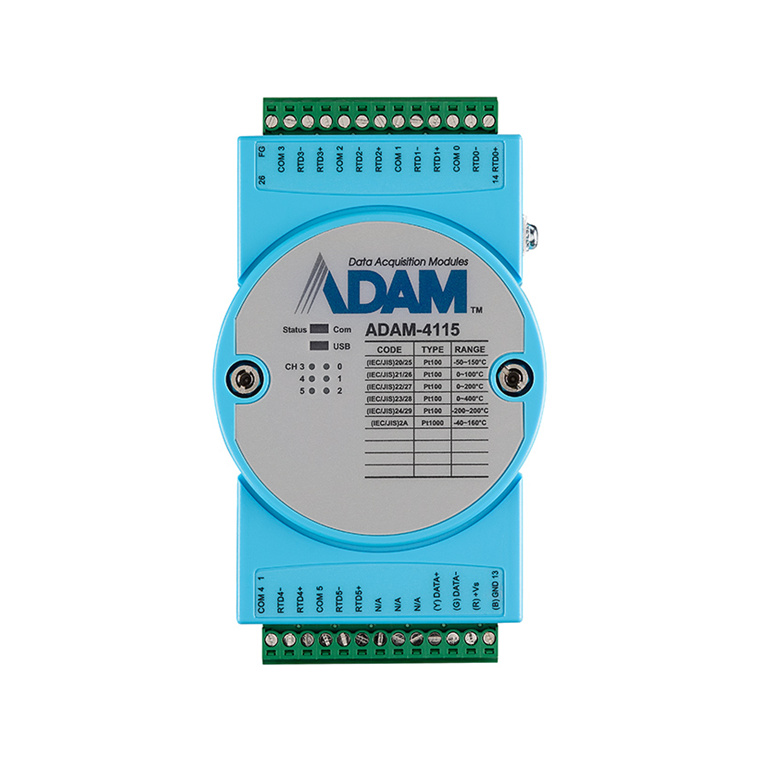

Advantech ADAM-4115-B 6RTD Robust Modbus RS-485 Remote I/O

PB Tech price

NZD $ 617 .24

$ 617 .24

Advantech ADAM-4115-B 6RTD Robust Modbus RS-485 Remote I/O

Brand: Advantech
MPN: ADAM-4115-B
Part #: IPCAVH220071
UPC:

PB Tech price

NZD $ 617 .24

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-4115-B
Part #: IPCAVH220071
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ADAM-4115-B

The ADAM-4115 6-channel RTD input module accepts a wide range of RTD sensor types, including Pt100, Pt1000, Ni50, Ni508, and Balco 500 series.

- Robust 6 channels RTD input module
- Broader operating temperature range: -40 ~ 85°C
- Broader power input Range: +10~+48 VDC
- Higher noise immunity: 4 kV surge protection on power inputs, 4 kV EFT, and ESD (8kV Air, 6kV contact) protection
- Online firmware update

Specifications

General

Certification

CE, FCC, UL

Connectors

2 x plug-in terminal blocks (#14 ~ 28 AWG)

Power Consumption

1.2 W @ 24 VDC

Watchdog Timer

System (1.6 s) & Communication

Supported Protocols

ASCII command and Modbus/RTU

Interface

RS-485, Micro USB

Burnout Detection

Yes

RTD Input

Channels

6 differential

Input Connections

2, 3-wire

Sampling Rate

10/100 Hz total channels (selected by utility)

Input Impedance

10 MO

Input Type

Pt, Balco and Ni RTD

RTD Types and Temperature Ranges

Pt100
-50~150°C
0~100°C
0~200°C
0~400°C
-200~200°C
Supports both IEC 60751 ITS90 (0.0385 W/W/°C) and JIS C 1604 (0.0392 W/W/°C)
Pt1000 -40~160°C
Balco (500) -30~120°C
Ni (518) -80~100°C
0~100°C

Accuracy

±0.1% (Typical)

CMR @ 50/60 Hz

120 dB

Span Drift

± 25 ppm/°C

Zero Drift

±6 µV/° C

General

Power Input

10 ~ 30 VDC
ADAM-4115: 10 ~ 48 VDC

Environment

Operating Humidity

5 ~ 95% RH

?Operating Temperature

-10 ~ 70°C (14 ~ 158°F)
ADAM-4115: -40 ~ 85°C (-40 ~ 185°F)

Storage Temperature

- 25 ~ 85°C (-13 ~ 185°F)
ADAM-4115: -40 ~ 85°C (-40 ~ 185°F)

Manufacturer Part No:

ADAM-4115-B

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220071

Product Model:

ADAM-4115-B

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
