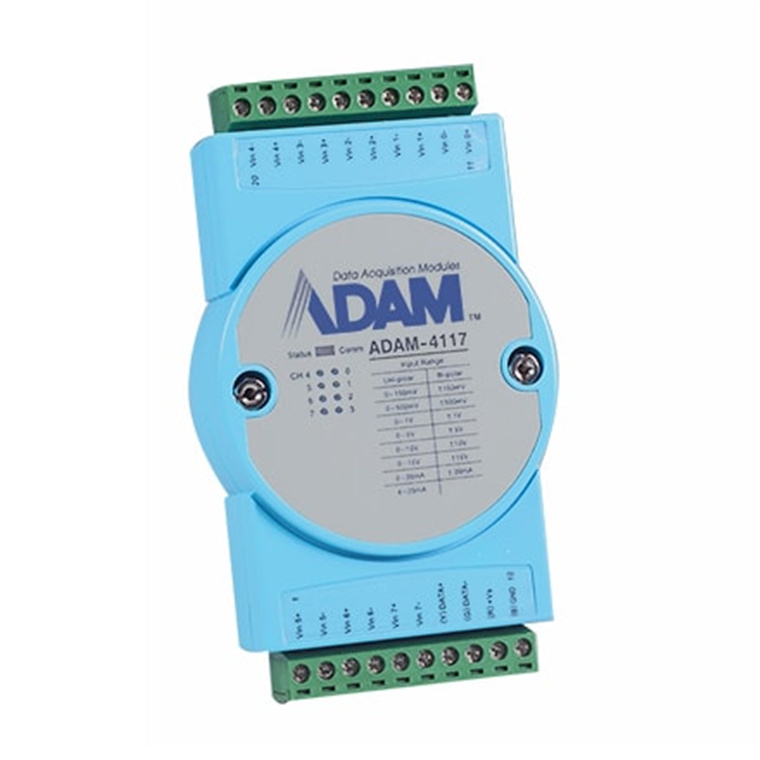

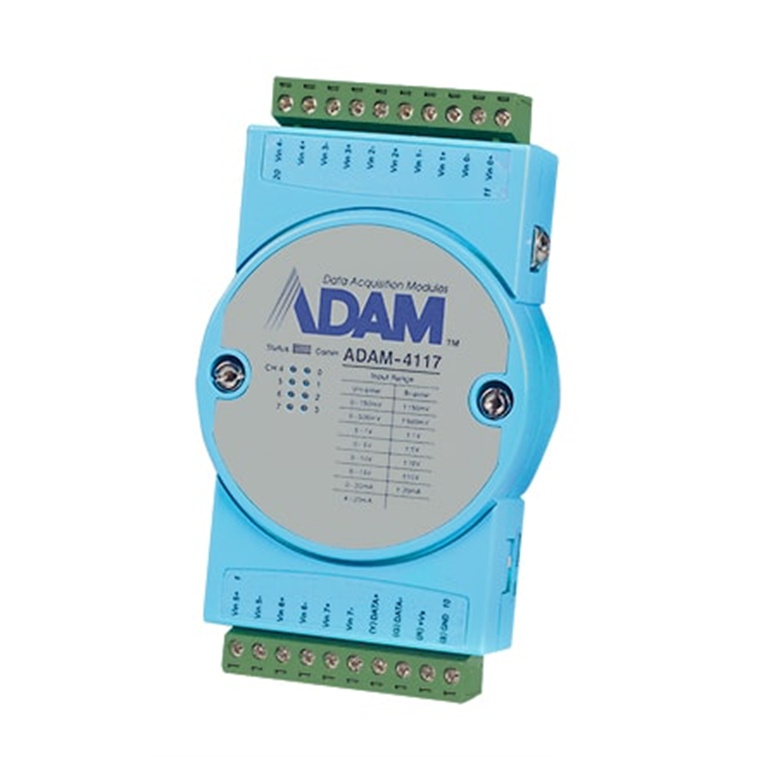

Advantech ADAM-4117-C 8AI Robust Modbus RS-485 Remote I/O

PB Tech price

NZD $ 452 .30

$ 452 .30

Advantech ADAM-4117-C 8AI Robust Modbus RS-485 Remote I/O

Brand: Advantech
MPN: ADAM-4117-C
Part #: IPCAVH220075
UPC:

PB Tech price

NZD $ 452 .30

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-4117-C
Part #: IPCAVH220075
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ADAM-4117

8AI Robust Modbus RS-485 Remote I/O

- 8ch analog input(voltage or current)
- Operation temperature:-40~85°C,Power input:10VDC~48VDC
- Noise protection: 4kV surge(power),4kV EFT,8 kV ESD protection
- Interface: RS-485/USB
- 3000VDC isolation protection
- LED indicator to monitor I/O status

Specifications

General

Connectors

2 x plug-in terminal blocks (#14 ~ 22 AWG)

Watchdog Timer

System (1.6 second) & Communication

Supported Protocols

ASCII Command and Modbus/RTU

Power Consumption

1.2 W @ 24 VDC

Interface (B version)

RS-485,micro USB

Certification

FCC, CE

Analog Input

Channels

8 differential and independent configuration channels

Input Impedance

20 M?

lnput Type

mV, V, mA

lnput Range

0 ~ 150mV, 0 ~ 500mV,
0 ~ 1V, 0 ~ 5V, 0 ~ 10V,
0 ~ 15V, ±150 mV,
±500 mV, ±1V, ±5 V,
±10 V, ±15V, ±20 mA,
0 ~ 20 mA, 4 ~ 20mA

Accuracy

Voltage mode : ±0.1% or better
Current mode : ±0.2% or better

Resolution

16-bit

Sampling Rate

10/100 samples/sec (selected by utility)

CMR @ 50/60 Hz

92 dB

Over Voltage Protection

±60 VDC

High Common Mode

200 VDC

Span Drift

±25 ppm/°C (Typical)

Zero Drift

±6µV/°C

Built-in TVS/ESD Protection

General

Power Input

Unregulated 10 ~ 48 VDC w/power reversal protection

Isolation Voltage

3,000 VDC

Environment

Operating Humidity

5 ~ 95% RH

Operating Temperature

- 40 ~ 85°C (-40 ~ 185°F)

Storage Temperature

- 40 ~ 85°C (-40 ~ 185°F)

Supports Noise Rejection

Manufacturer Part No:

ADAM-4117-C

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220075

Product Model:

ADAM-4117-C

Warranty: 12 months *
