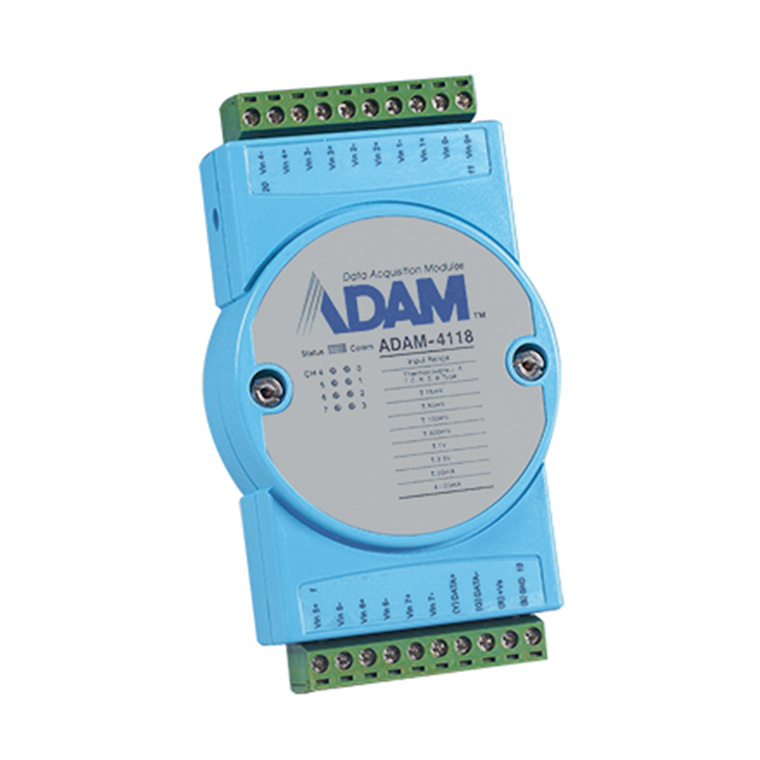

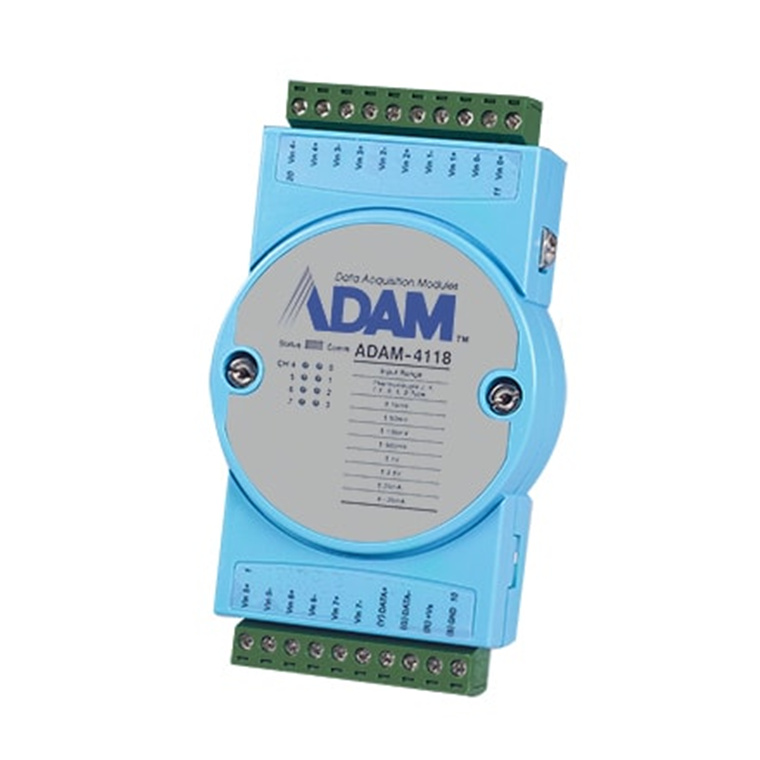

Advantech ADAM-4118-B 8Thermocouple Robust Modbus RS-485 Remote I/O

PB Tech price

NZD $ 481 .80

$ 481 .80

Advantech ADAM-4118-B 8Thermocouple Robust Modbus RS-485 Remote I/O

Brand: Advantech
MPN: ADAM-4118-B
Part #: IPCAVH220078
UPC:

PB Tech price

NZD $ 481 .80

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-4118-B
Part #: IPCAVH220078
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ADAM-4118

8Thermocouple Robust Modbus RS-485 Remote I/O

- 8ch thermocouple(can be set to voltage or current)
- Operation temperature:-40~85°C,Power input:10VDC~48VDC
- Noise protection: 4kV surge(power),4kV EFT,8 kV ESD protection
- Interface: RS-485/USB
- 3000VDC isolation protection
- LED indicator to monitor I/O status

Specifications

General

Certification

FCC, CE

Power Consumption

0.5W @ 24 VDC

Analog Input

Channels

8 differential and independent configuration channels

Input Impedance

20 MO

Input Type

T/C, mV, V, mA

Input Range

Thermocouple
J - 0 ~ 760°C
K - 0 ~ 1,370°C
T - -100 ~ 400°C
E - 0 ~ 1,000°C
R - 500 ~ 1,750°C
S - 500 ~ 1,750°C
B - 500 ~ 1,800°C
N - -200 ~ 1300°C

Voltage mode
0~15 mV, 0~50 mV,
0~100 mV, 0~500 mV,
0~1 V, 0~2.5 V, ±15 mV,
±50 mV, ±100 mV,
±500 mV, ±1 V, ±2.5 V

Current mode
0~20mA, ±20 mA,
4~20 mA

Accuracy

Voltage mode: ±0.1% or better
Current mode: ±0.2% or better

Resolution

16-bit

Sampling Rate

10/100 samples/sec (selected by Utility)

CMR @ 50/60 Hz

92 dB

Overvoltage Protection

±60 VDC

High Common Mode

200 VDC

Span Drift

±25 ppm/°C (Typical)

Zero Drift

±6µV/°C

Built-in TVS/ESD Protection

Burnout Detection

General

Power Input

Unregulated 10 ~ 48 VDC

Watchdog Timer

System (1.6 second) & Communication

Connector

2 x plug-in terminal blocks (#14 ~ 22 AWG)

Isolation Voltage

3,000 VDC

Interface (B version)

RS-485, micro USB

Supported Protocols

ASCII Command and Modbus/RTU

Environment

Operating Humidity

5 ~ 95% RH

Operating Temperature

-40 ~ 85°C (-40 ~ 185°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Manufacturer Part No:

ADAM-4118-B

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220078

Product Model:

ADAM-4118-B

Warranty: 12 months *
