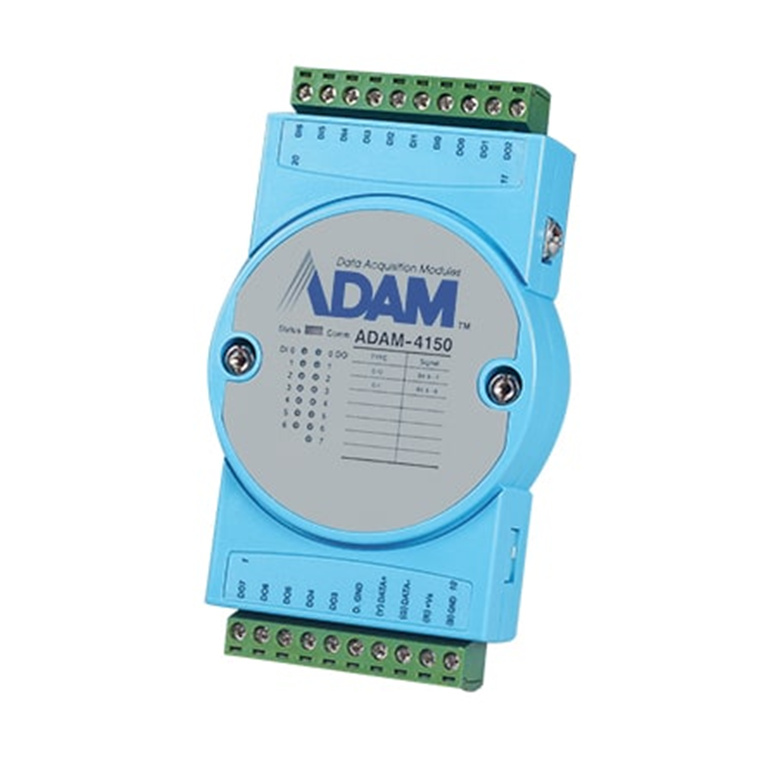

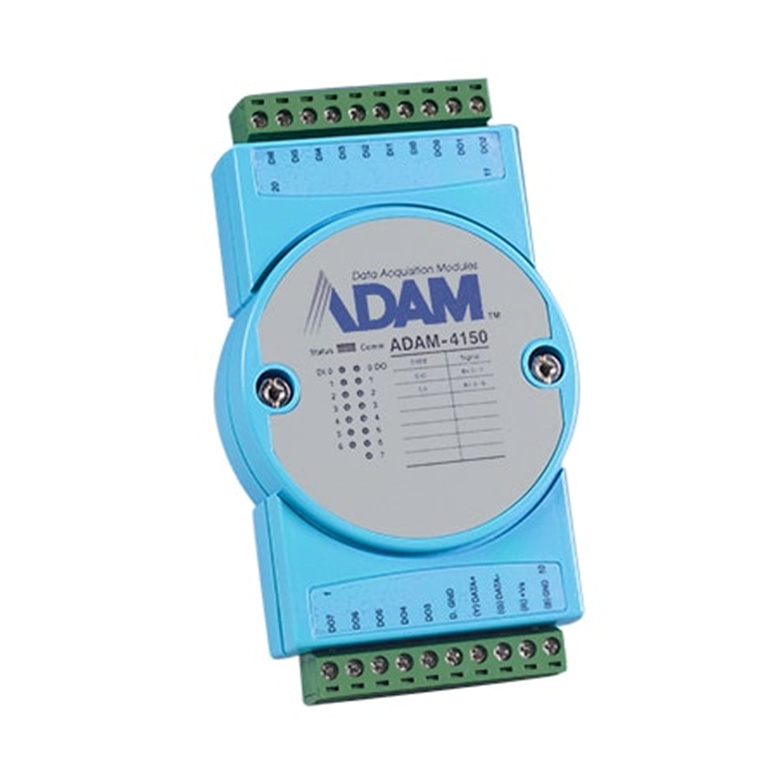

Advantech ADAM-4150-C 7DI/8DO Robust Modbus RS-485 Remote I/O
- Brand: Advantech
- MPN: ADAM-4150-C
- Part #: IPCAVH220082

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220082/Advantech-ADAM-4150-C-7DI8DO-Robust-Modbus-RS-485
Features
ADAM-4150
7DI/8DO Robust Modbus RS-485 Remote I/O
- 7ch digital input(counter)/8ch digital output(pulse output)
- Operation temperature:-40~85°C,Power input:10VDC~48VDC
- Noise protection: 4kV surge(power),4kV EFT,8 kV ESD protection
- Interface: RS-485/USB
- 3000VDC isolation protection
- LED indicator to monitor I/O status
Specifications
General
Certification
FCC, CE
Power Consumption
1.6 W @ 24 VDC
Digital Input
Channels
7
Input Level
Dry contact:
Logic level 0: Closed to GND
Logic level 1: Open
Wet contact:
Logic level 0: 3 V max
Logic level 1: 10 ~ 30 V or floating
Support DO type: Sink (NPN) only
Other
Supports 3 kHz Counter Input (32-bit + 1-bit overflow)
Supports 3 kHz Frequency Input
Over Voltage Protection
40 VDC
Digital Output
Channels
8, open collector to 40 V (0.1A max. per channel)
Power Dissipation
1W load max
RON Maximum
150 m?
Other
Supports 1 kHz Pulse Output
Supports High-to-Low Delay Output
Supports Low-to-High Delay Output
General
Power Input
Unregulated 10 ~ 48 VDC
Watchdog Timer
System (1.6 second) & Communication
Connector
2 x plug-in terminal blocks (#14 ~ 22 AWG)
Isolation Voltage
3,000 VDC
Interface (B version)
RS-485, micro USB
Supported Protocols
ASCII Command and Modbus/RTU
Environment
Operating Humidity
5 ~ 95% RH
Operating Temperature
-40 ~ 85°C (-40 ~ 185°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
