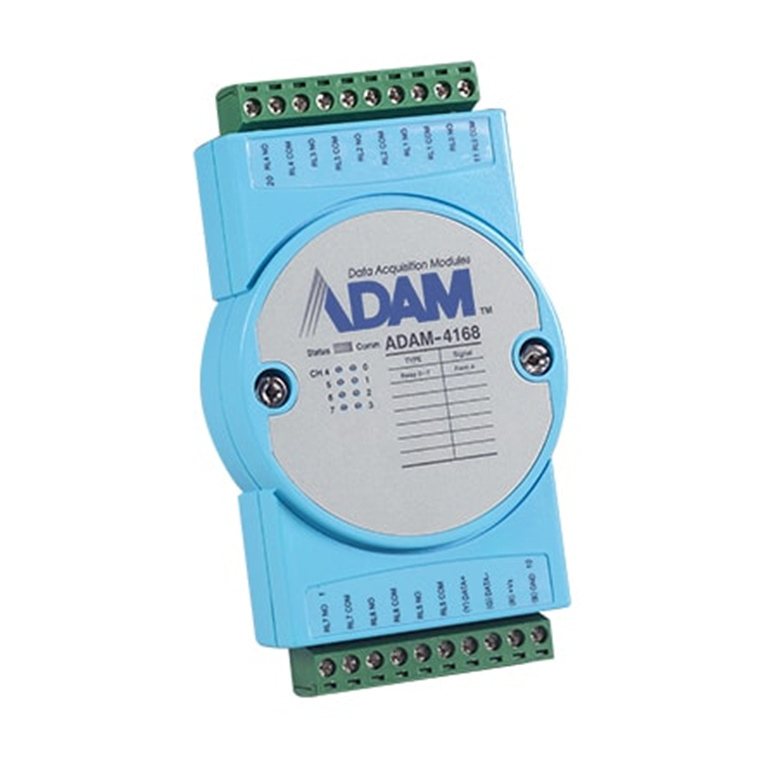

Advantech ADAM-4168-C 8Relay Robust Modbus RS-485 Remote I/O

PB Tech price

NZD $ 275 .30

$ 275 .30

Advantech ADAM-4168-C 8Relay Robust Modbus RS-485 Remote I/O

Brand: Advantech
MPN: ADAM-4168-C
Part #: IPCAVH220085
UPC:

PB Tech price

NZD $ 275 .30

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-4168-C
Part #: IPCAVH220085
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ADAM-4168

8Relay Robust Modbus RS-485 Remote I/O

- 8ch relay
- Operation temperature:-40~85°C,Power input:10VDC~48VDC
- Noise protection: 4kV surge(power),4kV EFT,8 kV ESD protection
- Interface: RS-485/USB
- 3000VDC isolation protection
- LED indicator to monitor I/O status

Specifications

General

Certification

FCC, CE

Power Consumption

2.3 W @ 24 VDC

Relay Output

Output Channels

8 Form A

Contact Rating (Resistive)

0.5 A @ 120 VAC
0.25 A @ 240 VAC
1 A @ 30 VDC
0.3 A @ 110 VDC

Breakdown Voltage

750 VAC (50/60 Hz)

Initial Insulation Resistance

1 G ? min. @ 500 VDC

Relay Response

On:4ms

Time (Typical)

Off:4ms

Total Switching Time (Typical)

10 ms

Supports 100 Hz pulse output

Maximum Operating Speed

50 operations/min (at related load)

General

Power Input

Unregulated 10 ~ 48 VDC

Watchdog Timer

System (1.6 second) & Communication

Connector

2 x plug-in terminal blocks (#14 ~ 22 AWG)

Isolation Voltage

3,000 VDC

Interface (B version)

RS-485, micro USB

Supported Protocols

ASCII Command and Modbus/RTU

Environment

Operating Humidity

5 ~ 95% RH

Operating Temperature

-40 ~ 85°C (-40 ~ 185°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Manufacturer Part No:

ADAM-4168-C

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220085

Product Model:

ADAM-4168-C

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
