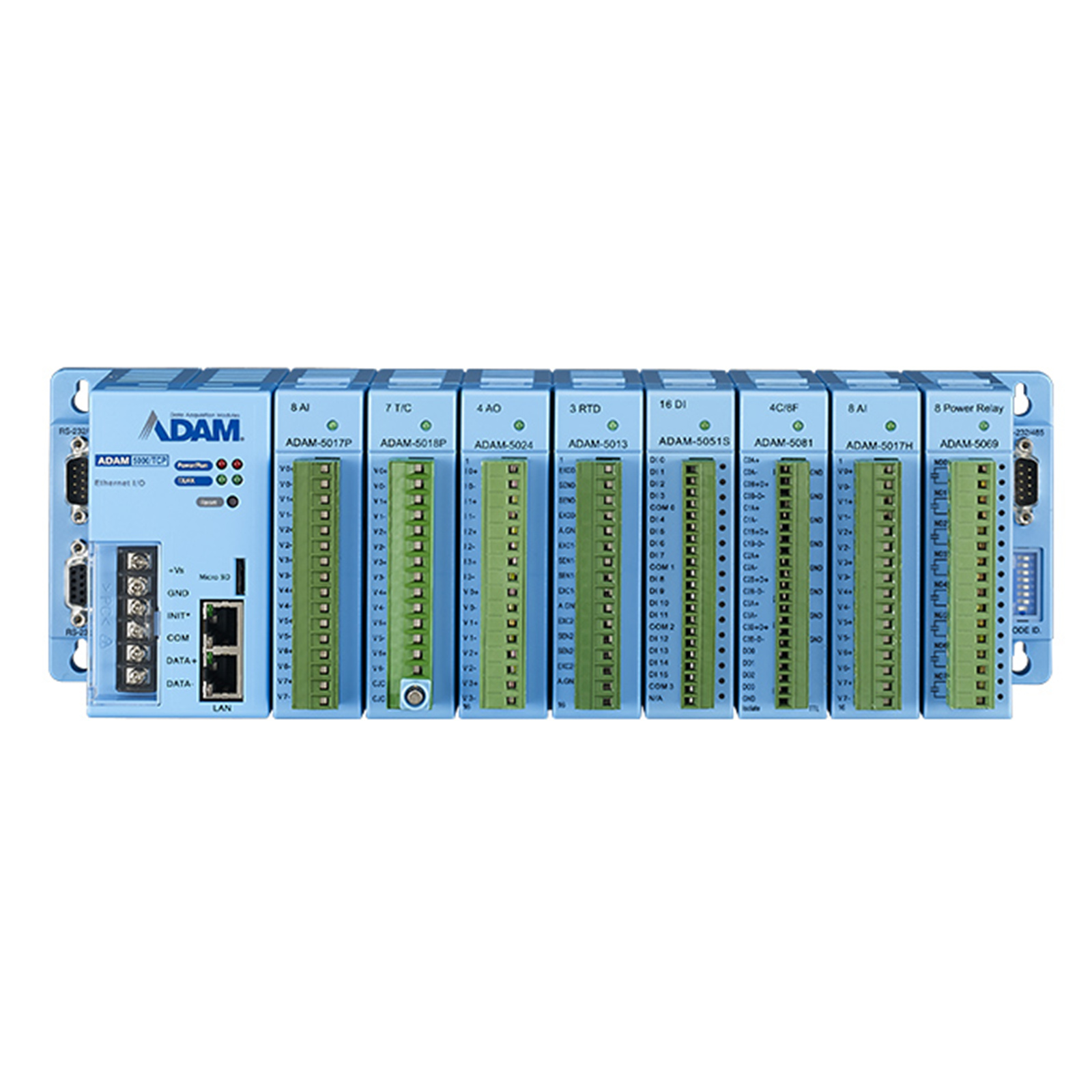

Advantech ADAM-5000/TCP-CE 8 slot Remote I/O System with Modbus Ethernet

  • Brand: Advantech
  • MPN: ADAM-5000/TCP-CE
  • Part #: IPCAVH220099
  • UPC:
PB Tech price
NZD $ 800 .73 $ 800 .73


Delivery: Order now and it ships on 26 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$800.73  +GST
$800.73

Features

- 10/100Base-T auto-negotiation high-speed communication port

- Supports Modbus/TCP for easy integration

- Supports UDP event handling function

- 1500 VDC isolation for Ethernet communication

- Provides C and .NET class library to develop applications

- Built-in watchdog timer for system auto-reset

- Windows utility- I/O modules configuration and calibration- Network auto searching- Data stream setting- Current status monitoring and alarm trigger

- 8 I/O slots for up to 128 points data monitoring and control

- Allows concurrent access for 8 host PCs

- Allows remote configuration via Ethernet

- Up to 100 m communication distance w/o repeater

- ARM 32-bit RISC CPU

Specifications

Control System

CPU

Cortex M4

I/O Slots

ADAM-5000L/TCP: 4
ADAM-5000/TCP: 8

?Memory Flash

ROM:1 MB

Operating System

Real-time OS

LED Indicators

Power (3.3 V)
RUN
Communication (Link, Active, 10/100 Mbps, Tx, Rx)

Storage

1 x MicroSD slot

Communications (Ethernet)

Data Transfer Rate

Up to 100 Mbps

Event Response Time

< 5 ms

Interface

2 x RJ-45 sharing one MAC Address

Wiring

UTP, category 5 or greater

Communications (Serial)

Comm. Distance

RS-485: 1.2 km (4000 feet)
RS-232: 15 m

Comm. Protocol

Modbus/RTU

Data Transfer Rate

Up to 115.2 kbps

Interface

1 x DB9-M for RS-485
1 x DB9-F for RS-485
1 x DB9-F for RS-232 (System Monitoring)

Max. Nodes

15 (in RS-485 daisy-chain network for Remote I/O connection)

Power

Power Consumption

4.0 W @ 24 VDC (ADAM-5000L/TCP)(not including I/O modules)
5.0 W @ 24 VDC (ADAM-5000/TCP)(not including I/O modules)

Power Input

Unregulated 10 ~ 30 VDC

Software

API

VS.NET Llass Library

Windows Utility

Network setting, I/O configuration & calibration, data stream, alarm setting

Protection

Communication Line

3.000 VDC

I/O Module Isolation

3.000 VDC

LAN Communication

1.500 VDC

Overvoltage Protection

Yes

Power Reversal

Yes

General

Certification

CE, FCC class A

Connectors

1 x DB9-M/DB9-F/screw terminal for RS-485
(communication)
1 x DB9-F for RS-232 (internal use)
1 x Screw-terminal for power input
2 x RJ-45 for LAN

Dimensions (W x H x D)

ADAM-5000L/TCP: 231 x 110 x 75 mm
ADAM-5000/TCP: 355 x 110 x 75 mm

Enclosure

ABS+PC

Mounting

DIN-rail, wall

Environment

Operating Humidity

5 ~ 95%, non-condensing

Operating Temperature

- 10 ~ 70°C (14 ~ 158°F)

Storage Temperature

- 25 ~ 85°C (-13 ~ 185°F)
