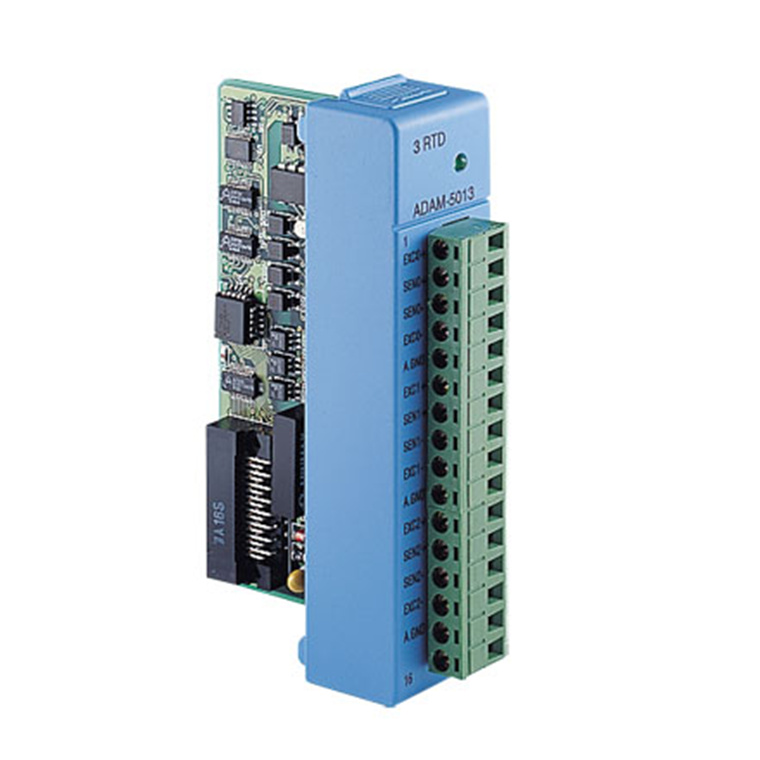

Advantech ADAM-5013-A2E 3-ch RTD Input Module

PB Tech price

NZD $ 363 .96

$ 363 .96

Advantech ADAM-5013-A2E 3-ch RTD Input Module

Brand: Advantech
MPN: ADAM-5013-A2E
Part #: IPCAVH220103
UPC:

PB Tech price

NZD $ 363 .96

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-5013-A2E
Part #: IPCAVH220103
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ADAM-5013

3-ch RTD Input Module

- Accuracy: ±0.1% or better
- Effective resolution: 16-bit
- Input connections: 2, 3 or 4 wire
- Sampling rate: 10 samples/sec. (total)
- Isolation voltage: 3000 VDC
- Input type: PT100 or Ni RTD
- Channels: 3

Specifications

General

Certification

Connectors

1 x Plug-in screw terminal (# 14 ~ 22 AWG)

Enclosure

ABS+PC

Power Consumption

1.1 W (max.)

RTD Input

Accuracy

±0.1% or better

Bandwidth

13.1 Hz @ 50 Hz
15.72 Hz @ 60 Hz

Channels

CMR @ 50/60 Hz

150 dB

Input Connections

2, 3 or 4 wire

Input Impedance

2 M?

lnput Type

PT100 or Ni RTD

NMR @ 50/60 Hz

100 dB

Resolution

16-bit

RTD Types and Temperature Ranges

IEC RTD 100 ohms
Pt -100°C to +100°C a=0.00385
Pt 0°C to +100°C a=0.00385
Pt 0°C to +200°C a=0.00385
Pt 0°C to +600°C a=0.00385

JIS RTD 100 ohms
Pt -100°C to +100°C a=0.00392
Pt 0°C to +100°C a=0.00392
Pt 0°C to +200°C a=0.00392
Pt 0°C to +600°C a=0.00392

Ni RTD
Ni -80°C to +100°C
Ni 0°C to +100°C

Sampling Rate

10 samples/sec. (total)

Span Drift

±0.01°C/°C

Zero Drift

±0.015°C/°C

Protection

Isolation Voltage

3000 VDC

Manufacturer Part No:

ADAM-5013-A2E

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220103

Product Model:

ADAM-5013-A2E

Warranty: 12 months *
