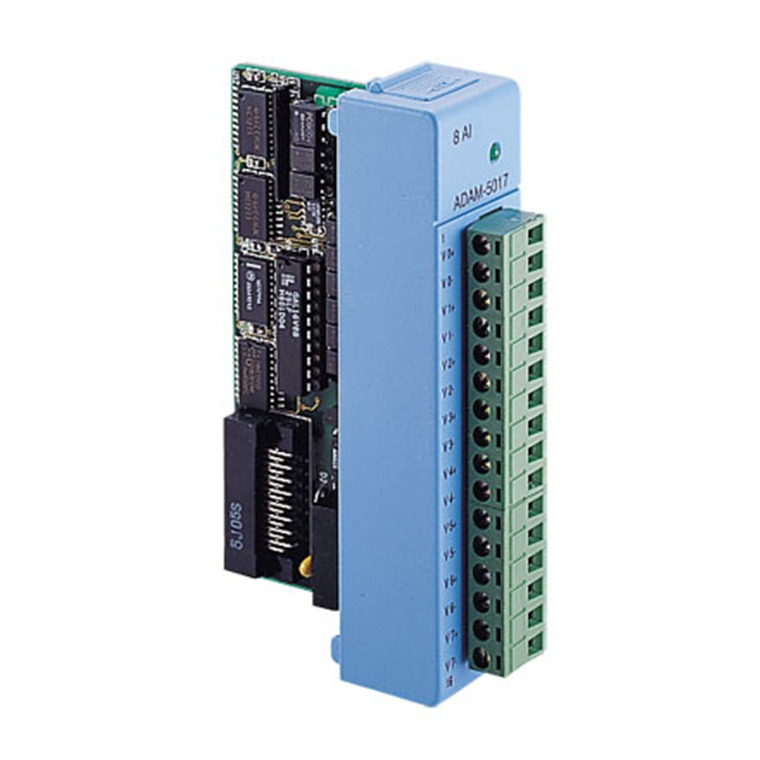

Advantech ADAM-5017-A4E 8-ch Analog Input Module

PB Tech price

NZD $ 310 .10

$ 310 .10

Advantech ADAM-5017-A4E 8-ch Analog Input Module

Brand: Advantech
MPN: ADAM-5017-A4E
Part #: IPCAVH220104
UPC:

PB Tech price

NZD $ 310 .10

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-5017-A4E
Part #: IPCAVH220104
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ADAM-5017

8-ch Analog Input Module

- Accuracy: ±0.1% or better
- Effective resolution: 16-bit
- Input range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V; ±20 mA
- Sampling rate: 10 samples/sec. (total)
- Isolation voltage: 3000 VDC
- Fault and overvoltage protection: withstands overvoltage up to ±35 V
- lnput type: mV, V, mA
- Channels: 8 differential

Specifications

General

Certification

CE, FM

Connectors

1 x Plug-in screw terminal (# 14 ~ 22 AWG)

Enclosure

ABS+PC

Power Consumption

1.25 W (max.)

Analog Input

Accuracy

Voltage mode: ±0.1% or better
Current mode: ±0.2% or better

Bandwidth

13.1 Hz @ 50 Hz
15.72 Hz @ 60 Hz

Channels

8 differential

CMR @ 50/60 Hz

92 dB min.

Input Impedance

Voltage: 2 M?
Current: 120? (Build-in 120 ? resistor for Current input)

lnput Range

±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V; ±20 mA

Resolution

16-bit

Sampling Rate

10 samples/sec. (total)

Span Drift

±25 PPM/°C

Zero Drift

±6 µV/°C

Protection

Isolation Voltage

3,000 VDC

Fault and Overvoltage Protection

Withstands overvoltage up to ±35 V

Note

The voltage difference between any two pins must not exceed ±15 V

Manufacturer Part No:

ADAM-5017-A4E

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220104

Product Model:

ADAM-5017-A4E

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
