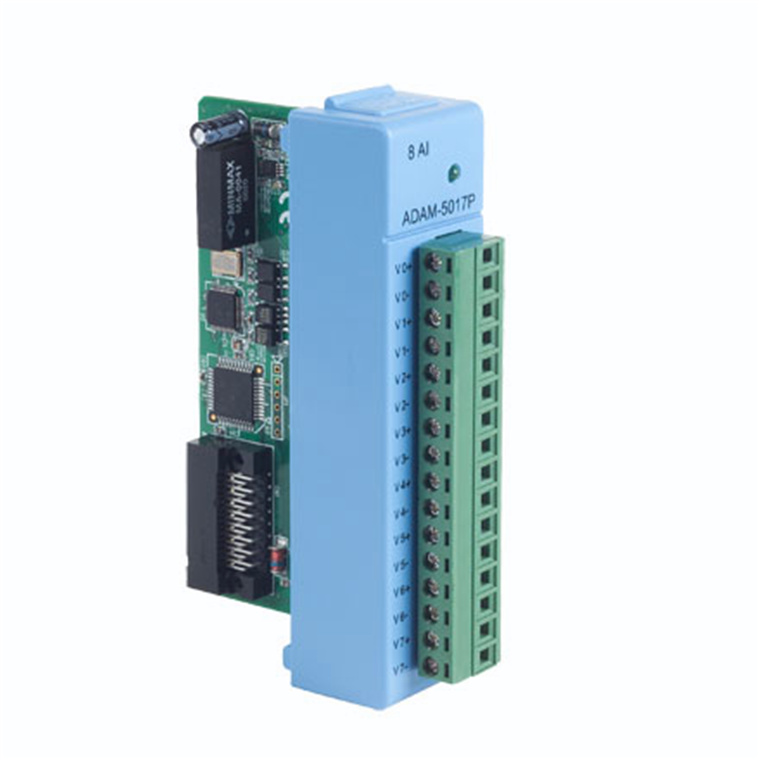

Advantech ADAM-5017P-AE 8-ch Analog Input Module with Independent Input Range
- Brand: Advantech
- MPN: ADAM-5017P-AE
- Part #: IPCAVH220106

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220106/Advantech-ADAM-5017P-AE-8-ch-Analog-Input-Module-w
Features
ADAM-5017P
8-ch Analog Input Module with Independent Input Range
- Accuracy: Voltage mode : ±0.1% or better, Current mode : ±0.2% or better
- High Common Mode: 200 VDC
- Over Voltage Protection: ±60 VDC
- Built-in TVS/ESD Protection
- Isolation Voltage: 3,000 VDC
- CMR @ 50/60 Hz: 92 dB min.
- Channels: 8 differential and independent configuration channels
- Input Impedance: Voltage: 800kO, Current: 120O (Build-in 120O. register for Current Input) for Curren
- lnput Type: mV, V (supports uni-polar and bipolar), mA
- Sampling Rate: 10 samples/sec
Specifications
General
Certification
CE, FCC Class A
Connectors
1 x Plug-in terminal block (#14 ~ 22 AWG)
Enclosure
ABS+PC
Power Consumption
1.25 W (max.)
Analog Input
Accuracy
Voltage mode : ±0.1% or better
Current mode : ±0.2% or better
Channels
8 (differential, each channel can be configured with different range)
CMR @ 50/60 Hz
92 dB min.
Input Impedance
Voltage: 800K ?
Current: 120 ? (Build-in 120 ?. resistor for Current Input)
lnput Range
0 ~ 150 mV, 0 ~ 500 mV, 0 ~ 1 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 15 V, ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±15 V, ±20 mA, 4 ~ 20 mA
Resolution
16-bit
Sampling Rate
10 samples/sec. (total)
Span Drift
±25 ppm/°C
Zero Drift
±6 µV/°C
High Common Mode
200 VDC
Protection
Other
Over Voltage Protection
Built-in TVS/ESD Protection
Isolation Voltage
3,000 VDC
Note
Does not support ADAM-5510KW series
