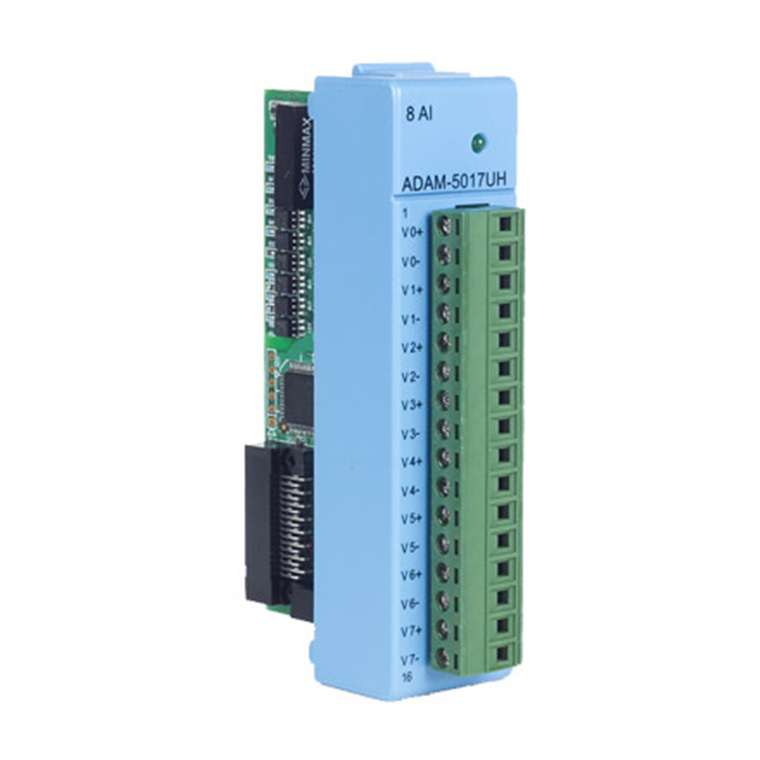

Advantech ADAM-5017UH-A1E 8-ch Ultra High Speed Analog Input Module
- Brand: Advantech
- MPN: ADAM-5017UH-A1E
- Part #: IPCAVH220107

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220107/Advantech-ADAM-5017UH-A1E-8-ch-Ultra-High-Speed-An
Features
ADAM-5017UH
8-ch Ultra High Speed Analog Input Module
- Accuracy: ±0.1% or better
- Effective resolution: 12-bit
- Input range: ±10 V, +0 ~ +10 V, +0 ~ +20 mA, +4 ~ +20 mA
- Isolation voltage: 3000 VDC
- Sampling rate: 50K sample per sec (8 Channels)
- Fault and overvoltage protection: withstands overvoltage up to ±35 V
- lnput type: mV, V, mA
- Channels: 8 differential
Specifications
General
Certification
CE
Connectors
1 x Plug-in screw terminal (# 14 ~ 22 AWG)
Enclosure
ABS+PC
Power Consumption
2.2 W (max.)
Analog Input
Accuracy
±0.1% or better
Bandwidth
200 kHz
Channels
8 differential
Differential Non-linear ±1 LSB
Differential Non-linear ±1 LSB
Input Impedance
Voltage: 2 M?
Current: 120 ? (Build-in)
Integral Non-linear
±1 LSB
Input Range
±10 V, +0 ~ 10 V, 0 ~ 20 mA, +4 ~ 20 mA
Low pass filter
Configured by User
Resolution
12-bit
Sampling Rate
Depends on base unit
ADAM-5000/485 & 5000E:
100 Samples/sec max (Total): one ADAM-5017UH installed
ADAM-5000/TCP & 5000L/TCP:
100 Samples/sec max (Total) :one ADAM-5017UH installed
ADAM-5510 :
200K Samples/sec max (Single Channel): one ADAM5017UH installed
ADAM-5550 & ADAM-5560:
1K Samples/sec max(single channel): one ADAM5017UH installed
*Depending on the performance of client server or controller
Signal Input Bandwidth
200 kHz for both voltage and current inputs
Protection
Isolation Voltage
3,000 VDC
Note:
1) The voltage difference between any two pins must not exceed 15 V
2) Distinct range settings allowed on each channel
Note: Not support ADAM-5510KW series
