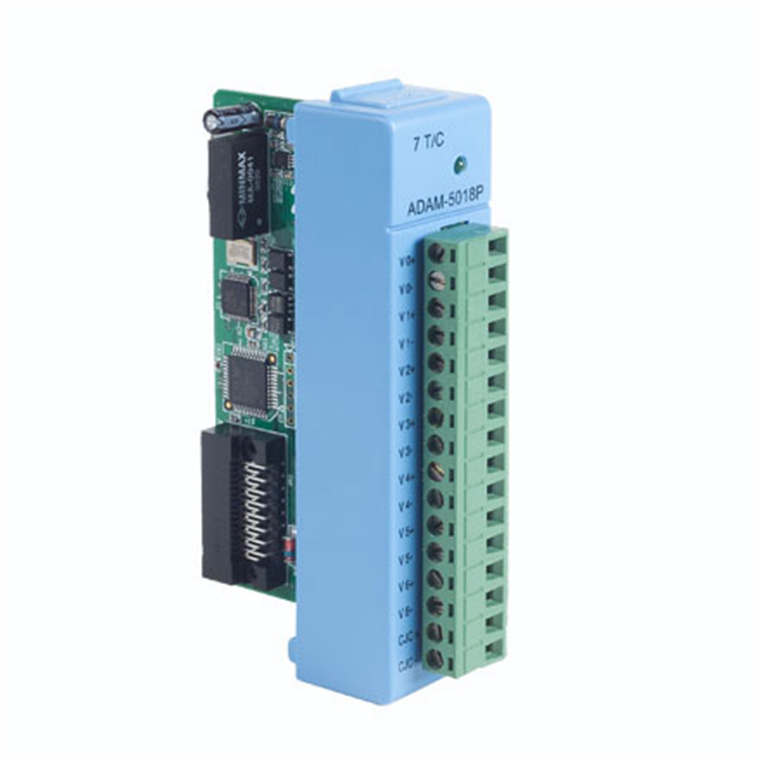

Advantech ADAM-5018P-AE 7-ch Thermocouple Input Module with Independent Input Range

PB Tech price

NZD $ 422 .20

$ 422 .20

Advantech ADAM-5018P-AE 7-ch Thermocouple Input Module with Independent Input Range

Brand: Advantech
MPN: ADAM-5018P-AE
Part #: IPCAVH220109
UPC:

PB Tech price

NZD $ 422 .20

In stock at Supplier

Delivery: Order now and it ships on 26 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-5018P-AE
Part #: IPCAVH220109
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ADAM-5018P

7-ch Thermocouple Input Module with Independent Input Range

- Accuracy Bandwidth: ±0.1% or better, 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
- Sampling Rate: 10 samples/sec. (total)
- High Common Mode: 2000 VDC
- Isolation Voltage: 3,000 VDC
- Fault and Overvoltage Protection: Withstands over voltage up to ±35 V
- CMR @ 50/60 Hz: 92 dB min
- Input Impedance: 20 MO. (Build-in 120 O Register for Current Input)
- Built-in TVS/ESD Protection
- Filter function: Yes
- Channels: 7 differential with Independent Input Range

Specifications

General

Certification

CE, FCC class A

Connectors

1 x Plug-in screw terminal (# 14 ~ 22 AWG)

Enclosure

ABS+PC

Power Consumption

0.63 W (max.)

Thermocouple Input

Accuracy

Voltage mode: ±0.1% or better
Current mode: ±0.2% or better

Bandwidth

13.1 Hz @ 50 Hz
15.72 Hz @ 60 Hz

Channels

7 (differential, each channel can be configured with different range)

CMR @ 50/60 Hz

92 dB min

Input Impedance

20 M?. (Build-in 120 ? Register for Current Input)

lnput Range and Types

Thermocouple
J 0 ~ 760°C
K 0 ~ 1,370°C
T -100 ~ 400°C
E 0 ~ 1,000°C
R 500 ~ 1,750°C
S 500 ~ 1,750°C
B 500 ~ 1,800°C

Current ±20 mA, 4 ~ 20 mA
Voltage ±15 mV (0.2%), ±50 mV, ±100 mV, ±500 mV ±1 V, ±2.5 V

Resolution

16-bit

Sampling Rate

10 samples/sec. (total)

Span Drift

±25 PPM/°C

Zero Drift

±6 µV/°C

High Common Mode

200 VDC

Protection

Fault and Overvoltage Protection

Withstands overvoltage up to ±35 V

Isolation Voltage

3,000 VDC

Filter function

Yes

Built-in TVS/ESD Protection

Note

Not support ADAM-5510KW series

Manufacturer Part No:

ADAM-5018P-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220109

Product Model:

ADAM-5018P-AE

Warranty: 12 months *
