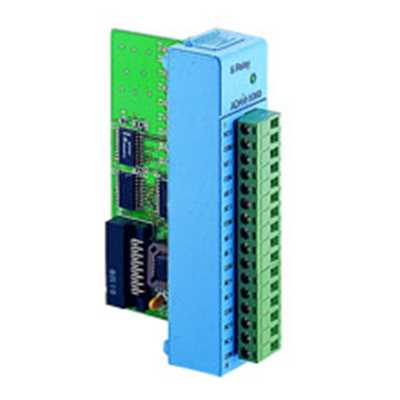

Advantech ADAM-5060-AE 6-ch Relay Output Module
- Brand: Advantech
- MPN: ADAM-5060-AE
- Part #: IPCAVH220126

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220126/Advantech-ADAM-5060-AE-6-ch-Relay-Output-Module
Features
ADAM-5060-AE
- Contact rating: AC: 125 V @ 0.6 A; 250 V @ 0.3 A
- Insulation resistance: 1000 MW minimum at 500 VDC
- Channels:2 x form A , 4 x form C
- Breakdown voltage: 500 VAC (50/60 Hz)
- Total switching time: 10 msec.
- Relay off time (typical): 1 msec.
- Relay on time (typical): 3 msec.
Specifications
General
Certification
CE
Connectors
1 x Plug-in screw terminal (# 14 ~ 22 AWG)
Enclosure
ABS+PC
Power Consumption
1.8 W (max.)
Relay Output
Breakdown Voltage
500 VAC (50/60 Hz)
Channels
2 x form A , 4 x form C
Contact Rating
AC: 125 V @ 0.6 A
250 V @ 0.3 A
DC: 30 V @ 2 A
110 V @ 0.6 A
Insulation Resistance
1 G? min. @ 500 VDC
Relay Off Time (typical)
2 ms
Relay On Time (typical)
3 ms
Total Switching Time
10 ms
