Advantech ADAM-5630-AE 4-slot Edge Intelligent DAQ controller
- Brand: Advantech
- MPN: ADAM-5630-AE
- Part #: IPCAVH220137

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220137/Advantech-ADAM-5630-AE-4-slot-Edge-Intelligent-DAQ
Features

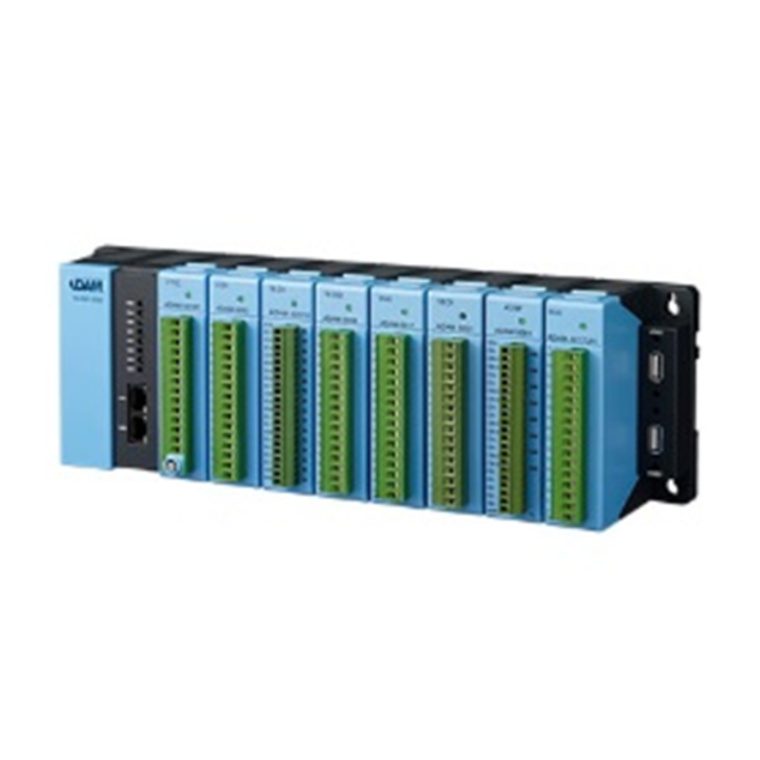

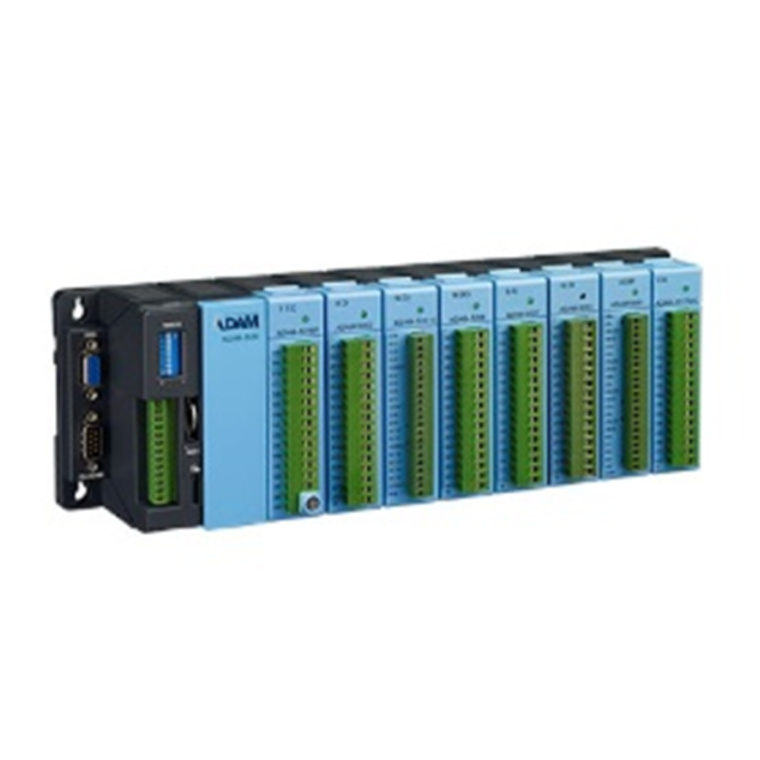

ADAM-5630
8-slot Edge Intelligent DAQ controller
- Linux C programming based on Linux operating system
- Built-in real-time clock and watchdog timer
- 4 serial communication ports onboard
- 2 Ethernet Ports
- 4 or 8 I/O slot expansion
- 1 micro SD slot expansion for data storage
Specifications
Control System
CPU
TI Cortex-A8 AM3352 600MHz
Memory
512MB, DDR3L
Battery memory
128K
RTC (Real Time Clock)
Provide second, minute, hour, date, day of week, month, year
OS
RT-Linux V3.12
Storage
1 x 1GB NAND Flash (system)
1 x Mirco-SD (Storage)
Programming
Linux C
Watch dog
Yes
I/O Slot
Optional 8 or 4 slots
LED Indicators
PWR,RUN,ERR,BAT,LED1/2/3/4
Display
VGA, Resolution 800 x 600
USB
2 x USB 2.0
Serial Communication
Max. Nodes
256 (in RS-485 daisy-chain network)
Distance
1.2Km (4,000feet in RS-485 mode)
Speed
50-115200 bps
Isolation
2500 VDC (COM1,2,3 only)
Connector
COM1: Screw terminal (2-PIN RS-232/485)
COM2: Screw terminal (RS-485)
COM3: Screw terminal (RS-485)
COM4: DB9-M (RS-232/485)
Ethernet Communication
Connector
2 x RJ45
Distance
100 m
Speed
10/100/1000 Mbps
System Software
Embedded Service
Web Server, FTP Sever, Telnet Server, SSH Server,
SNMP Server
SDK Provided
Standard SDK by Linux C
Power Consumption
Power Consumption
8W
Power input
10 ~ 30 VDC
Reverse Protection
Yes
General
Certification
CE,FCC Class A (No RED certification)
Dimensions
4-slots 231 x 110 x 75 mm
8-slots 355 x 110 x 75 mm
Enclosure
ABS-PC
Mounting
DIN-Rail, Wall-Mount
Environment
Humidity
5 ~ 95% non-condensing
Operating Temperature
-40 ~ 70°C
Storing Temperature
-40 ~ 85°C
