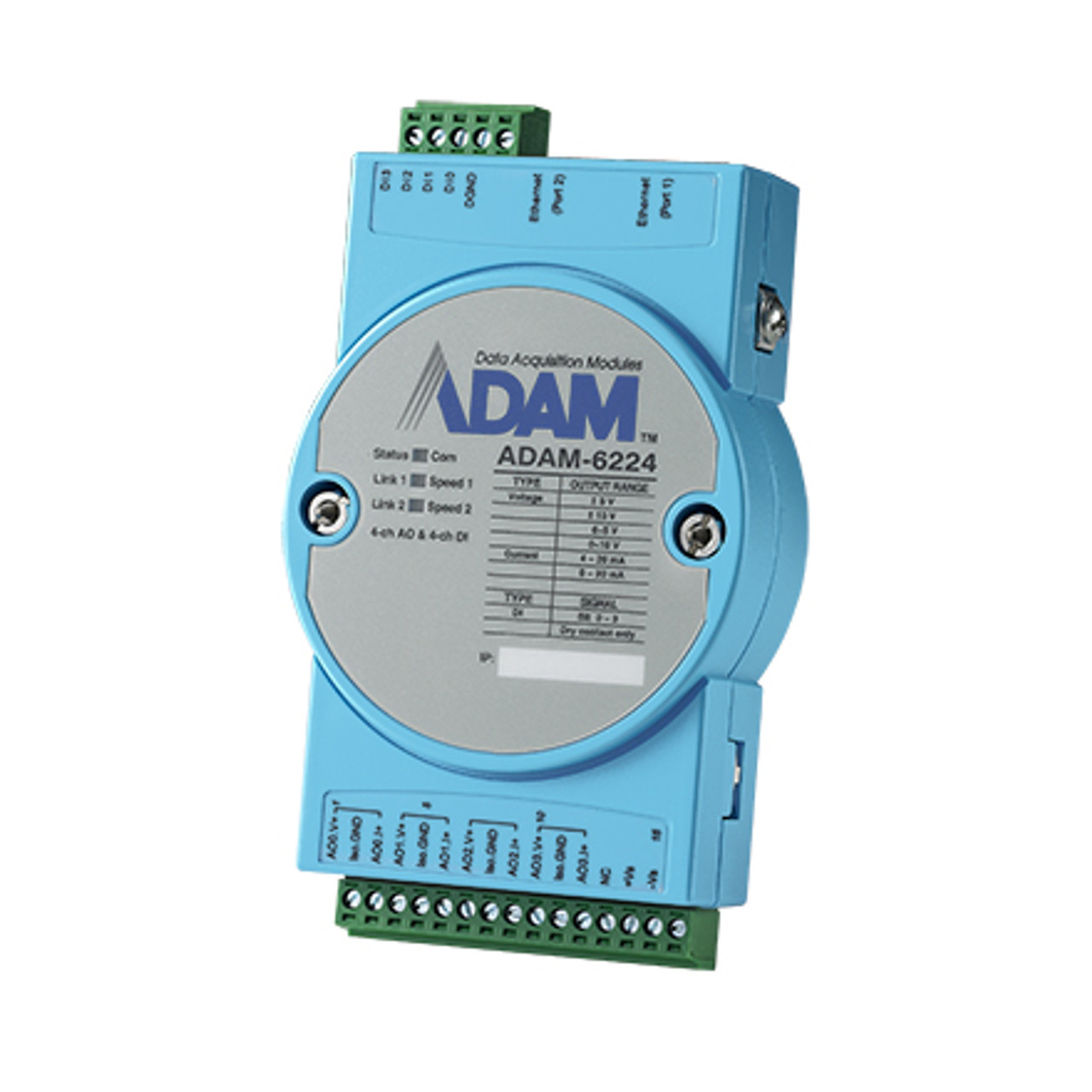

Advantech ADAM-6224-B 4AO/4DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O
- Brand: Advantech
- MPN: ADAM-6224-B
- Part #: IPCAVH220155

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220155/Advantech-ADAM-6224-B-4AO4DI-IoT-ModbusSNMPMQTT-2P
Features
4AO/4DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O
- 4ch analog output/4ch digital input
- Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
- GCL to perform basic logic control rules
- Cloud access: Data update to Azure
- Auto-bypass function to ensure daisy-chain data transmission
- Peer-to-Peer function to map I/O status
- Built-in web server
- Watchdog timer to recover the system
Specifications
Analog Output
Channels
4
Output Ranges
0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA
Output Type
V, mA
Resolution
12-bit
Communications
Interface
Ethernet
Digital Input
Channels
4
Input Voltage
Dry Contact
Logic level 1: close to GND
Logic level 0: open
Environment
Isolation Voltage
2,500 VDC
Operating Temperature
-40~70 °C (-40~158 °F)
General
Connectors
2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Power Requirements
Input Voltage
10~30 VDC
