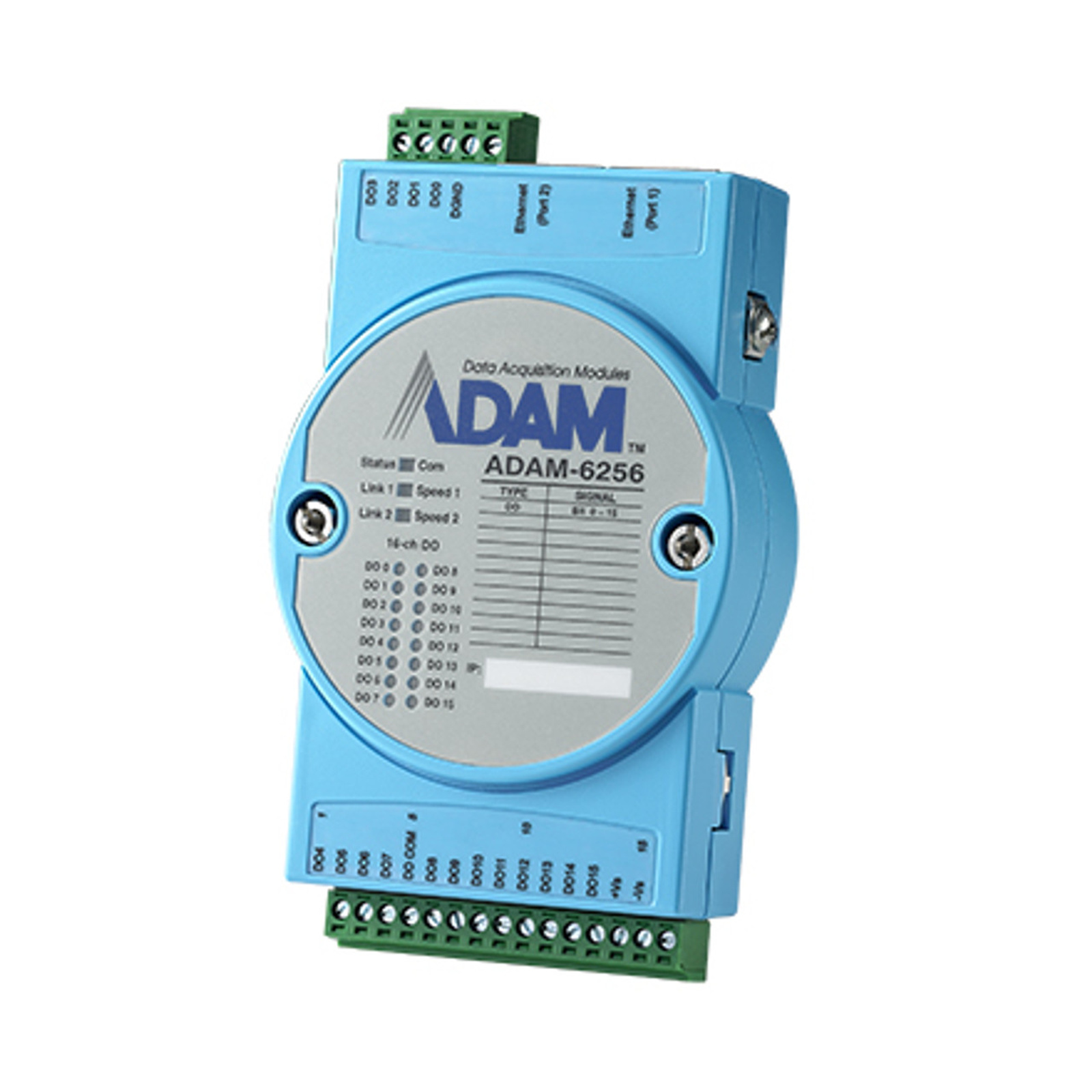

Advantech ADAM-6256-B 16DO IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O
- Brand: Advantech
- MPN: ADAM-6256-B
- Part #: IPCAVH220161

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220161/Advantech-ADAM-6256-B-16DO-IoT-ModbusSNMPMQTT-2Por
Features
16DO IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O
- 16ch digital output(pulse output)
- Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
- GCL to perform basic logic control rules
- Cloud access: Data update to Azure
- Auto-bypass function to ensure daisy-chain data transmission
- Peer-to-Peer function to map I/O status
- Built-in web server
- Watchdog timer to recover the system
Specifications
Communications
Interface
Ethernet
Environment
Isolation Voltage
2,500 VDC
Operating Temperature
-40~70 °C (-40~158 °F)
General
Connectors
2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Isolated Digital Output
Channels
16
Output Type
Sink
Output Voltage
10~30 VDC
Sink Current
100 mA max./channel
Power Requirements
Input Voltage
10~30 VDC
