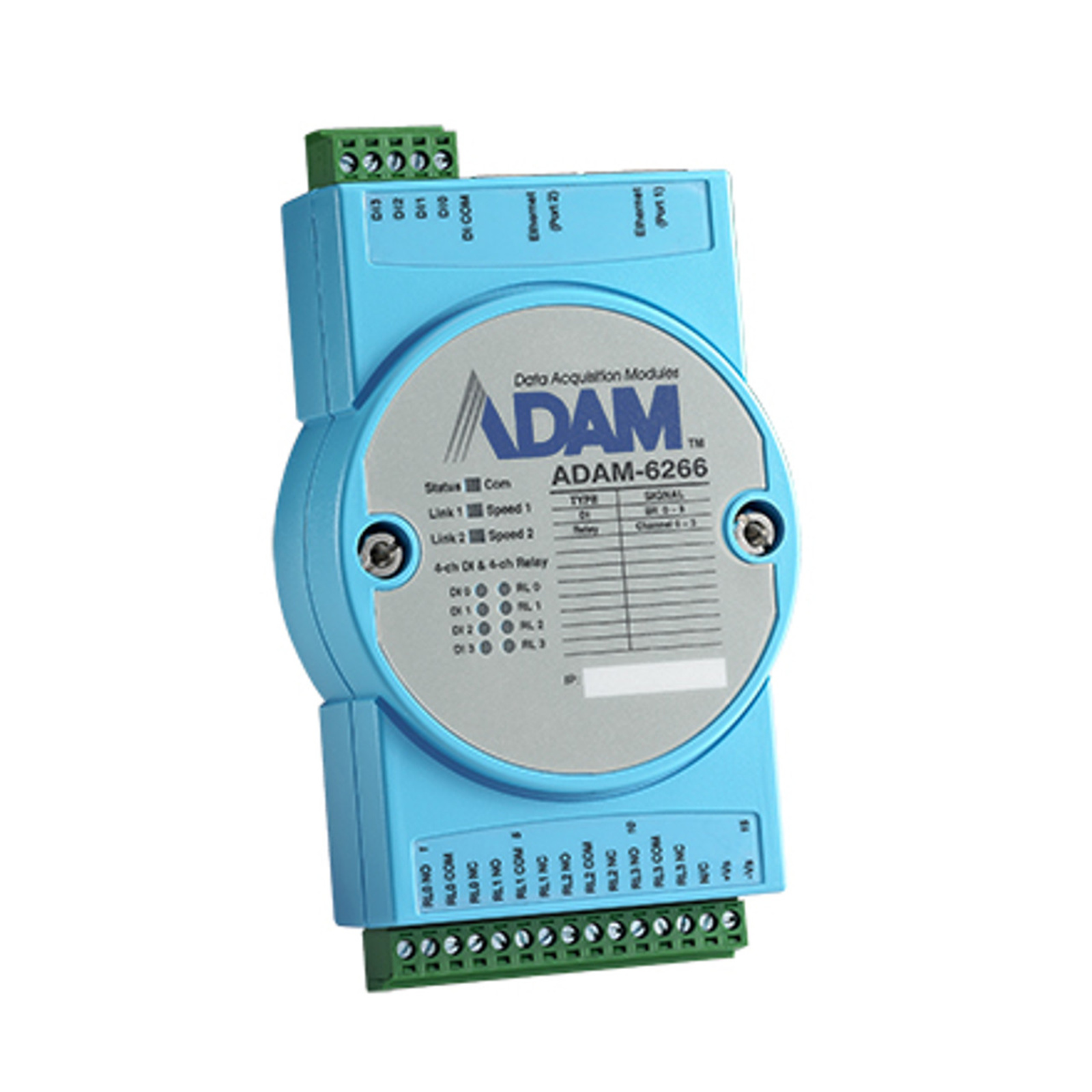

Advantech ADAM-6266-B 4Relay/4DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O
- Brand: Advantech
- MPN: ADAM-6266-B
- Part #: IPCAVH220165

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220165/Advantech-ADAM-6266-B-4Relay4DI-IoT-ModbusSNMPMQTT
Features
4Relay/4DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O
- 4ch relay/4ch digital input(counter)
- Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
- GCL to perform basic logic control rules
- Cloud access: Data update to Azure
- Auto-bypass function to ensure daisy-chain data transmission
- Peer-to-Peer function to map I/O status
- Built-in web server
- Watchdog timer to recover the system
Specifications
Communications
Interface
Ethernet
Environment
Isolation Voltage
2,500 VDC
Operating Temperature
-40~70 °C (-40~158 °F)
General
Connectors
2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Isolated Digital Input
Channels
4
Input Voltage
Dry Contact
Logic level 1: close to DI COM
Logic level 0: open
Wet Contact
Logic level 1: 10~30 VDC and -10~-30 VDC
Logic level 0: -3~3 VDC
Power Requirements
Input Voltage
10~30 VDC
Relay Output
Channels
4
Contact Rating (Resistive)
5 A @ 30 VDC, 5 A @ 250 VAC
Relay Type
1 x Form C
Counter/Encoder Input
Max. Input Frequency
3 kHz
Channels
4
