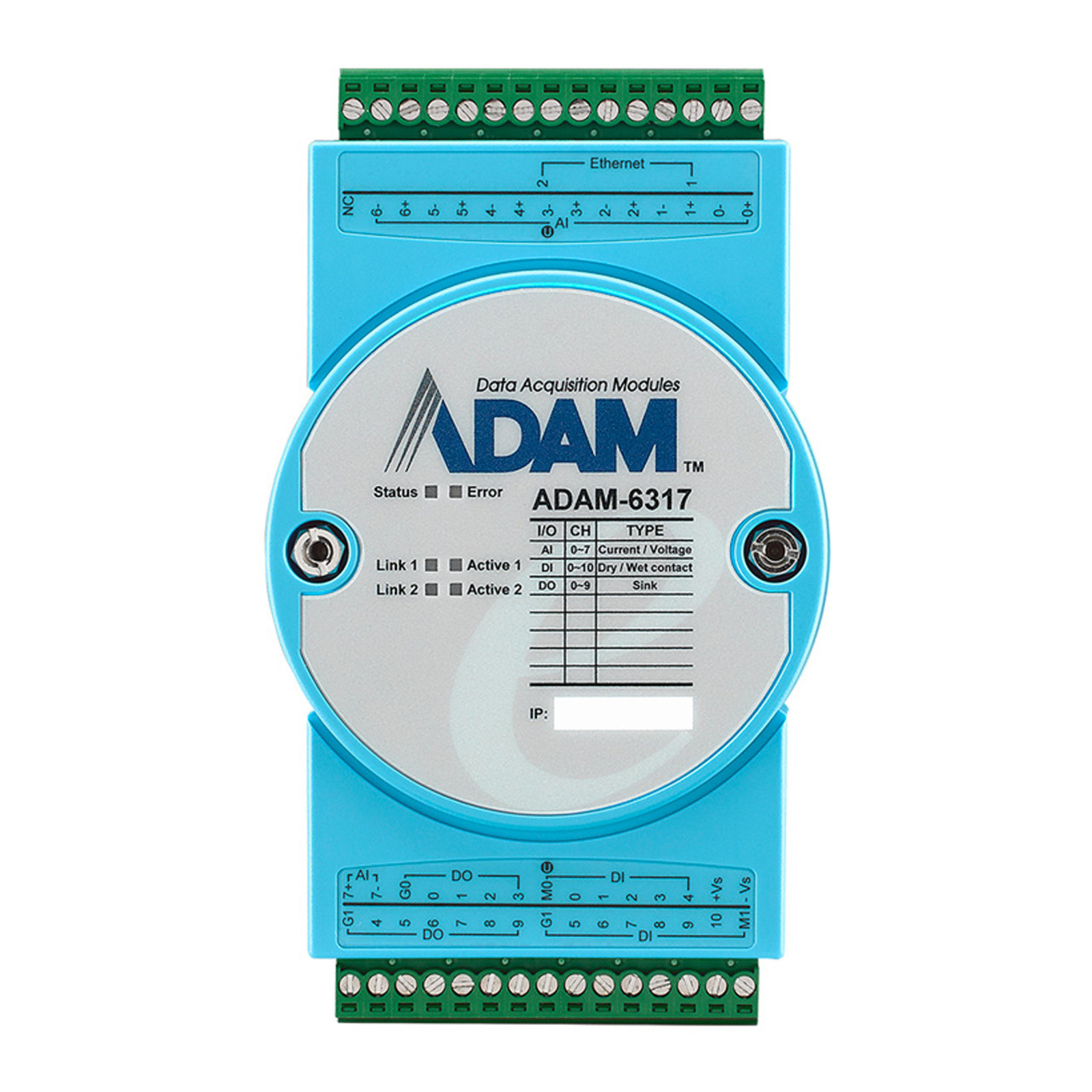

Advantech ADAM-6317-A1 8AI/11DI/10DO IoT Modbus/OPC UA Ethernet Remote I/O
Advantech ADAM-6317-A1 8AI/11DI/10DO IoT Modbus/OPC UA Ethernet Remote I/O
- Brand: Advantech
- MPN: ADAM-6317-A1
- Part #: IPCAVH220166
- UPC:
- Brand: Advantech
- MPN: ADAM-6317-A1
- Part #: IPCAVH220166
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech ADAM-6317-A1 8AI/11DI/10DO IoT Modbus/OPC UA Ethernet Remote I/O
- Brand: Advantech
- MPN: ADAM-6317-A1
- Part #: IPCAVH220166

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220166/Advantech-ADAM-6317-A1-8AI11DI10DO-IoT-ModbusOPC-U
Features
8AI/11DI/10DO IoT Modbus/OPC UA Ethernet Remote I/O
- OPC UA empowers Modbus I/O users to access the industrial IoT world
- OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
- Hardware and software double security levels to prevent being hacked
- Cost-effective: high I/O density and daisy-chaining solution saves cost
Specifications
Isolated Digital Input
Channels
11
Input Voltage
Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Isolation Protection
2,500 VDC
Isolated Digital Output
Channels
10
Isolation Protection
2,500 VDC
Output Type
Sink
Sink Current
100 mA max./channel
Counter/Encoder Input
Max. Input Frequency
3 kHz
Channels
6
