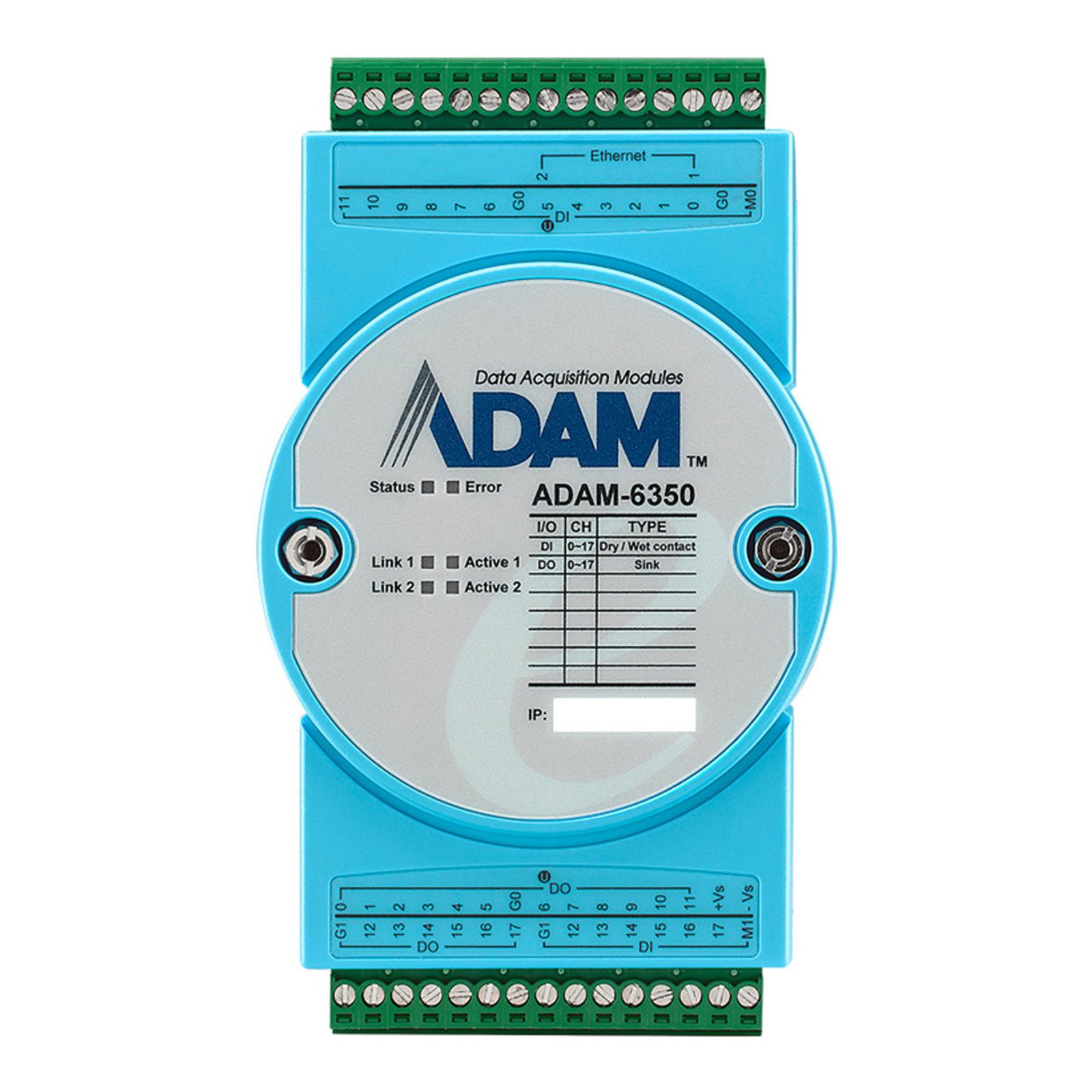

Advantech ADAM-6350-A1 18DI/18DO IoT Modbus/OPC UA Ethernet Remote I/O
- Brand: Advantech
- MPN: ADAM-6350-A1
- Part #: IPCAVH220167

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220167/Advantech-ADAM-6350-A1-18DI18DO-IoT-ModbusOPC-UA-E
Features
18DI/18DO IoT Modbus/OPC UA Ethernet Remote I/O
- OPC UA empowers Modbus I/O users to access the industrial IoT world
- OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
- Hardware and software double security levels to prevent being hacked
- Cost-effective: high I/O density and daisy-chaining solution saves cost
Specifications
Isolated Digital Input
Channels
18
Input Voltage
Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Isolation Protection
2,500 VDC
Isolated Digital Output
Channels
18
Isolation Protection
2,500 VDC
Output Type
Sink
Sink Current
100 mA max./channel
Counter/Encoder Input
Max. Input Frequency
3 kHz
Channels
6
