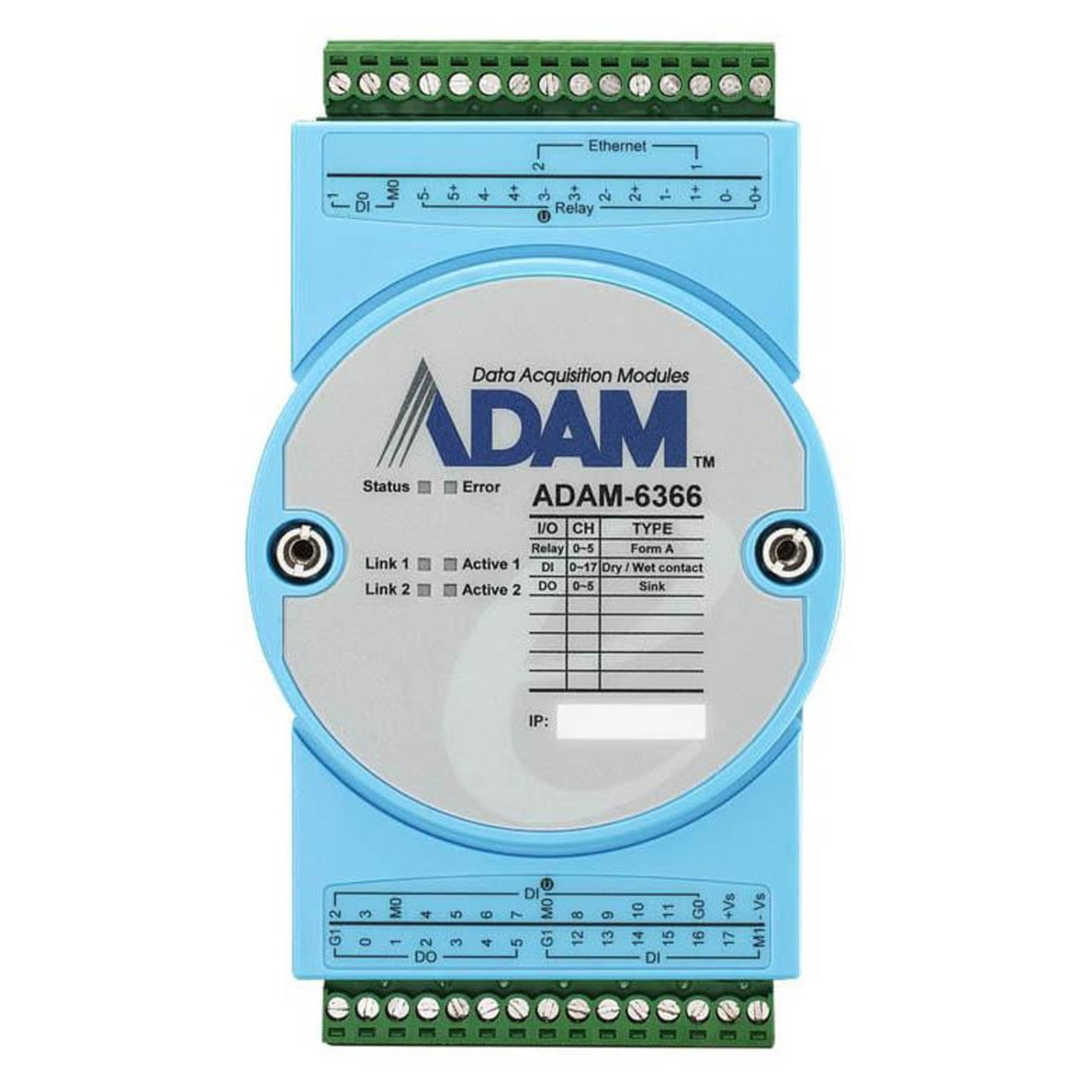

Advantech ADAM-6366-A1 6 Relay/18DI/6DO IoT Modbus/OPC UA Ethernet Remote I/O
Advantech ADAM-6366-A1 6 Relay/18DI/6DO IoT Modbus/OPC UA Ethernet Remote I/O
- Brand: Advantech
- MPN: ADAM-6366-A1
- Part #: IPCAVH220169
- UPC:
- Brand: Advantech
- MPN: ADAM-6366-A1
- Part #: IPCAVH220169
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech ADAM-6366-A1 6 Relay/18DI/6DO IoT Modbus/OPC UA Ethernet Remote I/O
- Brand: Advantech
- MPN: ADAM-6366-A1
- Part #: IPCAVH220169

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220169/Advantech-ADAM-6366-A1-6-Relay18DI6DO-IoT-ModbusOP
Features
6 Relay/18DI/6DO IoT Modbus/OPC UA Ethernet Remote I/O
- OPC UA empowers Modbus I/O users to access the industrial IoT world
- OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
- Hardware and software double security levels to prevent being hacked
- Cost-effective: high I/O density and daisy-chaining solution save cost
Specifications
Relay Output
Channels
6 Form A
Contact Rating (Resistive)
2 A @ 30 VDC, 0.25 A @ 250 VAC
Environment
Operating Temperature
-25~70 °C (-13~158 °F)
Storage Temperature
-25~85 °C (-13~185 °F)
Isolated Digital Input
Channels
18
Input Voltage
Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Isolation Protection
2,500 VDC
Isolated Digital Output
Channels
6
Isolation Protection
2,500 VDC
Output Type
Sink
Sink Current
100 mA max./channel
Communications
Interface
Ethernet
Hardware
Power Input
10~30 VDC
General
Protocol
OPC UA Server
Counter/Encoder Input
Max. Input Frequency
3 kHz
Channels
6
