Advantech ADAM-6541-AE Media Converter, 100Mbps, Multimode 1310nm, 2km, SC

PB Tech price

NZD $ 312 .36

$ 312 .36

Advantech ADAM-6541-AE Media Converter, 100Mbps, Multimode 1310nm, 2km, SC

Brand: Advantech
MPN: ADAM-6541-AE
Part #: IPCAVH220176
UPC:

PB Tech price

NZD $ 312 .36

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-6541-AE
Part #: IPCAVH220176
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Media Converter, 100Mbps, Multimode 1310nm, 2km, SC

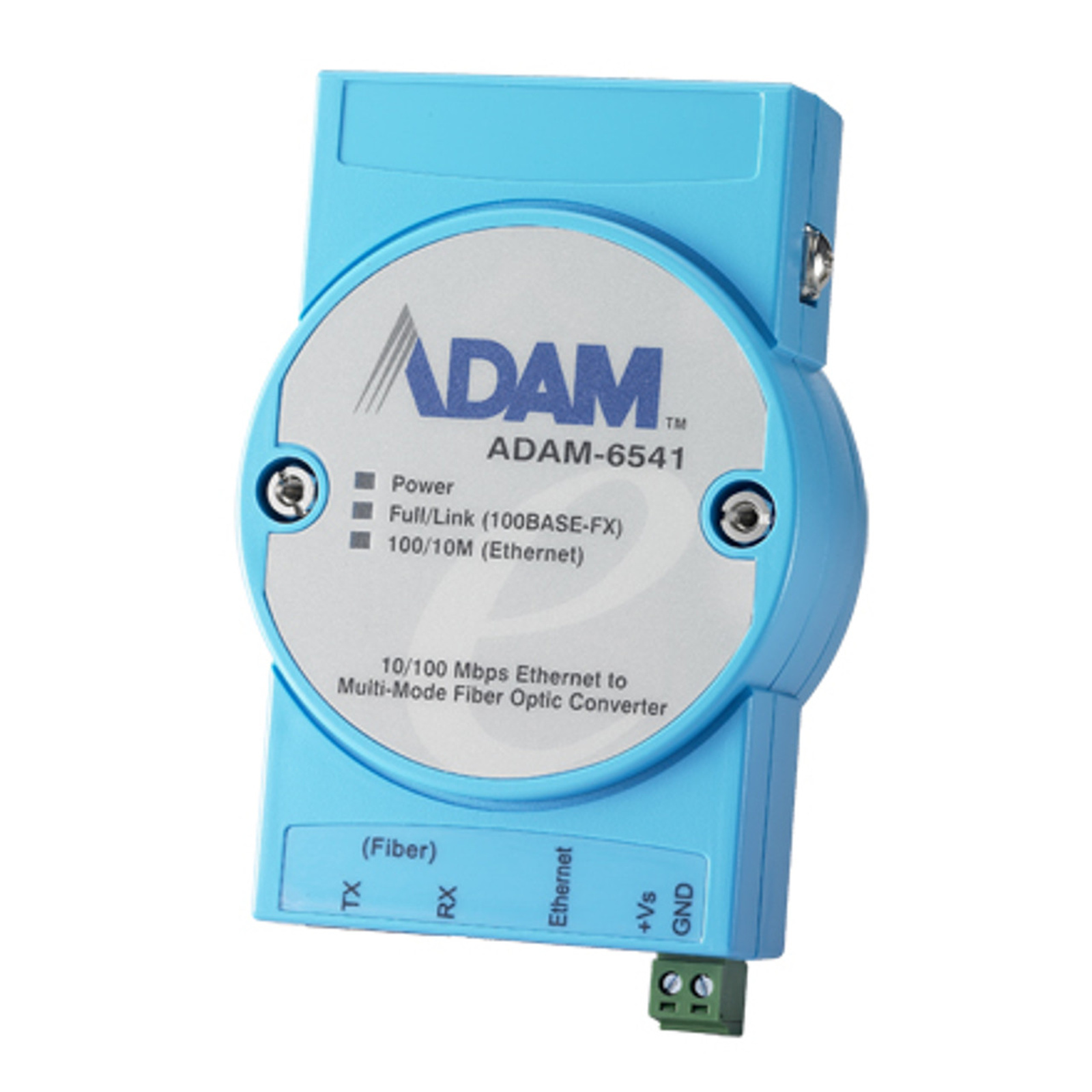

ADAM-6541 is designed to convert Ethernet networks to fiber networks. It does so by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmission capability. Therefore, ADAM-6541 is an ideal solution for "fiber to building" applications at central offices or local sites.

ADAM-6541 supports MDI/MDIX auto detection, so you don't need to use crossover wires. It also includes a switch controller that can sense the transmission speed (10/100 Mbps) automatically.Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data can be transmitted properly.

ADAM-6541 is extremely compact and can be mounted in three different ways: DIN-rail, Wall and Stack. ADAM-6541 can work normally from 0 ~ 60°C and accepts a wide voltage range from +10 ~ 30 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.

- Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
- Provides 1 x 100 Mbps Multi-mode fiber optic port
- Supports full/half duplex flow control and internal jumper for setting
- Supports store and forward transmission
- Supports auto-negotiation
- Supports MDI/MDI-X auto crossover
- Provides surge protection (EFT) 3,000 VDC for power line
- Provides 4,000 VDC Ethernet ESD protection
- Supports +10 ~ 30 VDC power input
- Provides flexible mounting : DIN-rail, Panel Mounting, Piggy-back
- Supports operating temperature from 0 ~ 60°C

Specifications

Certification

EMC

U.S.A.: FCC Part 15 CISPR 22, EU: EN55011, EN61000-6-4, EN55022 Class A, EN61000-3-2/3, EN55024, IEC61000-4-2/3/4/5/6/8/11, EN61000-6-2

Safety

UL 60950-1, CAN/CSA-C22.2 No.60950

Ethernet Standard

IEEE 802.3, 802.3u, 802.3x

Environment

Operating Humidity

20~95% (non-condensing)

Storage Temperature

-10 ~ 70°C (-14 ~ 158°F)

Mechanism

Dimensions (W x H x D)

70 x 112 x 27 mm

Enclosure (Metal)

IP30, ABS+PC with solid mounting kits

Mounting

DIN 35 rail, Wall, Stack

Power

Power Consumption

Max. 3W

Power Input (DC)

1 x Unregulated 10 ~ 30 VDC

Manufacturer Part No:

ADAM-6541-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220176

Product Model:

ADAM-6541-AE

Warranty: 12 months *
