Advantech BB-232OPDRI ULI-232DC - Serial Repeater, RS-232, DB9, Isolated, Ind. DIN, C1D2
Advantech BB-232OPDRI ULI-232DC - Serial Repeater, RS-232, DB9, Isolated, Ind. DIN, C1D2
- Brand: Advantech
- MPN: BB-232OPDRI
- Part #: IPCAVH220224
- UPC:
- Brand: Advantech
- MPN: BB-232OPDRI
- Part #: IPCAVH220224
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech BB-232OPDRI ULI-232DC - Serial Repeater, RS-232, DB9, Isolated, Ind. DIN, C1D2
- Brand: Advantech
- MPN: BB-232OPDRI
- Part #: IPCAVH220224

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220224/Advantech-BB-232OPDRI-ULI-232DC---Serial-Repeater
Features

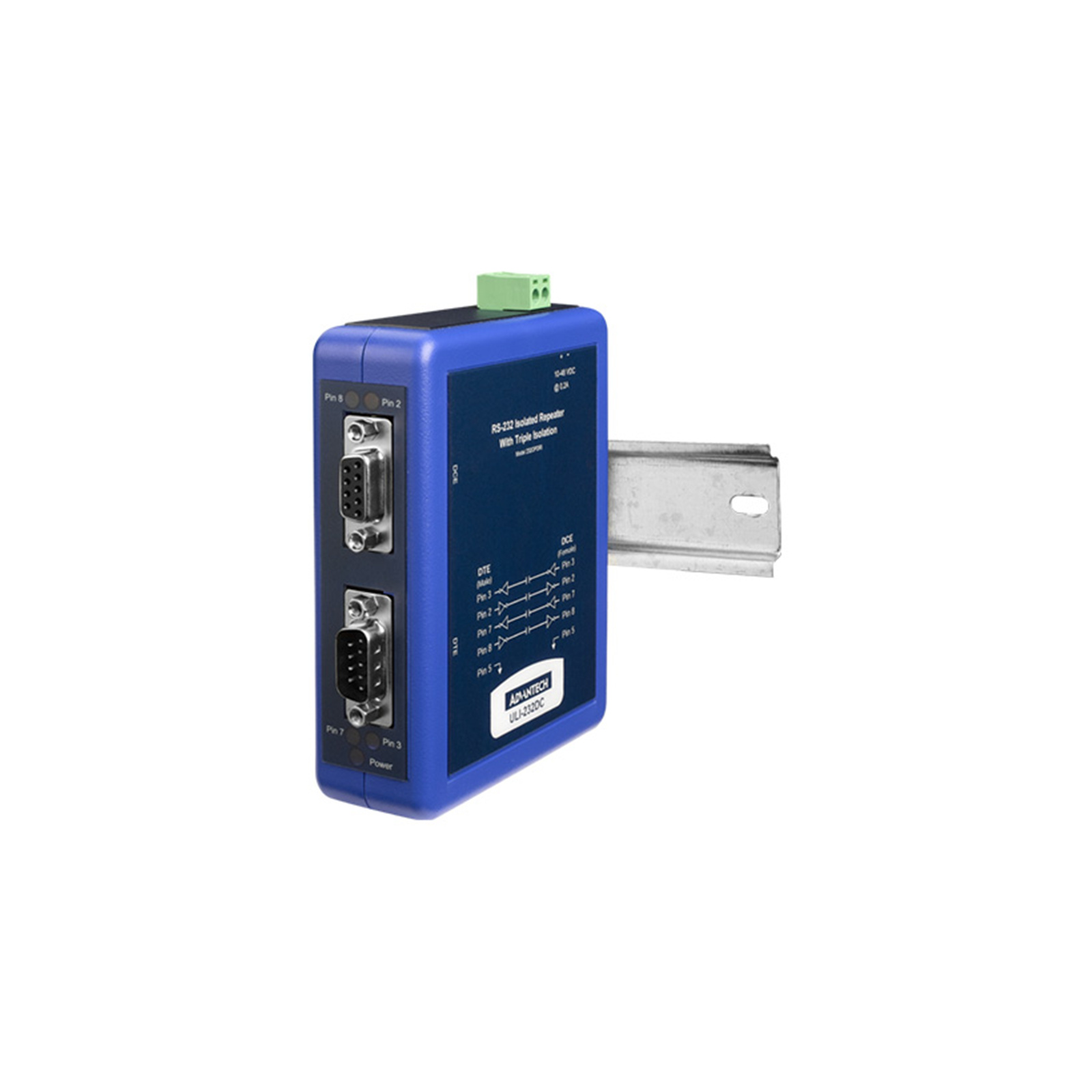

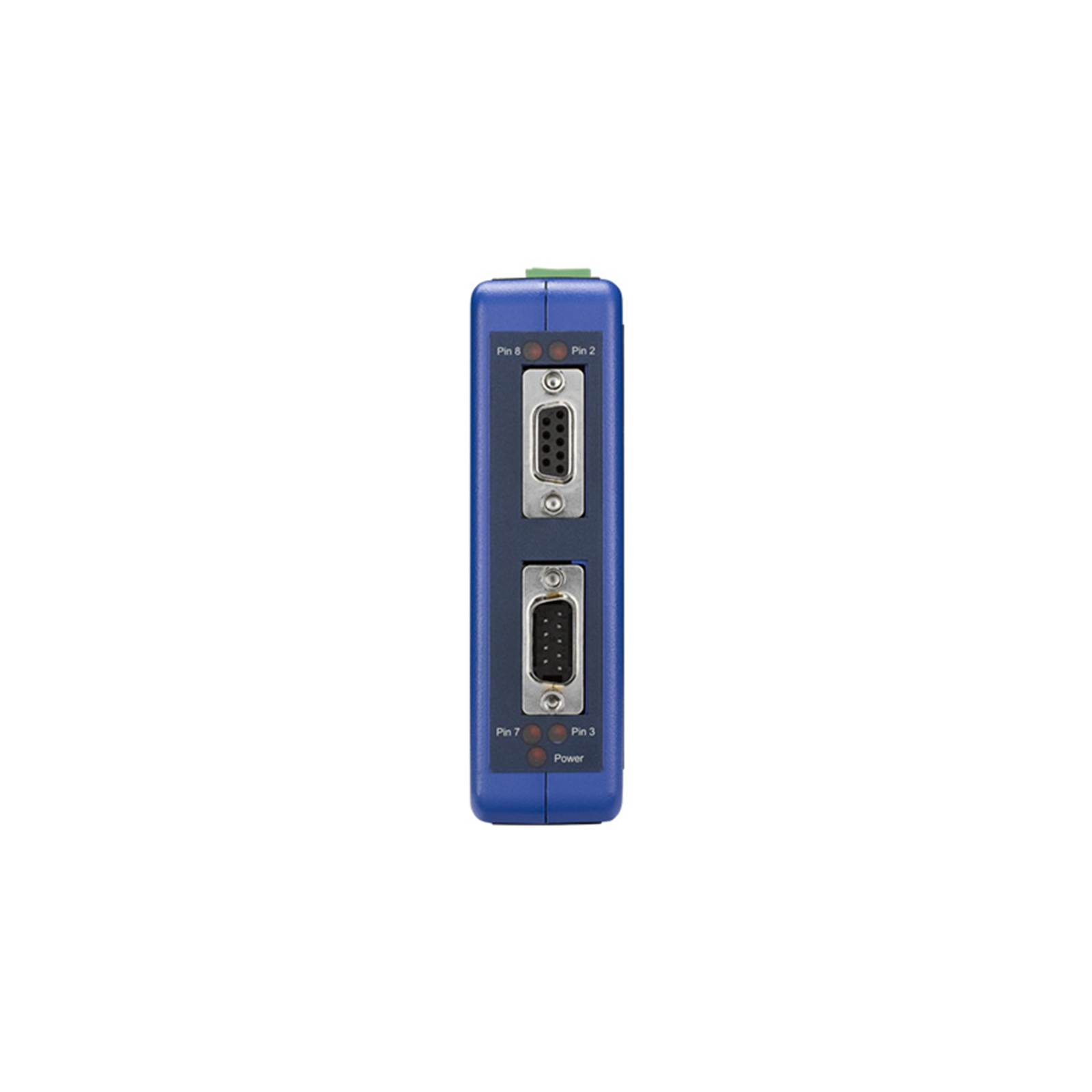

ULI-232DC - 3-Way Isolated RS-232 (DB9 Male / Female) DIN Rail Repeater
- Extend and isolate RS-232 data another 15.2 m
- 2kV 3-way optical isolation
- Data rates up to 115.2 kbps
- -40 to +80 °C wide operating temperature
- DB9 M / DB9 F, IP30, DIN rail mount
- 10-48 Vdc power input (power supply required, not included, sold separately)
Specifications
General
Technology
Serial
Mounting
DIN
Power
10-48VDC
Temperature
-40 to 80C
Isolation
2kV
Power and Data Isolated
Yes
Serial Type
RS-232
Serial Communication
Serial Standard
RS-232
Maximum Serial Transmission Speed
115.2 Kbps
Serial Port Connector Type
DB9
Serial Port Number
1
Repeater Maximum Distance
15 Meters
Environment
Operating Temperature
-40 ~ 80°C (-40 ~ 176°F)
Protection
ESD Protection
8 kV (Air)
Isolation
2,000 VDC
Certification
Safety
UL C1/D2 (Class I, Division 2)
Power
Power Input (DC)
10 ~ 48 VDC
Accessory General
Mounting
DIN
Mechanism
Enclosure (Metal)
Metal
