Advantech BB-485OP ULI-234TCL - RS-422/485 (Terminal Block) Isolator
- Brand: Advantech
- MPN: BB-485OP
- Part #: IPCAVH220246

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220246/Advantech-BB-485OP-ULI-234TCL---RS-422485-Terminal
Features
ULI-234TCL - RS-422/485 (Terminal Block) Isolator
- Device and data 2 kV optical isolation and 1.2 km (4000 ft) extension
- Add up to 32 nodes to RS-485 network
- Inline installation
- External 12 Vdc power source required (included)
- Modbus support

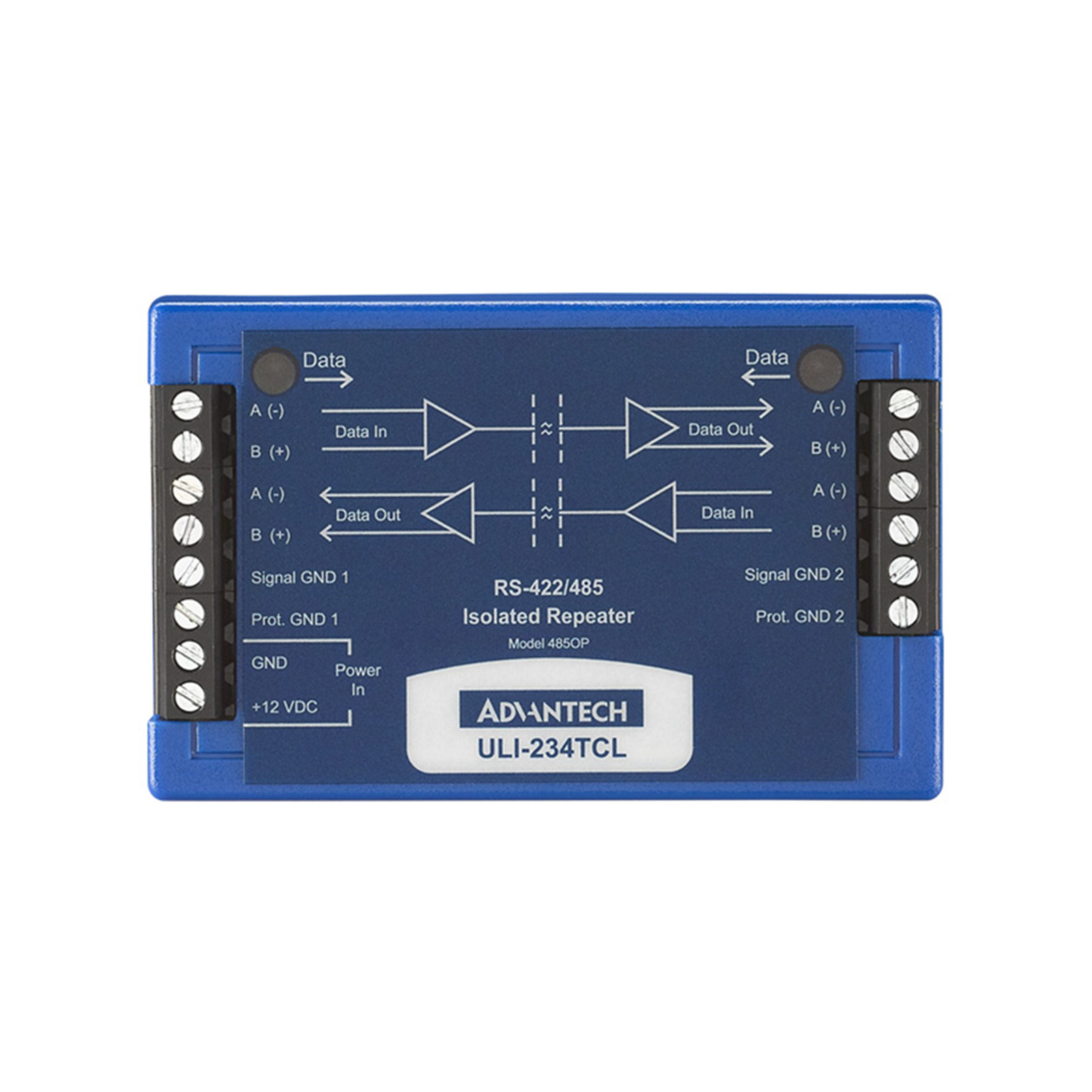

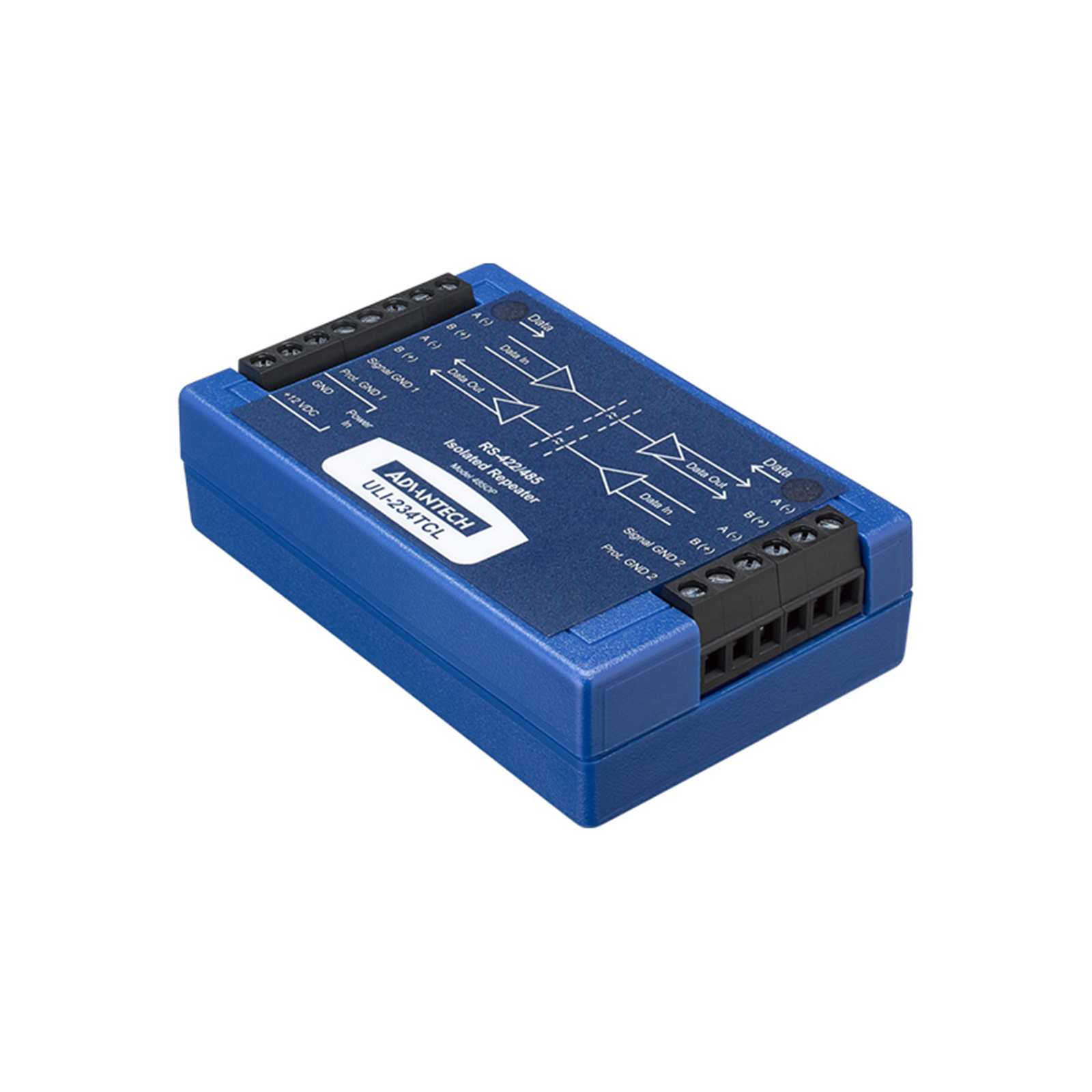

Model ULI-234TCL is an RS-422/485 signal repeater with 2 kV optical isolation on data lines and terminal blocks for RS-422, RS-485 2 or 4-wire modes. It extends RS- 422/485 an additional 1.2 km to double the communication range. Another benefit is the ability to add another 32 nodes to an RS-485 network and join 2 and 4 wire systems. Its compact design fits almost anywhere. Wiring schematic on the label eliminates guesswork. 12 Vdc PSU is required and included with USA, EU, UK, AU, UP and CN blades.
Specifications
General
Technology
Serial
Mounting
Inline
Power
10-14VDC
Temperature
0 to 40C
Isolation
2kV
Serial Type
RS-422/4853
Serial Communication
Serial Standard
RS-422 / RS-485
Maximum Serial Transmission Speed
115.2 Kbps
Serial Port Connector Type
Terminal block
Serial Port Number
1
Repeater Maximum Distance
1.2 Kilometers
Environment
Operating Temperature
0 ~ 40°C (32 ~ 104°F)
Protection
Isolation
2,000 VDC
Surge Protection
600W
Power
Power Input (DC)
10 - 14 VDC
Accessory General
Mounting
Inline
