Advantech BB-FOSTCDRI-ST ULI-212CI -Triple Isolated RS-232/422/485 (TB) to Single Mode Fiber Converter (ST)
- Brand: Advantech
- MPN: BB-FOSTCDRI-ST
- Part #: IPCAVH220303

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220303/Advantech-BB-FOSTCDRI-ST-ULI-212CI--Triple-Isolate
Features

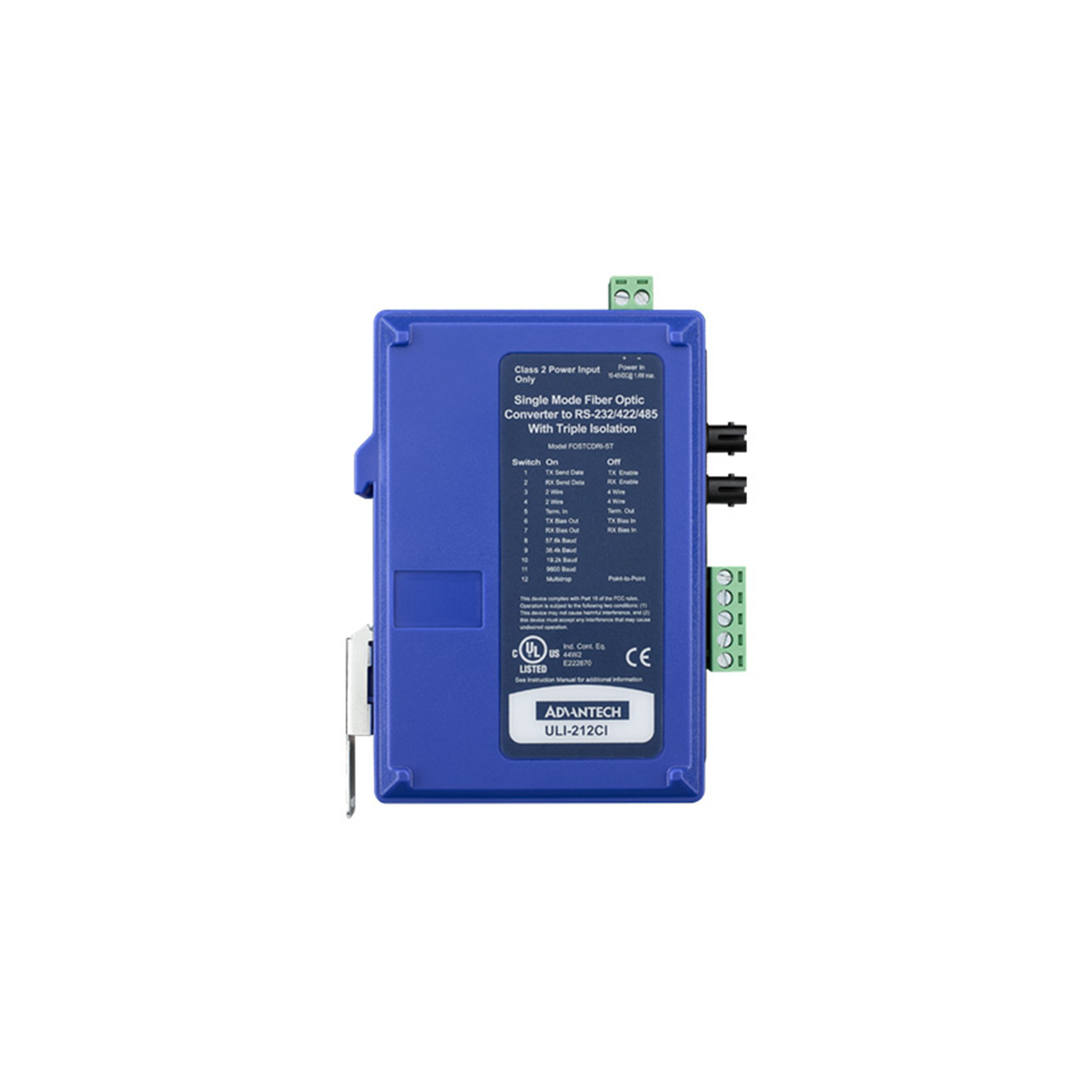

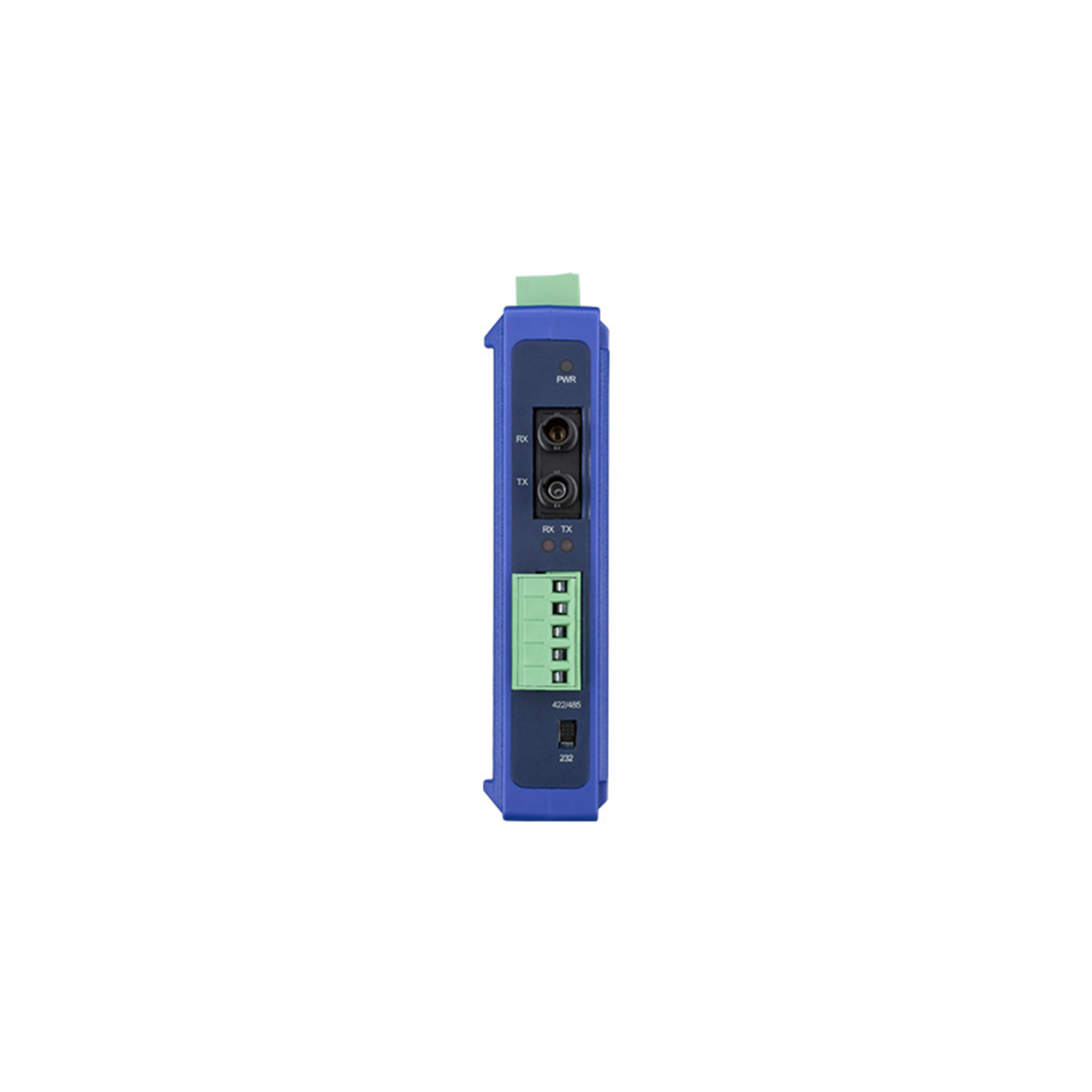

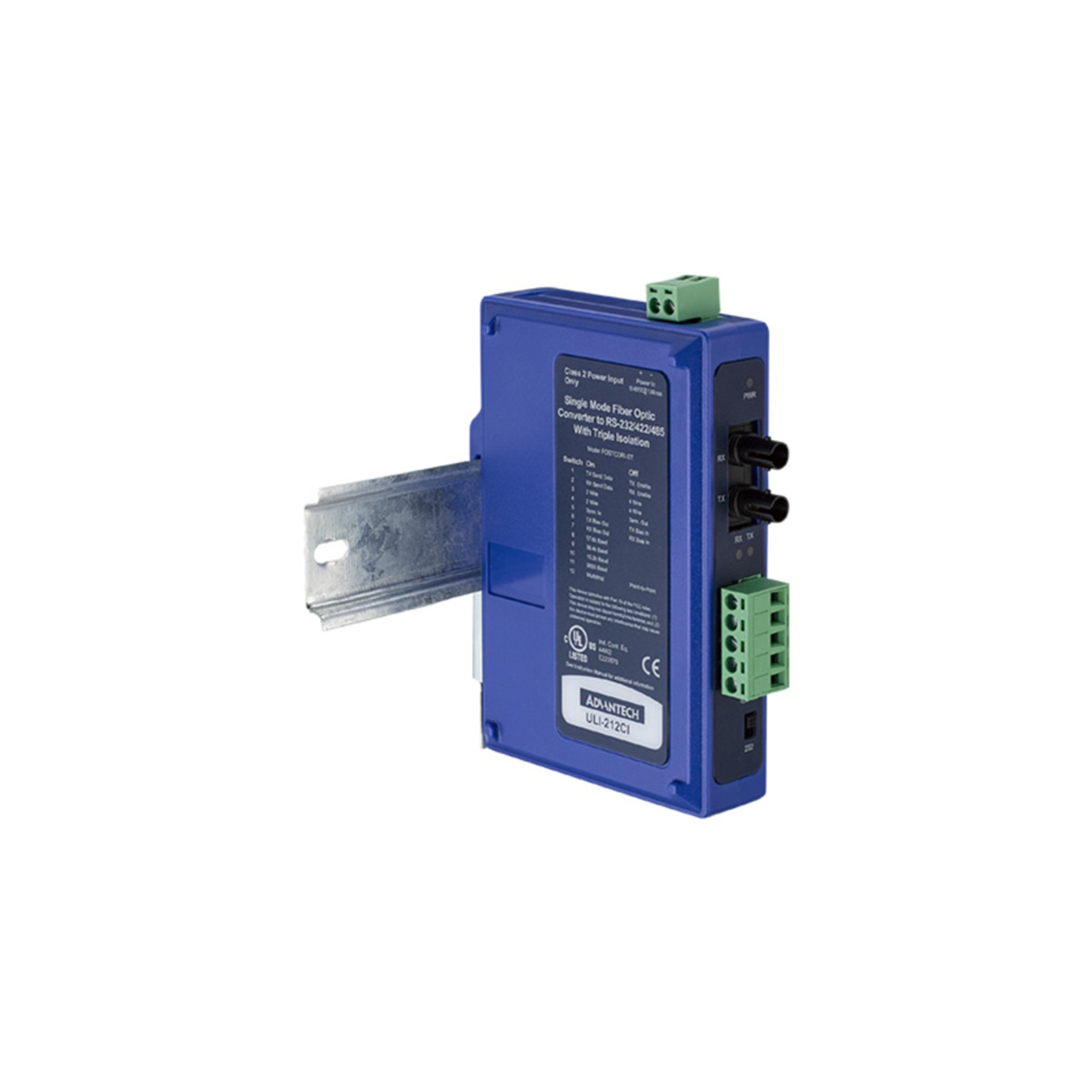

ULI-212CI -Triple Isolated RS-232/422/485 (Terminal Block) to Single Mode Fiber Converter (ST Connectors). DIN Rail Mounted
- Converts serial data signals to single-mode fiber optic
- 2 KV 3-way optical isolation (two data ports, power circuit) and EMI/RFI protection
- Data rates up to 115.2 kbps
- Wide operating temperature: -40 to +80 °C
- IP30 plastic case, DIN mount
- UL 508 rated
- 10 - 48 VDC input power range
- Up to 15 km (9 mi) range
- Power supply not included, sold separately
Specifications
General
Technology
Serial
Mounting
DIN
Power
10-48VDC
Temperature
-40 to 80C
Serial Type
RS-232/422/485
Serial Connector
Terminal Block
Fiber Type
Single-mode
Serial Communication
Serial Standard
RS-232 / RS-422 / RS-485
Serial Port Connector Type
Terminal block
Serial Port Number
1
Maximum Serial Transmission Speed
115.2 Kbps
Fiber General
Optical Mode
Single-mode
Max. Distance
15 km
Optical Connector
ST
Optical Wavelength
1310 nm
Optical Port Number
1
Environment
Operating Temperature
-40 ~ 80°C (-40 ~ 176°F)
Protection
Isolation
2,000 VDC
Surge Protection
600W
Power
Power Input (DC)
10 ~ 48 VDC
Accessory General
Mounting
DIN
