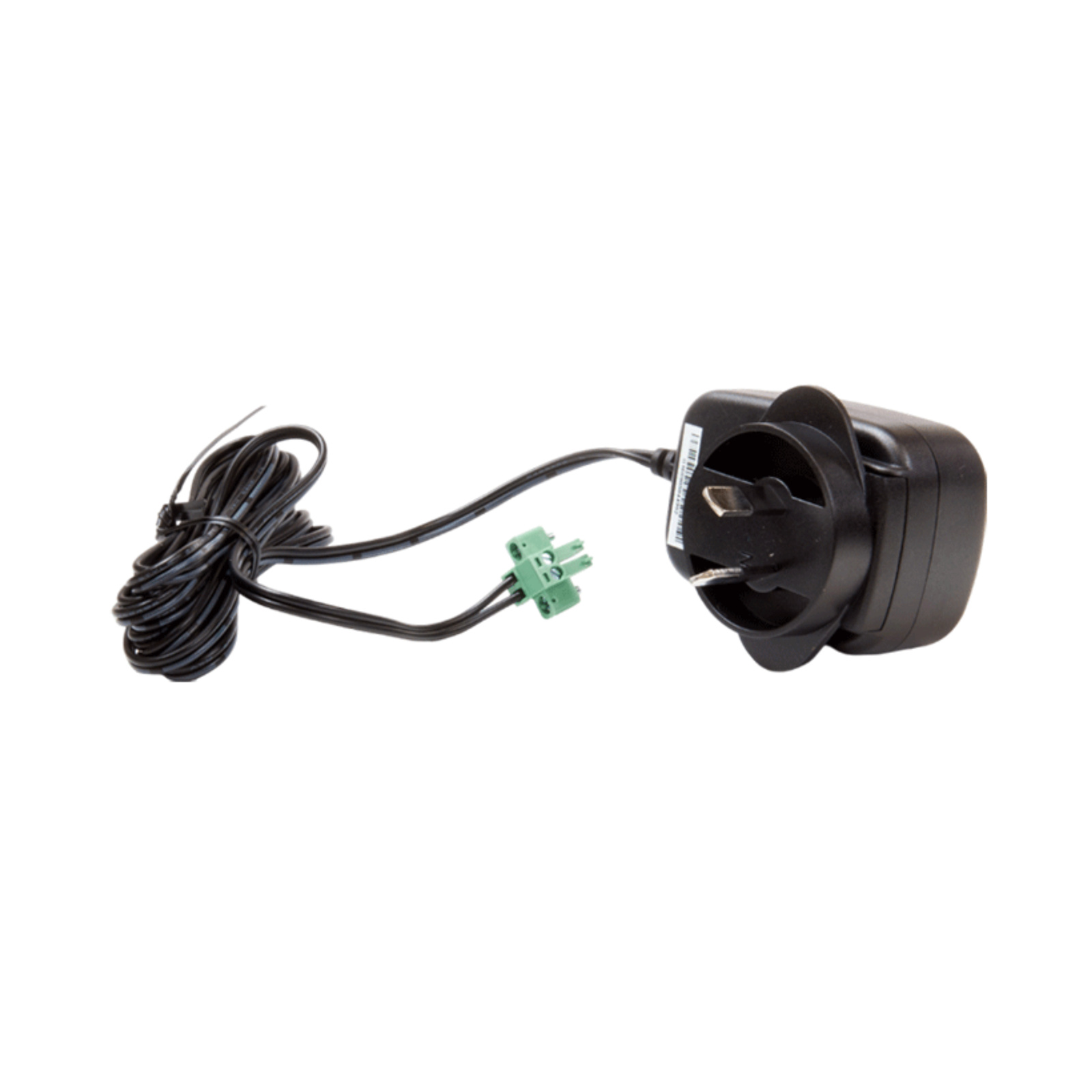

Advantech BB-RPS-V2-WR2-AUS Wall Power supply, ICR-32xx, v2, AU plug

PB Tech price
PB Tech price
NZD $ 33 .63
$ 33 .63
$33.63  +GST
$33.63

Advantech BB-RPS-V2-WR2-AUS Wall Power supply, ICR-32xx, v2, AU plug

  • Brand: Advantech
  • MPN: BB-RPS-V2-WR2-AUS
  • Part #: IPCAVH220319
  • UPC:
PB Tech price
NZD $ 33 .63 $ 33 .63
In stock at Supplier
Delivery: Order now and it ships on 06 Oct
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$33.63  +GST
$33.63
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Advantech
  • MPN: BB-RPS-V2-WR2-AUS
  • Part #: IPCAVH220319
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

Wall Power supply, ICR-32xx, v2, AU plug

- 12V/1A
- WR 2pins connector

Specifications

OUTPUT

Turn delay

5000 ms max @ AC low line input @ output full load

Hold up time

5ms min @ AC nominal  full load (>half cycle)

Efficiency (Normal)

Meet CEC,DOE,ERP,MEPS Level VI
@115v/60HZ,230V/50HZ

Transient response (dv,tmax)

0.3v dv max At AC nominal input loading from 50% load to max load or peak load
8ms tmax | Dynamic rise time 10uS max , duty 40mS max , Dynamic load step is slew rate of 0.5A/uS

Power out.Limit

Peak 13W for SYS1561-1212

Burn in limit

Full load 2 Hours

Power consumption

Less than 0.075W ms max. At AC nominal input @ output min load

INPUT

Voltage

(90~264)VAC

Frequency

(47~63)hz

Current

0.5A rms @ AC low line input and DC output full load

Inrush Surge Current (cold start)

40/60A  supply cold start,ambient temperature
25°C @115Vac/230Vac nominal AC max @ power input

Leakage current

0.25mA Max

PROTECTION

Over current/Short protection

The power supply will self-protect any output to ground &
auto recovery when abnormal circuit faults remove. An output
short circuit is defined as any output impedance less than 0.1 ohms.

Over Voltage

The power supply will be auto recovered when faults remove

Input protection

F1:1A 250V Fuse The power supply shall be protected
against power line surges and any abnormal condition

No Load protection

The power supply is provided with no load operation to
prevent the power supply and system from damage.

Protection class

II

CE

EMC

2014/30/EU

LVD

014/35/EU
EN 60950-1:2006+A11+A1+A12+A2

SAFETY

Safety

UL | GS | CB | CE | FCC |BSMI | PSE | SAA | RCM | EAC

OTHERS

Dielectric Strength

(Hi-pot) Primary to Secondary:3000VAC 10mA/60S

M.T.B.F

500,000 Calculated Hours at 25ºC, by Telcordia SR-332

Cable Length

1500mm (5 feet)

PLD (power line disturbance)

Line power surge | Line voltage SAG-more info on request

Cooling method

Natural Convection Cooling

Housing material

PC

Temperature coefficient

< ±0.5% / ?

ENVIRONMENT

Temperature Operating

(0 ~ 40)°C / Storage: (-20 ~ 85)°C

Humidity Operating

8%~90%RH / Storage: 5%~95% RH non condensing

Manufacturer Part No:
BB-RPS-V2-WR2-AUS
Brand:
Advantech
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220319
Product Model:
BB-RPS-V2-WR2-AUS
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
