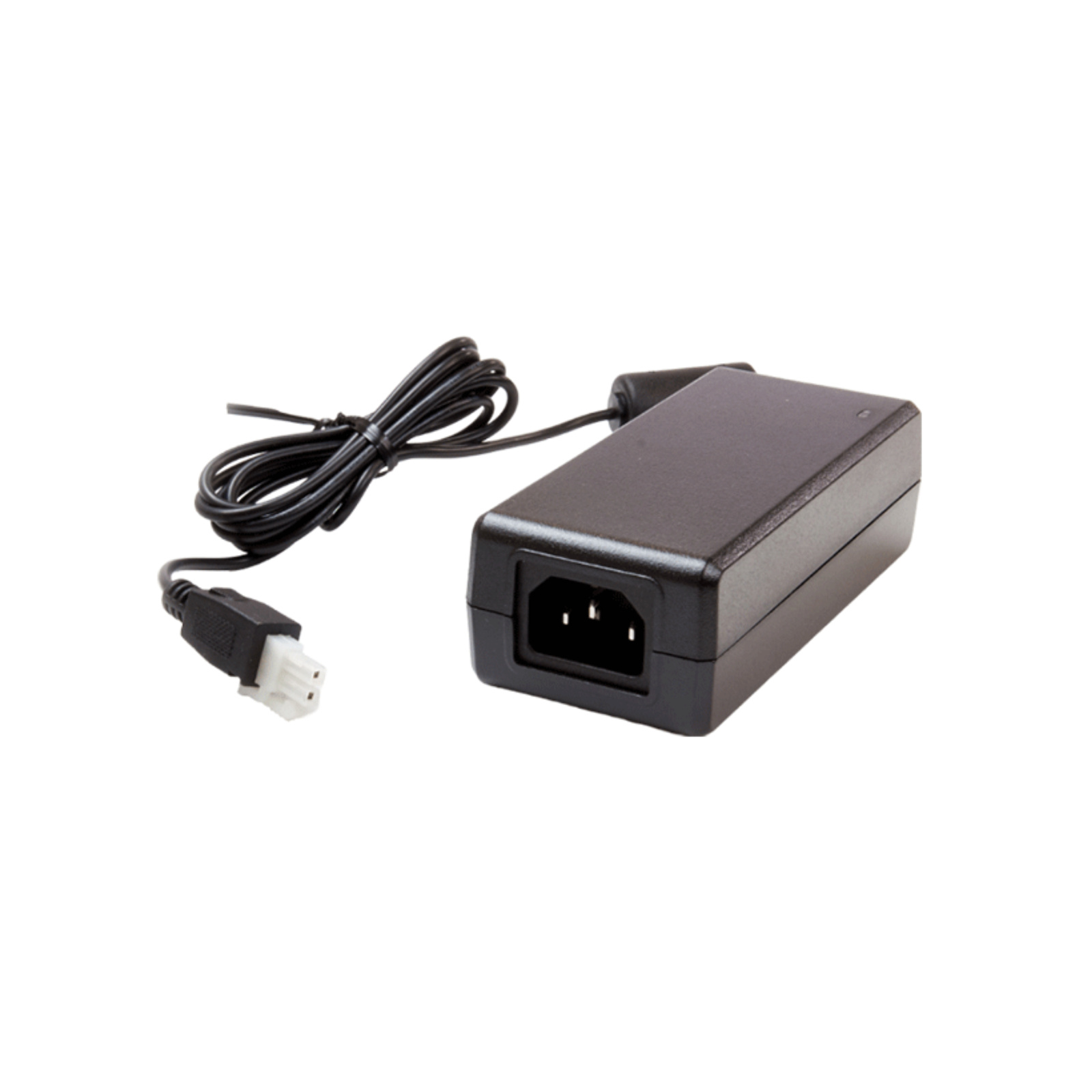

Advantech BB-RPS-V3-PSE PoE PSE Power supply, SmartFlex/SmarMotion, without cord
- Brand: Advantech
- MPN: BB-RPS-V3-PSE
- Part #: IPCAVH220320

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220320/Advantech-BB-RPS-V3-PSE-PoE-PSE-Power-supply-Smart
Features
PoE PSE Power supply, SmartFlex/SmarMotion, without cord
- 48V/1.35A
- Without Power Cord (ID)
- 2-pin Molex SmartFlex connector
Specifications
INPUT
Voltage
AC 100 V - 240 V
Frequency
50 Hz - 60 Hz
Current
1.40 A max.
Protection
Internal Primary Current Fuse, Inrush Limiting
OUTPUT
Load Regulation
± 5 % (typical)
Ripple
1 % - 2 % V p-p max. for output voltage at full load
Transient Response
0.5 ms for 50 % load change typical
Leakage Current
0.25 mA max.
Protection
Short circuit Protection ? Over Voltage Protection ? Over Current Protection
OTHERS
Cooling
Convection
Efficiency
DoE Level VI ? Energy Star ? ErP Stage 2 ? NRCan & GEMS Level VI Certified
Holdup Time
10 ms at full load
Dielectric Withstand
AC 3000 V Primary - Secondary
MTBF
300,000 calculated hours at 25 °C by telcordia SR-332
Output Cable
UL 1185 20 AWG / 18 AWG / 16 AWG, Ferrit Core, Length: 150 cm
Output Connector Type
2-Way Molex
ENVIRONMENT
Temperature Operating
0 °C - 40 °C / Storage: -20 °C - 80 °C
Humidity Operating
20 % RH - 80 % RH / Storage: 10 % RH - 90 % RH
GENERAL
EMI Conduction & Radiation
Compliance to EN 55022 Class B
Harmonic Current
Compliance to EN 61000-3-2, -3
EMS Immunity
Compliance to IEC 61000-1-2, -3, -4, -5, -6, -8, -11
Safety
IEC / EN / UL 62368-1 ? IEC / EN / UL 60950-1 ? CE ? RCM ? PSE ? BSMI
Case Dimensions
115 mm x 53 mm x 38 mm
Weight
310 g
