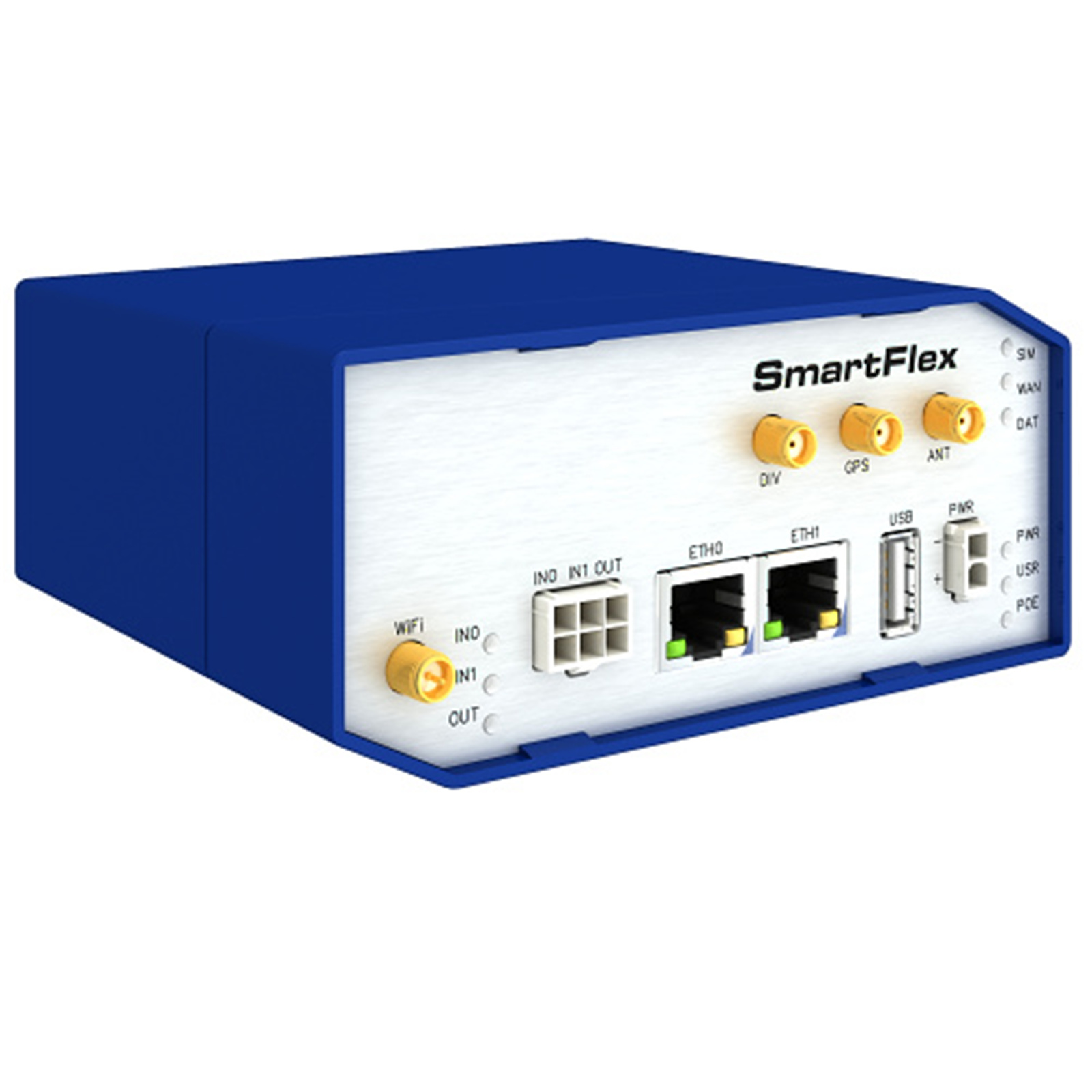

Advantech BB-SR30810015-SWH SmartFlex, AUS/NZ, 2x Ethernet, Wi-Fi, Plastic, International Power Supply (EU, US, UK, AUS)

PB Tech price
PB Tech price
NZD $ 1,477 .10
$ 1,477 .10
$1,477.10  +GST
$1,477.10

Advantech BB-SR30810015-SWH SmartFlex, AUS/NZ, 2x Ethernet, Wi-Fi, Plastic, International Power Supply (EU, US, UK, AUS)

  • Brand: Advantech
  • MPN: BB-SR30810015-SWH
  • Part #: IPCAVH220343
  • UPC:
PB Tech price
NZD $ 1,477 .10 $ 1,477 .10


Delivery: Order now and it ships on 30 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,477.10  +GST
$1,477.10

Features

SmartFlex, AUS/NZ, 2x Ethernet, Wi-Fi, Plastic, International Power Supply (EU, US, UK, AUS)

- LTE cat.4, 3G/HSPA+, GPRS/EDGE, AUS/NZ, 2x SIM
- LTE B1, B2, B3, B4, B5, B7, B8, B28, B40
- Powerful CPU and Memory, Hosting of SW IoT applications
- DIN rail mounting, Sleep mode
- 2x ETH
- WiFi 2.4/5 GHz, GPS, USB, I/O 2x DI + 1x DO, MicroSD
- Operating temp. -40 °C to +75 °C, Power supply 10 to 60 V DC
- Certifications: RCM
- Advanced networking, Diagnostics, VPN support, Firewall

Specifications

Mechanical

Weight

170

Case

Plastic

Dimensions [mm]

55 x 97 x 125

Region

AUS/NZ

Yes

EMEA

-

NAM

-

LATAM

-

APAC

-

LTE450

-

China

-

Korea

-

GSM-R

-

Global

-

Interface

ETH Port(s)

2

USB

1

I/O

2 x DI + 1 x DO

MicroSD

Yes

Wi-Fi / GPS / PoE

WiFi 2.4/5 GHz

Yes

GNSS receiver

Yes

Antenna Connectors

Cellular Antennas

2 x SMA

WiFi Antennas

1 x R-SMA

GPS Antenna

1 x SMA

Power

Power Input (DC)

10 ~ 60 VDC

Sleep Mode

Yes

Power Supply

10 to 60 V DC

General

GPRS/EDGE

Yes

3G/HSPA+

Yes

LTE cat.1

-

LTE cat.3

-

LTE450

-

Twin module

-

Environment

Operating Temperature

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

0~95%

Mechanism

Dimensions (W x H x D)

125 x 55 x 97 mm

Enclosure (Plastic)

Yes

Mounting (DIN-rail)

Yes

Software

Advances Software Tool

WA/DMP, WA/VPN

Port, LED, Anntena

SIM slots

2

MicroSD

Yes

Cellular Antennas

2x SMA

WiFi Antennas

1x R-SMA

GPS Antenna

1x SMA

LED Indicators

SIM, WAN, DAT, PWR, USR, POE, IN0, IN1, OUT, ETH

Mounting

DIN

WiFi / GPS / PoE

WiFi 2.4 GHz / WiFi 2.4 GHz SMA

- / -

WiFi 2.4/5 GHz

Yes

GPS

Yes

PoE PD

-

PoE PSE

-

Interfaces

ETH port(s)

2

USB

Yes

RS232 / RS485 / RS422

- / - / -

RS232

-

RS485

-

RS422

-

MBUS / WMBUS

- / -

DUST

-

I/O ports

CNT (4x DI, 2x AI, 1x DO)

-

I/O 1x DI + 1x DO

-

I/O 2x DI + 1x DO

Yes

Certifications

CE

-

FCC/IC

-

UL 60950-1

-

UL C1D2/Atex

-

Carriers

- / - / -

KCC

-

RCM

Yes

CCC

-

UL MX CoC

-

E8

-

Enviroment

Operating Temperature

-40 °C to +75 °C

Storage Temperature

-40 °C to +85 °C

Humidity

0 to 95 %

Cellular Module

LTE Bands

LTE B1, B2, B3, B4, B5, B7, B8, B28, B40

UMTS Bands

B1 (2100), B2 (1900), B5 (850), B8 (900)

GSM Bands

850, 900, 1800, 1900

CDMA Bands

-

Manufacturer Part No:
BB-SR30810015-SWH
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220343
Product Model:
BB-SR30810015-SWH
Warranty: 12 months *
