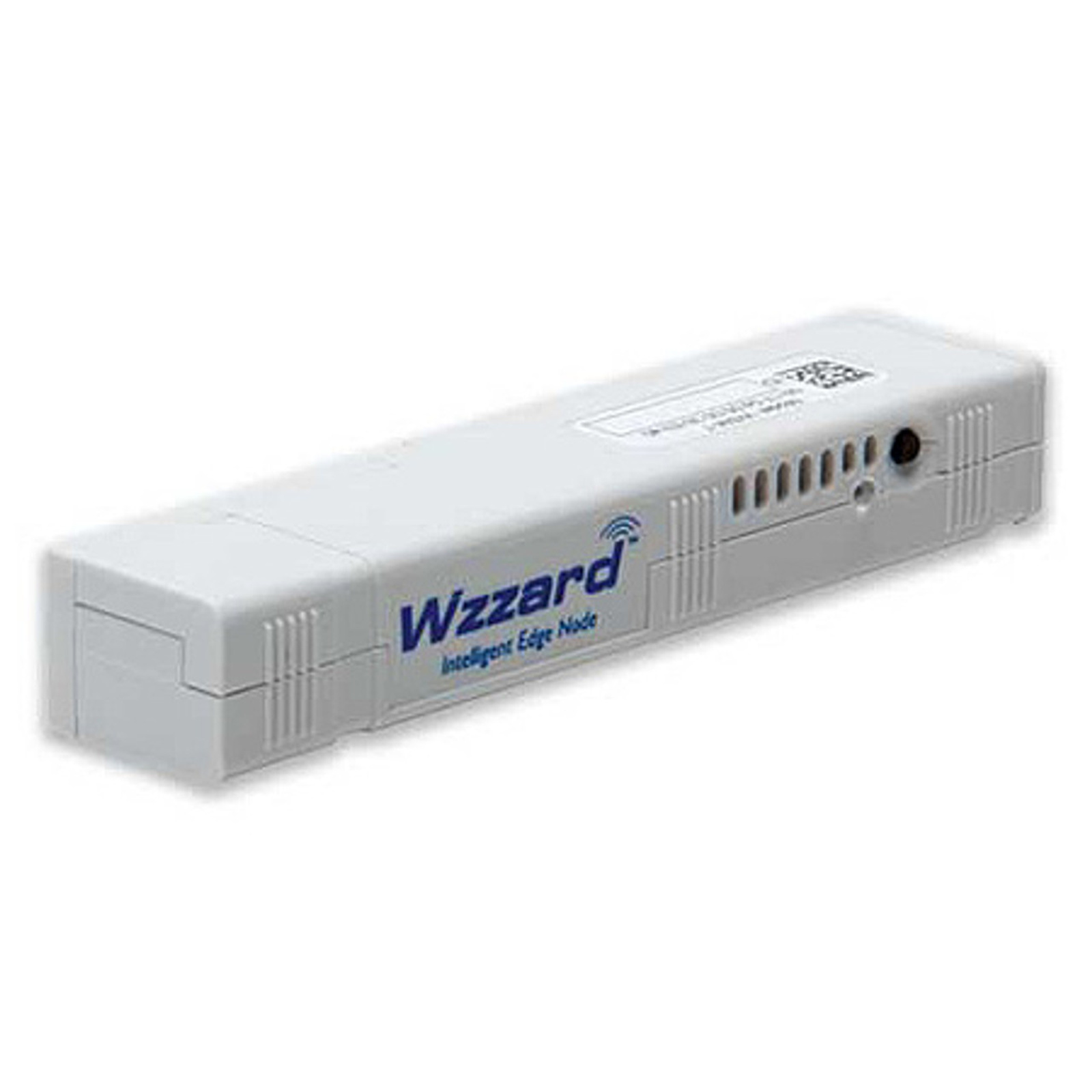

Advantech BB-WCD1H2102H Wzzard Mesh Indoor Node - Temp, Humidity, 2 AI, 1 DI, 1 Thermistor

PB Tech price
PB Tech price
NZD $ 378 .54
$ 378 .54
$378.54  +GST
$378.54

Advantech BB-WCD1H2102H Wzzard Mesh Indoor Node - Temp, Humidity, 2 AI, 1 DI, 1 Thermistor

  • Brand: Advantech
  • MPN: BB-WCD1H2102H
  • Part #: IPCAVH220388
  • UPC:
PB Tech price
NZD $ 378 .54 $ 378 .54
In stock at Supplier
Delivery: Order now and it ships on 25 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$378.54  +GST
$378.54
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Advantech
  • MPN: BB-WCD1H2102H
  • Part #: IPCAVH220388
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

BB-WCD1H2102H

- Ultra-low power 802.15.4e SmartMesh IP technology
- Communicates with SmartSwarm 342 gateway via a highly scalable and reliable wireless mesh network
- Internal temperature & humidity sensing support
- Connect to industry standard analog or digital sensors
- MQTT and JSON IoT protocol to application platform
- Wide operating temperature range
- Monitor refrigeration, food processing/storage or light stacks

Wireless Connectivity Where You Need It

The Wzzard mesh intelligent wireless sensor platform creates a complete, quick and easy connectivity stack between your sensors and your application, on your network or on the Internet. The platform uses Wzzard mesh wireless sensor nodes and a wireless 802.15.4e SmartMesh IP network to transmit sensor data to the gateway. The SmartSwarm 342 gateway connects to the Internet via wired connections or cellular data networks.

Reliable, Highly Scalable Wireless Network

The Wzzard Mesh platform uses mesh networking and time-synchronized channel hopping to provide up to 99.999% connectivity, even in demanding RF environments. New nodes may be added at any time - the SmartMesh IP network will dynamically selfconfigure as nodes are added or removed. This is a function of the mesh network itself and does not need to be controlled by the network gateway. One gateway can support up to 100 nodes.

Easy Installation and Configuration

Non-intrusive - even portable - network "overlay" is easy to install and remove with no disruptions to your existing network and no downtime. Configuration of the Wzzard mesh sensor platform is easy via the Advantech hub cloud management portal.

Specifications

Technology

Wireless

802.15.4e, SmartMesh IP

LED

Network Connectivity, Node Status

Power

Internal

3.6V 1650 mAH Lithium Thionyl Chloride 2/3 AA battery

Battery Life

5-year battery life, based on 1 minute sensor sampling interval

Mechanical

Physical Connection

Molex® 6-pin MicroClasp™

Antenna

Internal

Mounting Options

Mounting bracket (included), VHB adhesive strip (included), or zip tie (ties not included)

Dimensions

120.38l x 27.42h x 19.05d mm  (4.74l x 1.08h x 0.75d in)

Weight

0.09 kg  (0.2 lb)

Wireless Security

Wireless Security

Device Authentication
128-bit AES-based encryption with multiple keys
Message Integrity Check (MIC)
Synchronized Key Changeovers
Customized Key Rotation

Thionyl Chloride Lithium Battery*  (1 supplied with product)

Temperature Range

-60 to +85 °C

Nominal Capacity

1.65 Ah

Nominal Voltage

3.6 V

Diameter

14.5 mm

Height

33.5 mm

Environmental

Installation

Indoor

Operating Temperature

-20 to +70 °C (-4 to +158 °F)

Storage Temperature

-40 to +85 °C (-40 to +187 °F)

Operating Humidity

0 to 95%, non-condensing

Regulatory - Approvals / Standards / Directives

CE - Directives

2014/35/EU Low Voltage Directive 2014/53/EU Radio Equipment Directive 2011/65/EU amended by (EU) 2015/863 - Reduction of Hazardous Substances Directive (RoHS) 2012/19/EU Waste Electrical and Electronic Equipment (WEEE)

CE - Standards

EMC: ETSI EN 300 328 v2.1.1 - EMC & Radio Spectrum Matters (ERM) Wideband Transmission Systems, 2.4 GHz ISM Band ETSI EN 301 489-1 V2.1.1 - Applied in accordance with the specific requirements of: ETSI EN 301 489-17 V3.2.0 - EMC and Radio Spectrum Matters: Broadband Data Sytems EN 55032 +AC, Class A Information technology equipment - RF Emissions EN 55024 Information Technology Equipment - Immunity Characteristics - Limits and methods of measurement Safety: EN/IEC 61010-1 3rd Ed. Safety requirements for electrical requipment for measurement, control, and laboratory use. General requirements EN/IEC 61010-2-201 1st Ed. Particular requirements for control equipment RF Exposure: EN 62479 - Assessment of the compliance of low power electronic and electrical equipment with the basic restrictions related to human exposure to electromagnetic fields (10 MHz to 300 GHz)

Standards - other

EN 61000-6-2 - Generic Immunity Standard for (Heavy) Industrial Environments  EN 61000-6-4 + A1 - Emission Standard for (Heavy) Industrial Environments EN 60255-21-1 - Vibration, 2g, 10-500 Hz,1.5mm displacement EN 60255-21-2 - Shock, 50g, 11ms half sine wave, 18 shocks IEC 60068-2-31 - Drop

Manufacturer Part No:
BB-WCD1H2102H
Brand:
Advantech
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220388
Product Model:
BB-WCD1H2102H
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
