Advantech BB-WSCAM12-6 M12 Wiring Harness Cable, 8 pin, 1.8 m (6 ft), S&T Wires
- Brand: Advantech
- MPN: BB-WSCAM12-6
- Part #: IPCAVH220396

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220396/Advantech-BB-WSCAM12-6-M12-Wiring-Harness-Cable-8
Features

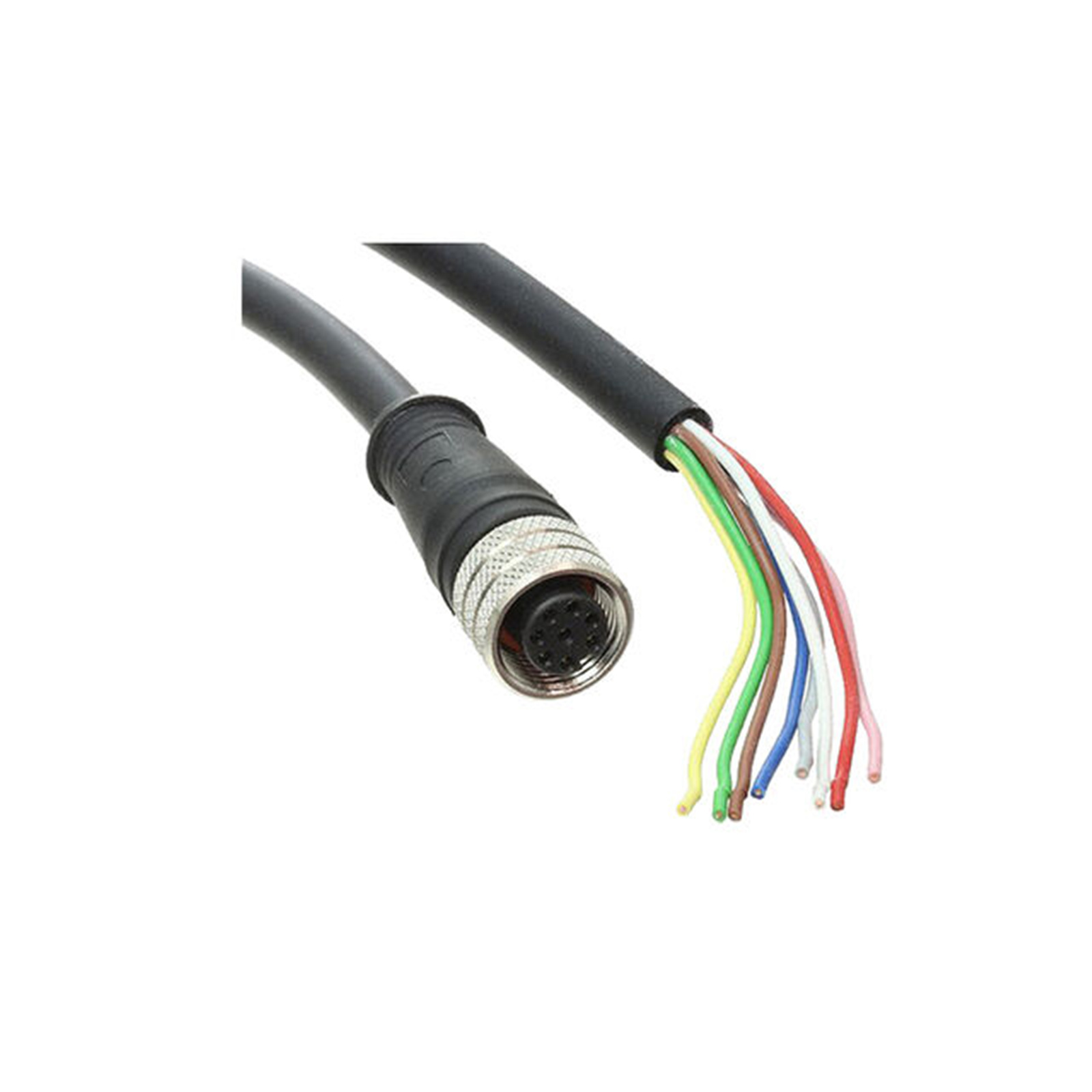

Model BB-WSCAM12-6 is a wire harness cable with 8 pins, M12 Micro-Change connector. It is rugged, compact and sealed for sensor/actuator connectivity in industrial control applications. For use with Advantech Wzzard wireless mesh products, kits, etc.
- For use with Wzzard industrial intelligent nodes
- Micro-Change (M12) single-ended cord set
- 8 pins
- Male (straight) to pigtail
- 2.0 meters (6.56 ft) length
Specifications
General
Connecter Micro-Change
M12
Connector
Pigtail, male
IP Protection Rating
IP67
Material
Contact Copper alloy
Physical
Cable Diameter
6.70 mm (0.264 in)
Cable Length
2.0 m (6.56 ft)
Cable Jacket
Black, PUR/PVC
Connector
Body TPU
Coupling
Nut Nickel-plated brass, threaded, male
O-Ring
Fluor-elastomer
Plating
Mating Gold over nickel
Poles (pins)
8
Weight
139.5 gm (4.9 oz.)
Electrical
Current Rating
2.0 A (maximum per contact)
Voltage Rating
30 V (maximum)
Regulatory - Approvals / Standards / Directives
RoHS Directive
EU 2015/863, China RoHS, REACH svch
IPC 1752A Classes C, D; IEC-62474; chemSHERPA (xml)
