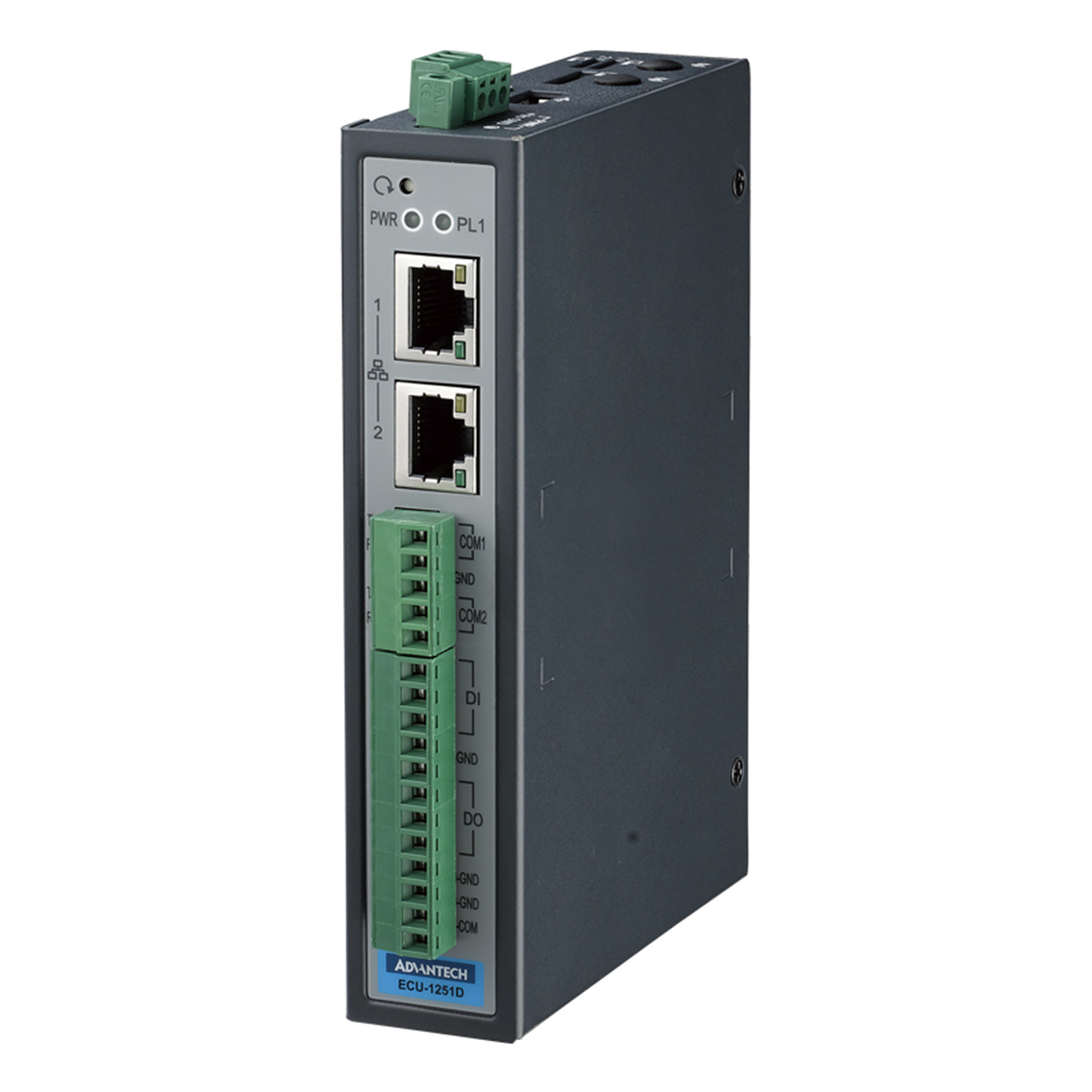

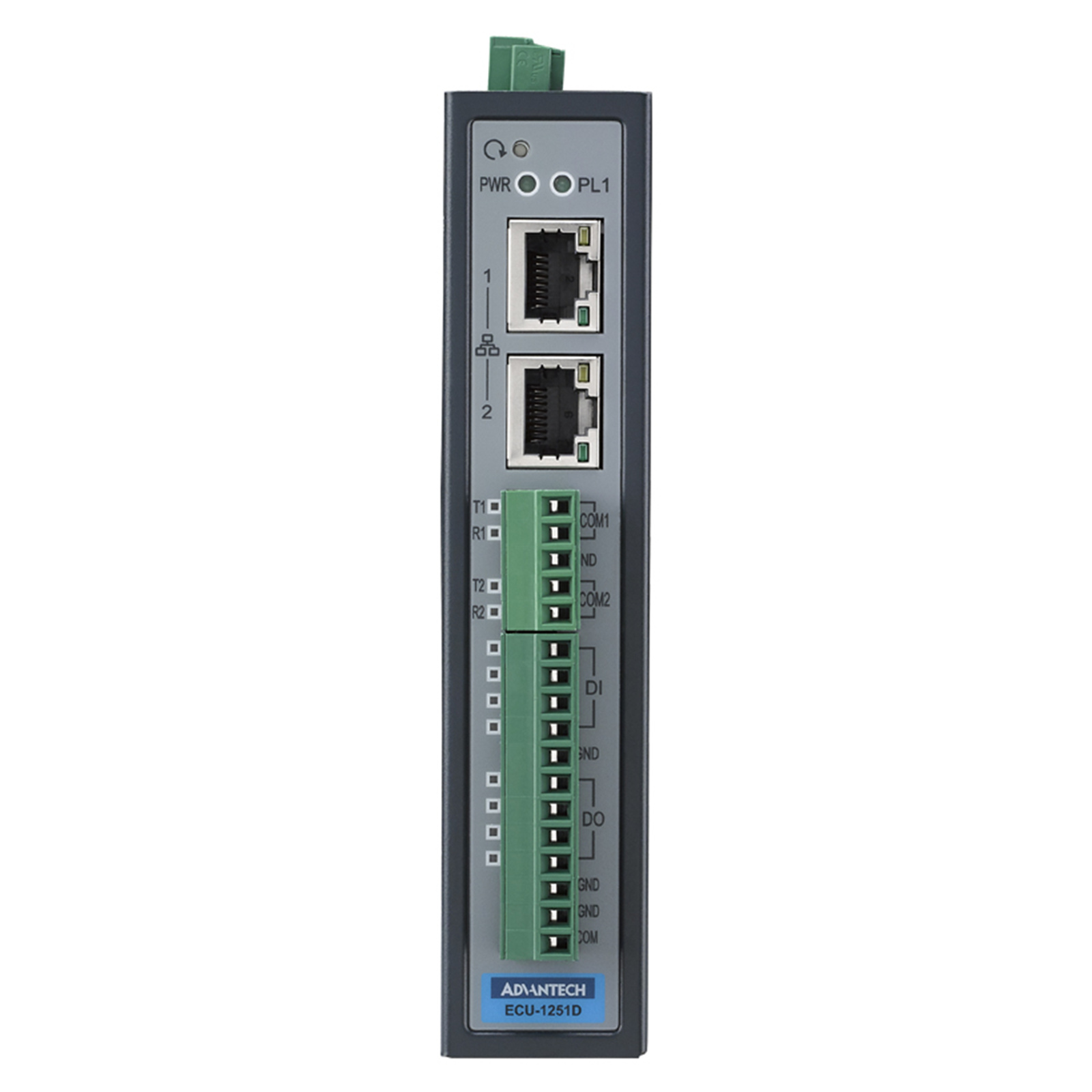

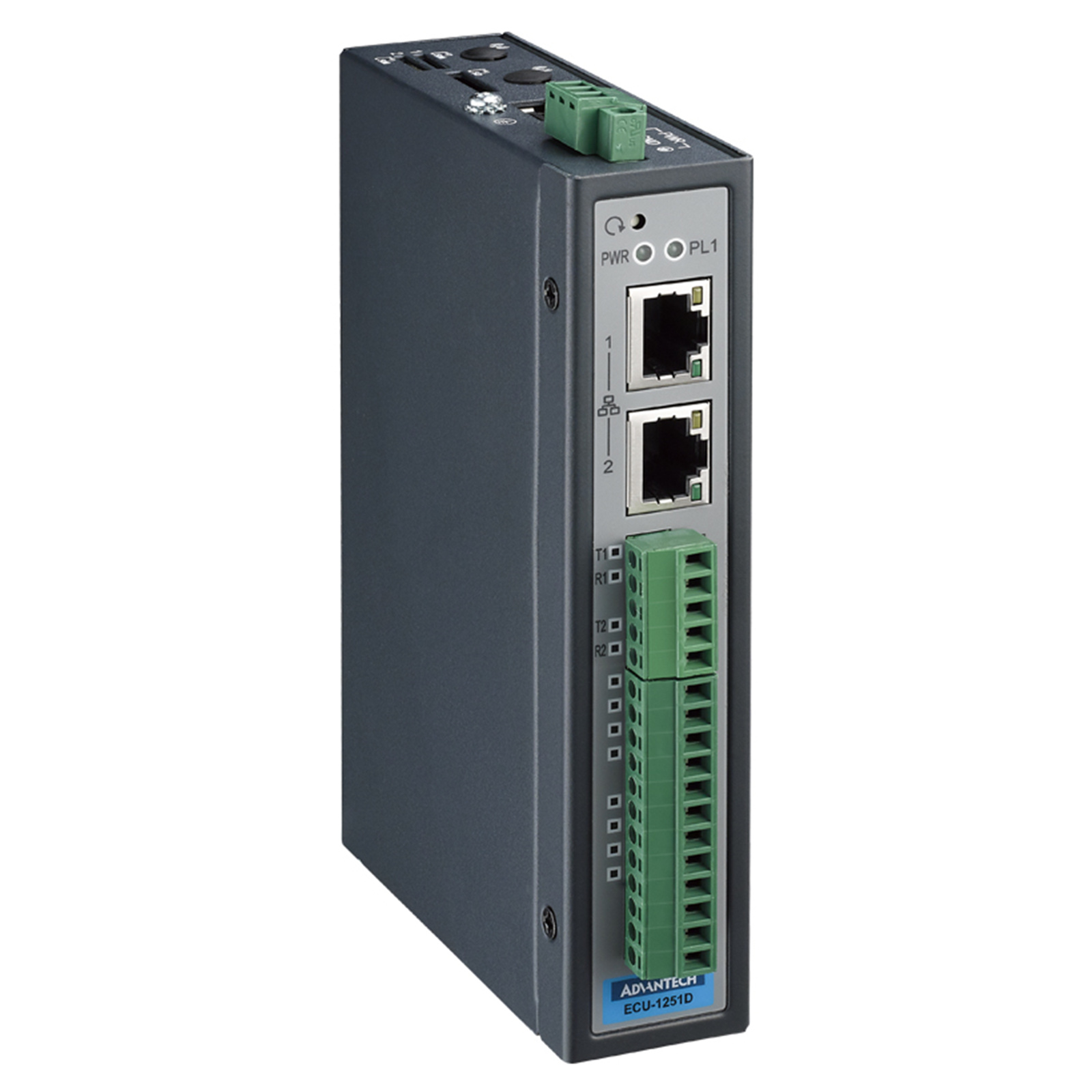

Advantech ECU-1251D-R10AA Cloud enabled Intelligent Communication Gateway with DI/DO for IIOT application
- Brand: Advantech
- MPN: ECU-1251D-R10AA
- Part #: IPCAVH220403

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220403/Advantech-ECU-1251D-R10AA-Cloud-enabled-Intelligen
Features
Industrial Communication Gateway with TI Cortex A8, 2 LAN, 2 COM, 4 DI & 4 DO
- TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
- Onboard IO - 4DI / 4DO
- Support web service for remotely on-line monitoring
- Firmware update by SD card and online update
- Data logger on SD card
- Support dual SIM slots for communication redundant
- Support MQTT Client for cloud communication
- Wide Operating temperature: -40 ~ 70°C
Specifications
Environment
Operating Temperature
-40~70 °C (-40~158 °F)
Relative Humidity
5~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Ethernet
Speed
10/100 Mbps
Expansion Function
SIM card slot
Nano SIM card
General
Grounding Protection
Chassis grounding
Programming Language
Linux C
Protocol
OPC-UA Client & Server, DNP3.0 Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server
Hardware
Certification
CE, FCC class A
CPU
TI Cortex A8, 600MHz
LED Indicators
PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
Memory
DDR3L 256MB
OS Support
Linux
Power Input
10~30 VDC
Storage
1 x 512MB NAND Flash
Watchdog Timer
15~255 s
I/O Interface
Expansion
1 x Full-size mPCIe Slot
LAN Ports
2 x 10/100 Mbps
Power Connector
1 x 3-Pin Terminal Block
Serial Ports
2 x RS-232/485 (Terminal Block)
Mechanical
Dimension (W x H x D)
140 x 30 x 96.5 mm
Enclosure
SECC
Form Factor
Passive Cooling and Front Accessible
Mounting
Wall, DIN-rail
Power Requirements
Input Voltage
10~30 VDC
Serial Communication
Baud Rate (bps)
50 bps~115.2 kbps
Data Signals
RS-232: TxD, RxD, GND
RS-485: Data+, Data-
Wireless Communication
Standard (Technology)
WIFI, LTE
