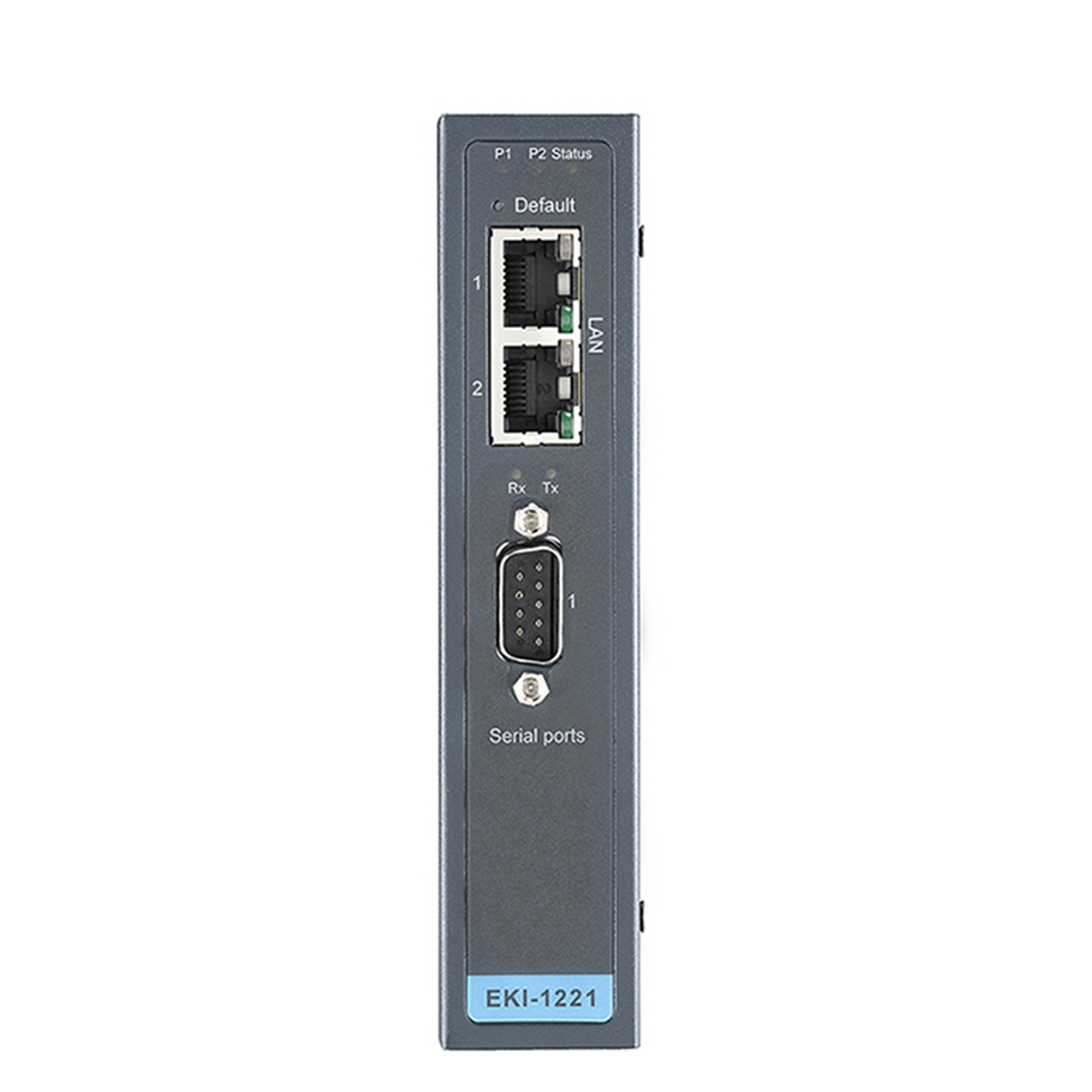

Advantech EKI-1221I-CE 1-Port Modbus Gateway, Wide Temperature

PB Tech price

NZD $ 560 .16

$ 560 .16

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-1221I-CE 1-Port Modbus Gateway, Wide Temperature

Brand: Advantech
MPN: EKI-1221I-CE
Part #: IPCAVH220414
UPC:

PB Tech price

NZD $ 560 .16

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: EKI-1221I-CE
Part #: IPCAVH220414
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

1-Port Modbus Gateway

- Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
- Integration of Modbus TCP and Modbus RTU/ASCII networks
- Supports up to 921.6 kbps, and any baud rate setting
- Support up to 16 connections on each serial port under Modbus client mode and 64 sessions under Modbus server mode.
- Software selectable RS-232/422/485 communication
- Mounts on DIN-rail and Wall mount
- Automatic RS-485 data flow control
- "I" models support a wide operating temperature
- "CI" models support isolation and a wide operating temperature

Specifications

Certification

EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Environment

Operating Temperature

-10 ~ 60°C (14 ~ 140°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication

Ethernet Standard

IEEE 802.3 , 802.3ab , 802.3u

RJ-45 Port Connector Type

RJ-45

RJ-45 Port Number

RJ-45 Transmission Speed

10/100 Mbps

Mechanism

Dimensions (W x H x D)

36.6 x 140 x 95 mm (1.44 x 5.51 x 3.74 in.)

Enclosure (Metal)

Metal with solid mounting hardware

IP Rating

IP30

Mounting (DIN-rail)

Yes

Mounting (Wall)

Yes

Weight

0.48 kg

Power

Power Consumption

3.2W

Power Operating Current

0.7A @ 24 V

Power Input (DC)

12 ~ 48 VDC, redundant dual inputs

Redundant Dual Inputs

Yes

Serial Communication

RS-232

Yes

RS-422

Yes

RS-485

Yes

Serial Port Connector Type

DB9 male

Serial Port Number

Protection

Port to Port Isolation

Reverse Polarity

Present

Software

Baud Rate

50 ~ 921.6 Kbps

Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Modbus RTU Client/Server, Modbus ASCII Client/Server

Protocol Support

Modbus TCP

Yes

Modbus RTU

Yes

Modbus ASCI

Yes

Ethernet

Yes

Manufacturer Part No:

EKI-1221I-CE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220414

Product Model:

EKI-1221I-CE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
