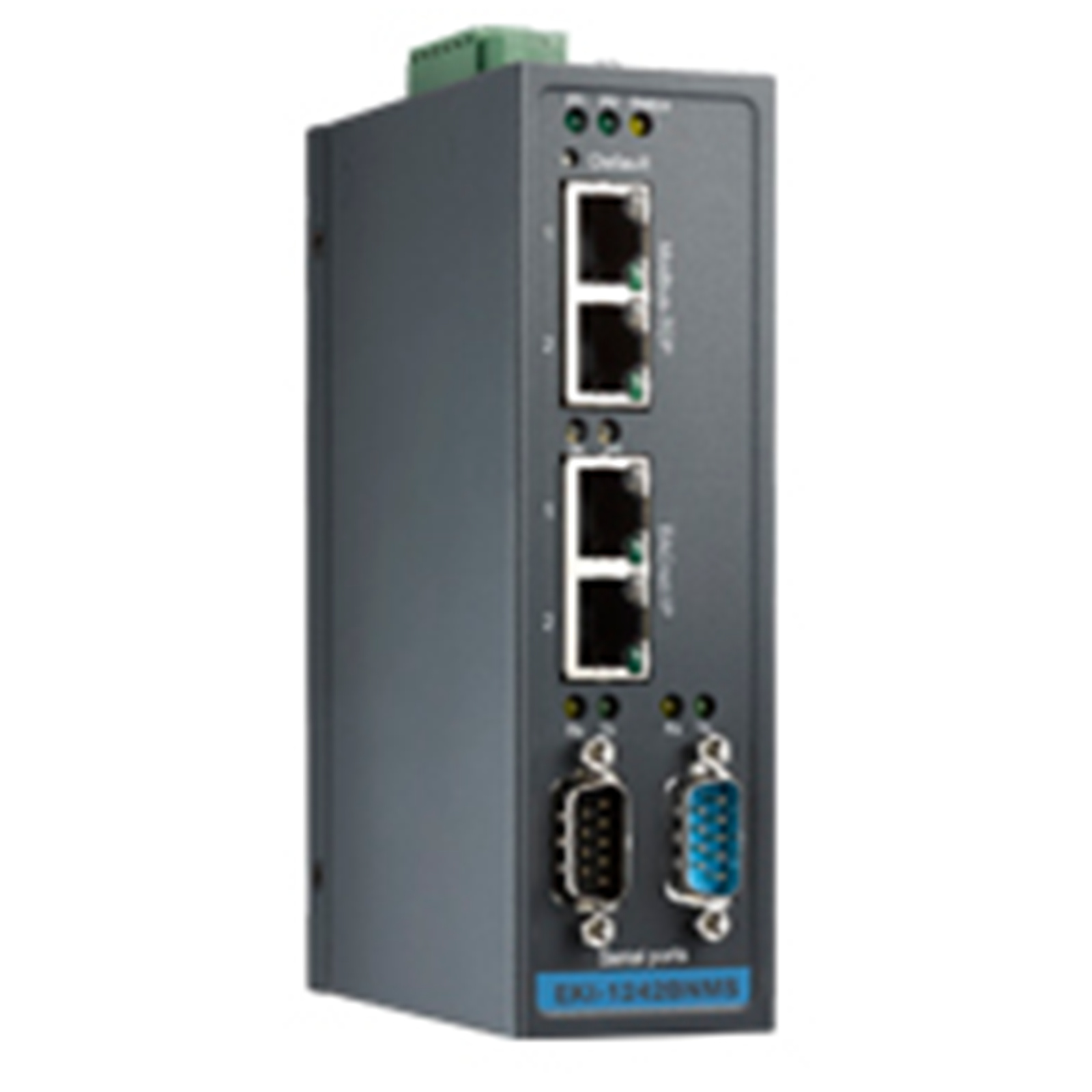

Advantech EKI-1242IBNMS-A Modbus RTU/TCP to BACnet IP/MSTP Fieldbus Gateway, Wide Temperature
- Brand: Advantech
- MPN: EKI-1242IBNMS-A
- Part #: IPCAVH220422

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220422/Advantech-EKI-1242IBNMS-A-Modbus-RTUTCP-to-BACnet
Features
- Modbus client mode supports 64 connections.
- Designed for protocol extensibility and adaption
- Built-in real time diagnostic to increase highly efficiency of device management
- Supports dual power input for power redundancy
- Mounts on DIN-rail and Wall mount
Specifications
Ethernet Communication
Protocols
BACnet IP, Modbus TCP
Number of Ports
4
Speed
10/100 Mbps, Auto MDI/MDIX
Connector
8-pin RJ45
Protection
Built-in 1.5 KV magnetic isolation
Serial Communications
Port Type
RS-232/422/485, software selectable
No. of Ports
2
Protocol
BACnet MSTP, Modbus RTU
Port Connector
DB9 male
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Odd, Even, Space, Mark
Flow Control
XON/XOFF, RTS/CTS
Baud Rate
50 bps ~ 921.6 kbps
Serial Signals
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
Software
Modbus RTU/TCP
Mode Client
Functions Support 1, 2, 3, 4, 5, 6, 15, 16
Max. Number of Connections 64 connections
?BACnet IP/MSTP
Class BACnet IP/Slave, BACnet MSTP/Slave
Support objects AI, AO, BI, BO
Max object instance 200 objects each type
General
LED Indicators System: Power, System Status, Protocol status
LAN: Speed, Link/Active, Error
Reboot Trigger
Built-in WDT (watchdog timer)
MicroSD Card
Configuration backup and restore
Mechanics
Dimensions (W x H x D)
42 x 140 x 95 mm (1.66" x 5.52" x 3.75")
Enclosure
Metal with solid mounting hardware
Mounting
DIN-rail, Wall
Weight
0.497 Kg
Power Requirements
Power Input
24 VAC/VDC, redundant dual inputs
Power Connector
Terminal block
Power Consumption
7.2W
Environment
Operating Temperature
-40 ~ 75 °C (-40 ~ 167 °F)
Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity
10 ~ 95% RH
