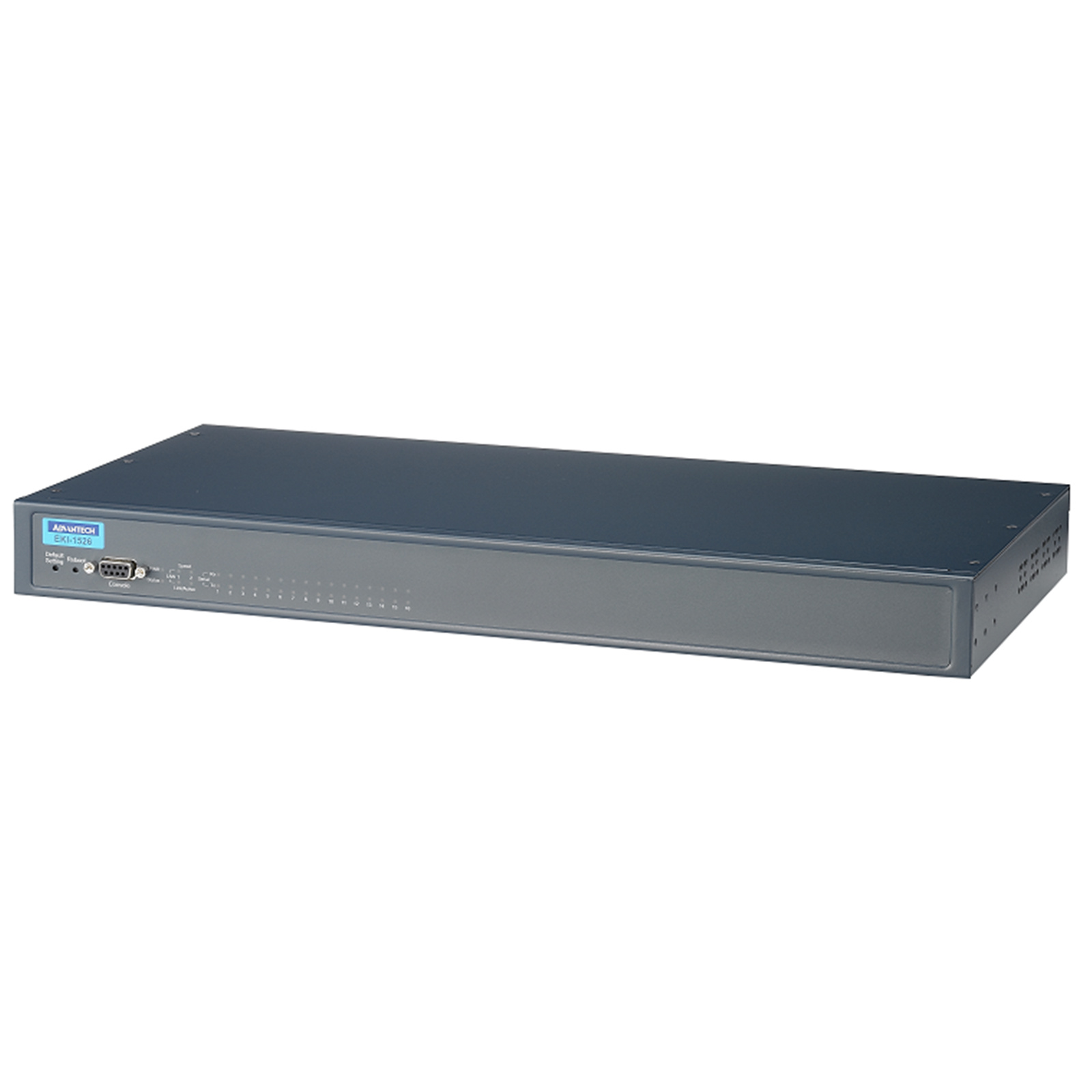

Advantech EKI-1526NL-CS-CE 16-Port Console Server
- Brand: Advantech
- MPN: EKI-1526NL-CS-CE
- Part #: IPCAVH220442

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220442/Advantech-EKI-1526NL-CS-CE-16-Port-Console-Server
Features
- Cisco pin definition
- Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
- Supports up to 921.6 kbps, and any baud rate setting
- Provides COM port redirection (Virtual COM), TCP and UDP operation modes
- Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
- Built-in 15 KV ESD protection for all serial signals
- SNMP MIB-II for network management
- Built-in buzzer for easy location
Specifications
Ethernet Communications
Compatibility
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Speed
10/100/1000 Mbps, auto MDI/MDIX
No. of Ports
2
Port Connector
8-pin RJ45
Protection
Built-in 1.5 KV magnetic isolation
Serial Communications
Port Type
RS-232, software selectable
No. of Ports
EKI-1528NL-CS: 8
EKI-1526NL-CS: 16
Port Connector
8-pin RJ45
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Odd, Even, Space, Mark
Flow Control
XON/XOFF, RTS/CTS, DTR/DSR
Baud Rate
50 bps ~ 921.6 kbps, any baud rate setting
16 ports up to 230.4 kbps simultaneously
Operation Modes
COM port redirection mode (Virtual COM)
TCP/UDP server (polling) mode
TCP/UDP client (event handling) mode
Pair connection (peer to peer) mode
RFC2217 mode
Configuration
Windows utility, Telnet console, Web Browser, serial console
Protocols
ARP, ICMP, IPv6, TCP, UDP, BOOTP/DHCP Client, Auto IP, Telnet, SNMP, HTTP, DNS, SMTP, NTP
Management
SNMP MIB-II
Mechanics
Dimensions (W x H x D)
438 x 43.6 x 259.2 mm (17.24" x 1.71" x 10.2")
Enclosure
SECC chassis
Mounting
Rack
General
LED Indicators
System: Power, System Status
LAN: Speed, Link/Active
Serial: Tx, Rx
Alert Tools
Built-in buzzer and RTC (real time clock)
Reboot Trigger
Built-in WDT and push button for hardware reboot
Power Requirements
Power Input
100 ~ 240 VAC , 50 ~ 60 Hz
Power Consumption
5.6 W
Environment
Operating Temperature
-10 ~ 60°C (14 ~ 140°F)
Storage Temperature
-20 ~ 80°C (-4 ~ 176°F)
Operating Humidity
10 ~ 95% RH
