Advantech EKI-2701HP-US-A 802.3at Gigabit PoE+ injector (USA)

PB Tech price

NZD $ 100 .66

$ 100 .66

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-2701HP-US-A 802.3at Gigabit PoE+ injector (USA)

Brand: Advantech
MPN: EKI-2701HP-US-A
Part #: IPCAVH220494
UPC:

PB Tech price

NZD $ 100 .66

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: EKI-2701HP-US-A
Part #: IPCAVH220494
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The EKI-2701HP-US-A is a single port IEEE 802.3at/af PoE injector with internal power supply, able to transfer Ethernet data and deliver up to 30 watts electrical power to remote PoE compliant powered devices (PDs) through the Cat.5e Ethernet cable. It is designed especially for higher power required network equipment that offers a simple, economical, safe and reliable power solution to make more flexible in the places difficult to connect to power supply.

- Supports 10/100/1000Base-T (X)
- IEEE 802.3at Power over Ethernet Plus compliant
- PoE Power output up to 30 watts
- Backward compatible with IEEE 802.3af
- Remote power feeding up to 100 meters
- Overload and Short circuit protection

Specifications

Model

EKI-2701HP-US-A Gigabit IEEE 802.3at PoE+ Injector with US power cord

Interface

I/O Port

1 x 10/100/1000 BASE-T/TX RJ-45 Data input
1 x 10/100/1000 BASE-T/TX RJ-45 PoE output

Ethernet Transmission Distance

Up to 100 m (mid-span)

Power Connector

3 -Pin AC Inlet, IEC320 C14

Physical

Enclosure

Plastic shell

Installation

Desktop

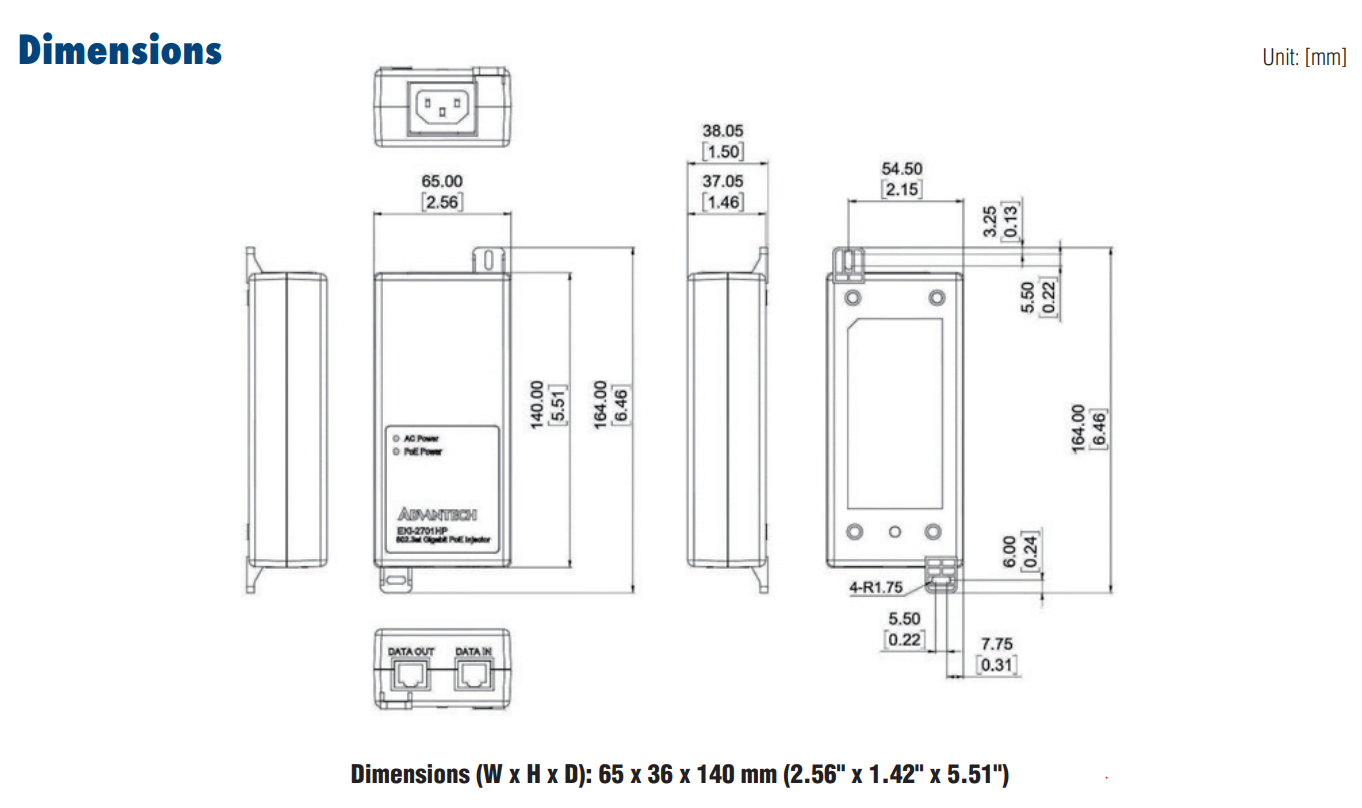

Dimensions(W x H x D)

65 x 36 x 140 mm (2.56" x 1.42" x 5.51")

LED Display

System LED

AC Power

Port LED

POE Power

Environment

Operating Temperature

0 ~ 40°C (32 ~ 104°F)

Storage Temperature

-20 ~ 70°C (-4 ~ 158°F)

Ambient Relative Humidity

10 ~ 90% (non-condensing)

Humidity

10 ~ 90% (non-condensing)

Power

Power Consumption

Max. 36 Watts

Power Input

100~240VAC 50~60Hz, 0.72A

Power Output

55 VDC, 0.6 A

Certification

Safety

IEC/EN/UL 62368-1

EMI

CE EN 55032 (CISPR 32), Class B
FCC Part 15B ICES-003, Class B
EN 61000-4-3

EMS

EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Manufacturer Part No:

EKI-2701HP-US-A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220494

Product Model:

EKI-2701HP-US-A

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
