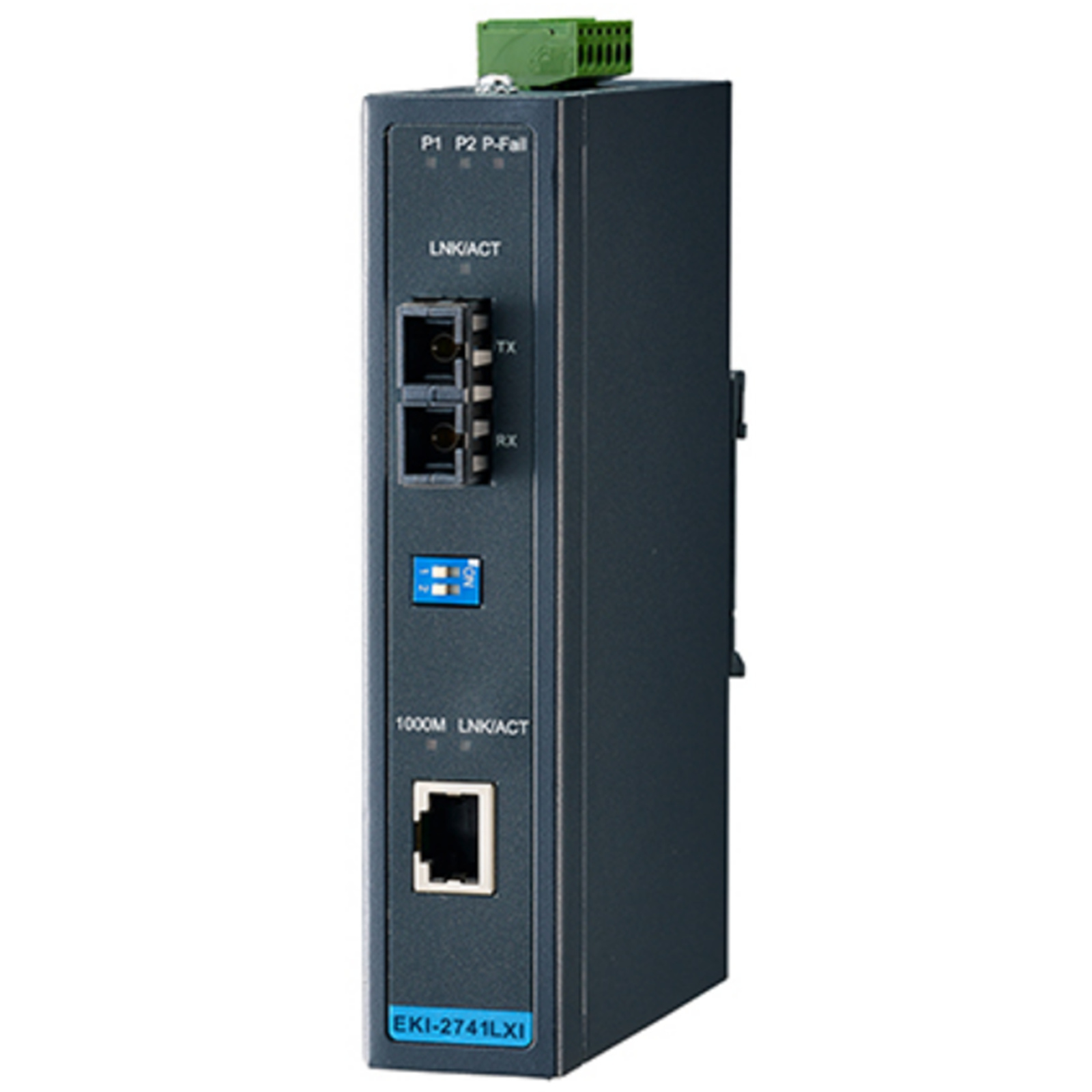

Advantech EKI-2741LXI-BE Hardened Media Converter, 1000Mbps, Single mode 1310nm, 10km, SC
Out of stock
Advantech EKI-2741LXI-BE Hardened Media Converter, 1000Mbps, Single mode 1310nm, 10km, SC
- Brand: Advantech
- MPN: EKI-2741LXI-BE
- Part #: IPCAVH220526
- UPC:
- Brand: Advantech
- MPN: EKI-2741LXI-BE
- Part #: IPCAVH220526
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech EKI-2741LXI-BE Hardened Media Converter, 1000Mbps, Single mode 1310nm, 10km, SC
- Brand: Advantech
- MPN: EKI-2741LXI-BE
- Part #: IPCAVH220526

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220526/Advantech-EKI-2741LXI-BE-Hardened-Media-Converter
Features
The EKI-2741 is designed to convert Gigabit Ethernet networks to Gigabit fiber networks by transparently converting Ethernet signals to optic signals. Therefore, the EKI-2741 is an ideal
solution for "fiber to building" applications at central offices or local sites. EKI-2741 supports MDI/MDIX auto detection, so you don't need to use crossover wires. Furthermore, the
EKI- 2741 accepts a wide voltage range from 12 ~ 48 VDC. EKI-2741 is an enhanced gigabit Ethernet to fiber optic converter. Aside from its standard features, the versatile the EKI-2741 also has the LFP (Link Fault Pass-through) feature. So when one side of the link fails and the other side continues transmitting packets, waiting for a response that never arrives from
the disconnected side, EKI-2741 will force the link to shut down as soon as it has noticed the other link has failed, giving the application software a chance to react to the situation.
- Provides 1 x 10/100/1000 Mbps Ethernet port with RJ45 connector
- Provides 1 x 1000 Mbps fiber port with SC type connector for 1000Base-SX/LX device
- Provides 1 x 100/1000 Mbps Ethernet port with SFP (mini-GBIC) type
- Provides DIP switch for power alarm & LFP
- Supports MDI/MDI-X auto crossover
- Supports auto-negotiation
- Supports redundant 12 ~ 48 VDC power input
- Provides flexible mounting: DIN-rail and wall mount
- Provides Link Fault Pass-through (LFP)
- Jumbo Frame: 9216 bytes
Specifications
Communications
Standard
IEEE 802.3, 802.3u, 802.3ab, 802.3x, IEEE 802.3z
LAN
1000Base-LX
Transmission Distance
Ethernet: Up to 100 m
Fiber: Single-mode: Up to 10 km (EKI-2741LX)
Transmission Speed
Up to 1000 Mbps
Single-mode (EKI-2741LX/LXI)
Wavelength: 1310 nm
Tx Power: -3/-9.5 dBm
Rx Sensitivity: -20 dBm
Parameters: 9/125 um
Interface
Connectors
1 x RJ45
1 x SC type fiber connector (EKI-2741SX/LX)
6-pin removable screw terminal (power & relay)
LED Indicators
P1, P2, P-Fail
Fiber: LNK/ACT
Ethernet: 1000M, LNK/ACT
DIP Switch
Power alarm, LFP
Power
Power Consumption
3.5W
Power Input
12 ~ 48 VDC, redundant dual inputs
Mechanism
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18" x 5.51" x 3.74")
Enclosure
IP30, metal shell with solid mounting kits
Mounting
DIN-rail, wall
Protection
Power Reverse
Present
Overload current
Present
Environment
Wide Temp Model Operating Temperature
-40 ~ 75 °C (-40 ~ 167 °F)
Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity
10 ~ 95% (non-condensing)
Storage Humidity
10 ~ 95% (non-condensing)
MTBF
TBD
Certification
Safety
UL 60950
EMI
CE, FCC Class A
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
