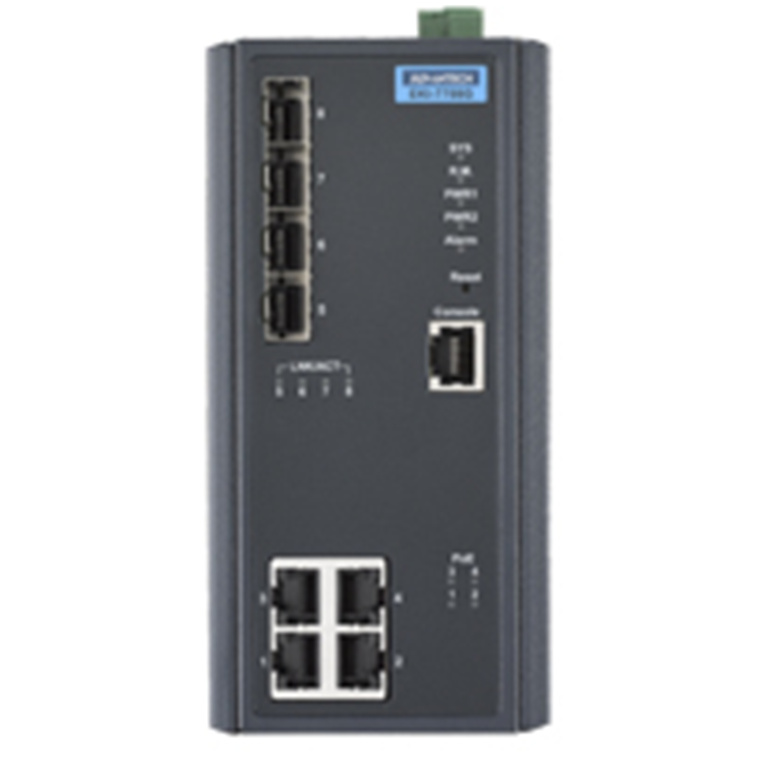

Advantech EKI-7708E-4FP-AE 4+4G port Gigabit Ethernet Switch with 4 PoE+ port, 46 57VDC
The EKI-7708E-4FP provides 4 fast Ethernet IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. It can provide up to 30 W per port to fulfill high-power-consumption power device requirements. It is embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and costs.
The EKI-7708E series (EKI-7708E-4FP/4FPI & EKI-7708E- 4FPI ) support NMS to help IT managers with networking maintenance and failure prevention. Additionally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability. Finally, the EKI-7708E-4FP meet the EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.
- 4 x IEEE 802.3 af/at PoE Fast Ethernet ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- Dual 48 VDC power input and 1 relay output
Specifications
Interfaces / Communications
I/O
Port 4 x 10/100BASE-T/TX RJ-45
4x SFP (mini-GBIC) port
Auto-Negotiation, Full/Half Duplex Mode
Auto MDI/MDI-X Connection
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)/FX
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for Flow Control
PoE
Port 1 ~ Port 4: IEEE 802.3at/af
Console Port
RS-232 (RJ45)
Power Connector
6-pin screw Terminal Block (including relay)
Physical
Enclosure
Metal Shell
Protection Class
IP 30
Installation
DIN-Rail, Wall-mount
Dimensions (W x H x D)
74 x 152 x 105 mm (2.91" x 5.98" x 4.13")
LED Indicators
System LED
PWR1, PWR2, SYS, Alarm and R.M.
Port LED
Link / Speed / Activity / PoE
Environment
Operating Temperature
-10 ~ 60°C (-40 ~ 140°F) (EKI-7708E-4FP)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Overload Current Protection
Present
Reverse Polarity Protection
Present
MTBF
910,074 hours
Power
Power Consumption
12.1W @ 48VDC (System)
Power Input
48 VDC (46 to 57 VDC)
53 -57 VDC is recommended for 802.3at redundant dual power input
Power Budget
120W
Fault Output
1 Relay Output
Certification
Safety
UL 61010-2-201
EMI
CE, CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EMC
EN 61000-6-2
EN 61000-6-4
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Traffic control
NEMA TS-2
Railway Trackside
EN 50121-4
Switch Properties
Switch Capacity
8.8Gbps
Transmission Rate
6.55Mpps
MAC Table Size
8K
Jumbo Frame
1,0240 Bytes
Packet Buffer Size
4.1Mb
Max. IGMP Group
256
Max. VLAN Group
256 (VLAN ID 1 ~ 4094)
