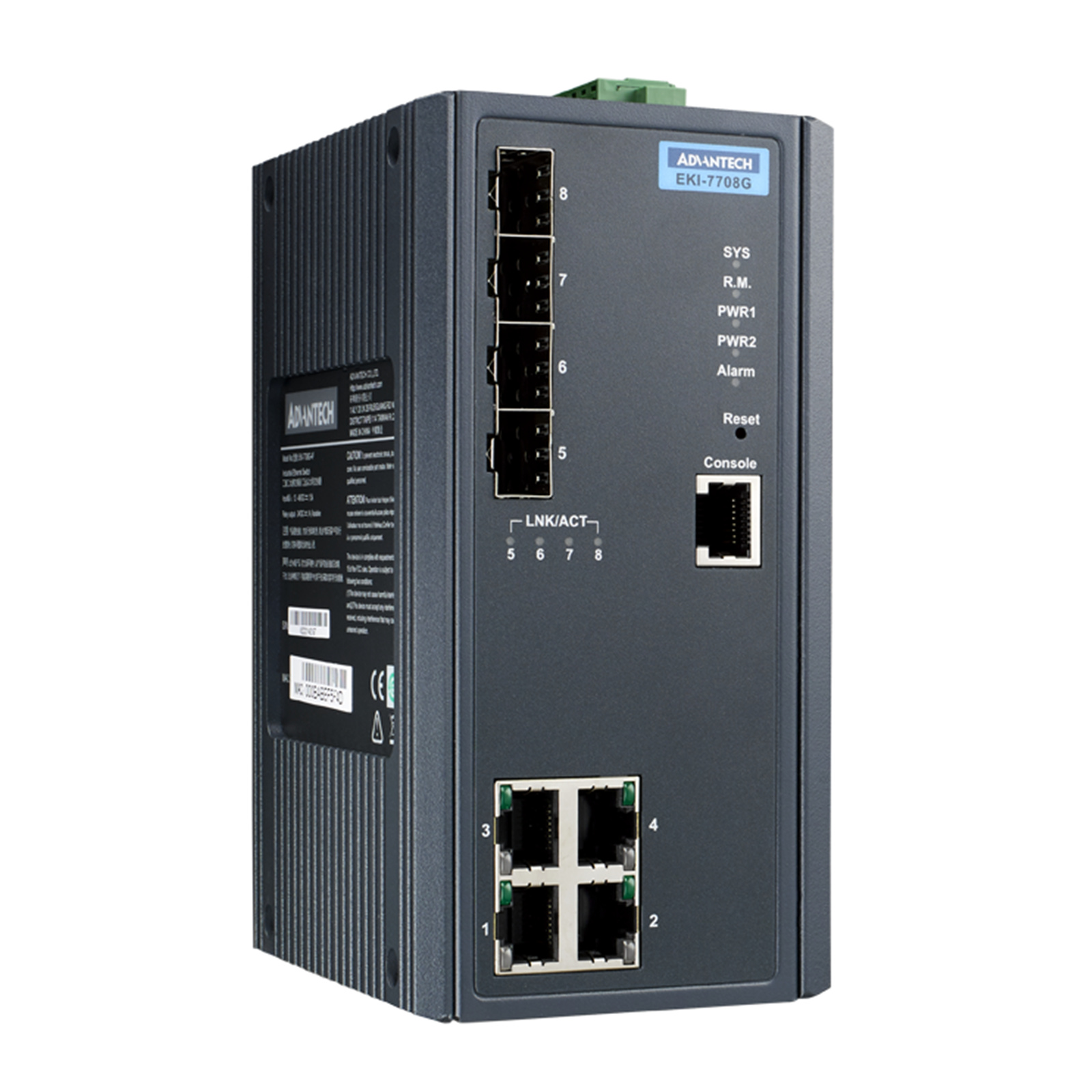

Advantech EKI-7708G-4F-AE 8 port Full Gigabit Ethernet Switch with 4 PoE+ port, 46 57VDC
- Brand: Advantech
- MPN: EKI-7708G-4F-AE
- Part #: IPCAVH220588

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220588/Advantech-EKI-7708G-4F-AE-8-port-Full-Gigabit-Ethe
Features
4GE+4G SFP Managed Ethernet Switch
- 4 Gigabit ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- Dual 12 ~ 48 VDC power input and 1 relay output
Specifications
Certification
Ethernet Standard
IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w
Vibration
IEC 60068-2-6
Freefall
IEC 60068-2-32
Shock
IEC 60068-2-27
EMS
-
EMI
CE, FCC Class A
EMC
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2
Environment
Temperature (Max. Operating)
60°C (140°F)
Temperature (Min. Operating)
-10°C (14°F)
Relative Humidity
10~95%
Operating Temperature
-10 ~ 60°C (14 ~ 140°F)
Operating Humidity
-
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
RJ-45/SFP Combo Port Speed
-
RJ-45/SFP Combo Port Number
-
Fiber Port Optical Mode
-
Fiber Transmission Speed
-
Fiber Port Number
4
RJ-45 Port Number
4
Fiber Transmission Distance
Up to 110 km
Fiber Port Connector Type
SFP cage
Fiber Port Interface
SFP
RJ-45 Transmission Distance
100 m
Ethernet Standard
-
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Speed
10/100/1000 Mbps
Mechanism
Mounting (Panel)
-
Enclosure (Plastic)
-
Mounting (Pole Mount)
-
Mounting (Stack)
-
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (DIN-rail)
Yes
Weight
1.1 kg
IP Rating
IP30
Dimensions (W x H x D)
74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
MTBF
Method
Telcordia, GB
Time
-
PoE Information
Support PoE
-
PoE Output
-
PoE Budget
-
PoE Port Number
-
Power
Redundant Dual Inputs
-
Power Input (Battery)
-
Power Input (PoE)
-
Power Input (AC)
-
Power Operating Current
0.25A @ 48VDC (system)
Power Connector Type
6-pin removable screw terminal (power & relay)
Power Input (DC)
12 ~ 48 VDC
Power Consumption
12.1W (system)
Protection
Reverse Polarity
Present
Overload Current
-
Switch Properties
Jumbo Frame
9,216 bytes
Switch Fabric Speed
16Gbps
Packet Buffer Size
4.1M bit
MAC Table Size
8K
