Advantech EKI-9510G-2GMH-AE EN50155 Managed Switch with 10xGE(2bypass), 72-110 VDC

PB Tech price

NZD $ 2,499 .00

$ 2,499 .00

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-9510G-2GMH-AE EN50155 Managed Switch with 10xGE(2bypass), 72-110 VDC

Brand: Advantech
MPN: EKI-9510G-2GMH-AE
Part #: IPCAVH220656
UPC:

PB Tech price

NZD $ 2,499 .00

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

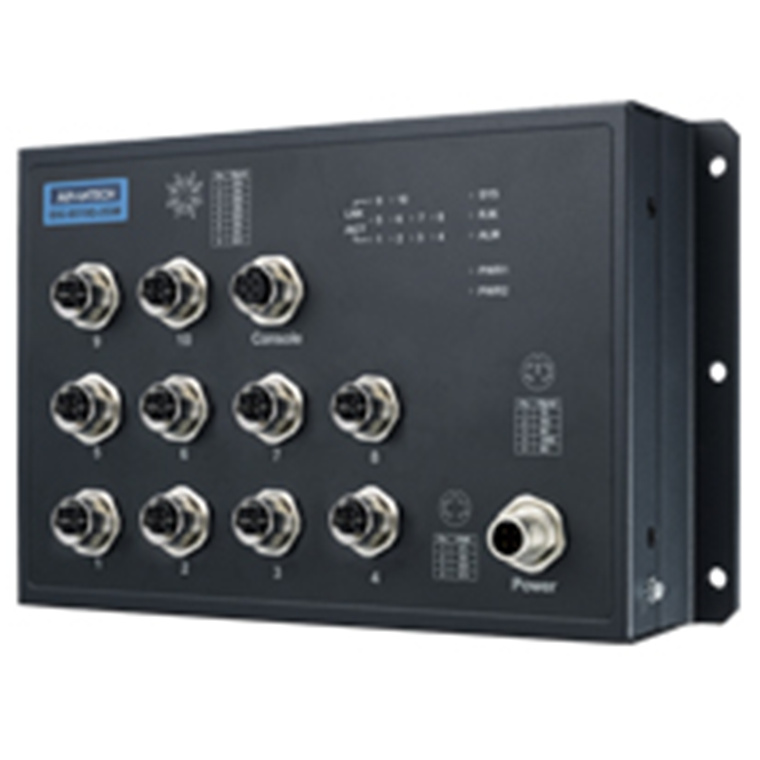

Click or hover over image to enlarge

Brand: Advantech
MPN: EKI-9510G-2GMH-AE
Part #: IPCAVH220656
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9510G-2GMH is a Managed Ethernet switch, it provides 8 x Gigabit Ethernet M12 X-code interface. It also provides 2 x Gigabit Ethernet M12 X-code interface with Bypass function, to increase the reliability of the network. EKI-9510G-2GMH features a "flat" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet.

- Complies with EN50155
- 8 x M12 X-Coded 10/100/1000Mbps ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
- Power Input: EKI-9510G-2GMH:72/96/110 VDC
- Operating Voltage: EKI-9510G-2GMH: 50.4~137.5 VDC
- X-Ring Pro supports rapid and predictable convergence
- M12 connector with IP40 protection

Specifications

Interface

I/O Port

8 x 10/100/1000Mbps M12 X-Coded + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function

Console port

M12 A-Coded

Power Connector

M12 A-Coded

Physical

Enclosure

Aluminum Shell

Protection Class

IP 40

Installation

Wall Mount

Dimensions (W x H x D)

216 x 132 x 59.3 mm

Weight

1.5kg

LED Display

System LEDs

PWR1, PWR2, SYS, R.M., Alarm

Environment

Operating Temperature

-40 ~ 70°C (-40 ~ 158°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Ambient Relative Humidity

5 ~ 95% (non-condensing)

Power

Power Consumption

10 Watts

Power Input

EKI-9510G-2GMH: 72/96/110 VDC

Operating Voltage

EKI-9510G-2GMH: 50.4~137.5 VDC
Dual inputs Supports Overload Current Protection
Supports Reverse Polarity Protection

Certification

EMI

FCC Part 15 Subpart B Class A
CE EN55032 (CISPR)
EN55024 Class A

EMS

EN61000-4-2 (ESD); EN61000-4-3 (RS);
EN61000-4-4 (EFT); EN61000-4-5 (Surge);
EN61000-4-6 (CS)

Shock

IEC 61373

Vibration

IEC 61373

Certificate

EN 50155; EN50121-3-2

L2 Features

L2 MAC Address

Jumbo Frame

9KB

VLAN Group

256 (VLAN ID 1~4093)

VLAN

802.1Q VLAN, GVRP

Port Mirroring

Per port, Multi-source port

IP Multicast

IGMP Snooping v1/v2/v3, MLD Snooping, IGMP Immediate leave

Storm Control

Broadcast, Multicast, Unknown unicast

Redundancy Protocol

IEEE 802.1D-STP, IEEE 802.1s-MSTP,
IEEE 802.1w-RSTP, X-Ring Pro

QoS

Priority Queue

Scheduling WRR (Weighted Round Robin),
SP (Strict Priority)

Class of Service

IEEE 802.1p based CoS, IP TOS, DSCP based CoS

Rate Limiting

Egress Rate limit

Link Aggregation

IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking

Manufacturer Part No:

EKI-9510G-2GMH-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220656

Product Model:

EKI-9510G-2GMH-AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
