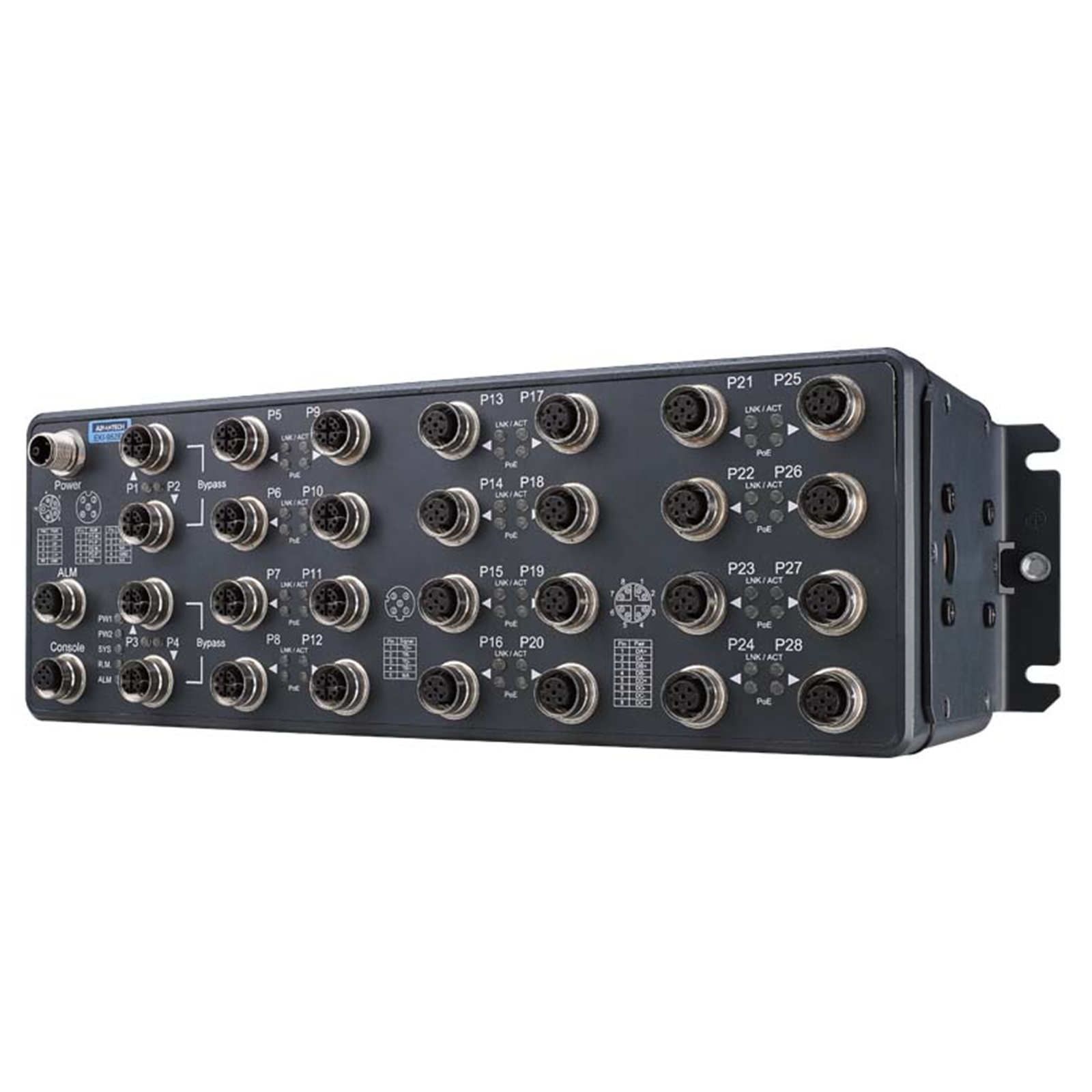

Advantech EKI-9528G-4GMX-A EN50155 Managed Ethernet Switch with 28xGE, 24-110VDC

PB Tech price
PB Tech price
NZD $ 6,317 .50
$ 6,317 .50

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-9528G-4GMX-A EN50155 Managed Ethernet Switch with 28xGE, 24-110VDC

  • Brand: Advantech
  • MPN: EKI-9528G-4GMX-A
  • Part #: IPCAVH220694
  • UPC:
PB Tech price
NZD $ 6,317 .50 $ 6,317 .50
Out of stock
Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Advantech
  • MPN: EKI-9528G-4GMX-A
  • Part #: IPCAVH220694
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

Advantech's EKI-9528 series Ethernet switch delivers a ruggedized design with high EMC performance to rolling stock, wayside control, and other railroad applications. This solution leverages M12 connectors for Ethernet, console, relay, and power-input - ensuring excellent connectivity and endurance in harsh environments. EKI-9528 accommodates 12 different users' options. It provides 28 x ports Full Giga Ethernet or 16 x ports Fast Ethernet + 12 Giga (with 4 x Relay Bypass ports) with IEEE802.3af/at PoE function (PoE model only). PoE models deliver 150W of power to cameras, IP-phones, wireless access points, and other devices. In addition, Advantech's EKI-9528 series features an IP54 certified ruggedized housing and ample pitch connectors that connect/disconnect cables easily. This solution accommodates deployment in compact spaces and delivers mass Ethernet connection.

- M12 connector with ruggedized IP54 certified housing
- Complies with EN50155 and EN50121-3-2 standards
- 24 x PoE IEEE802.3af/at ports
- Wide nominal power input range: 24 ~ 110VDC
- Operating power input range: 16.8 ~ 137.5VDC
- X-Ring Pro delivers rapid and predictable convergence
- Leverages IXM technology to ease maintenance
- Provides N-Key for quick configuration and backup
- Broad operating temperatures (-40 ~ 70 °C/-40 ~ 158 °F)
- Fast Full Giga Ethernet solution

Specifications

Model

EKI-9528G-4GMX-A

10/100/1000BASE-T

28 (P1-28)

Interface

Ethernet port

M12 4pin D-coded for Fast Ethernet (10/100BASE-T)
M12 8pin X-coded for Gigabit Ethernet (10/100/1000BASE-T)

Console port

M12 5pin A-coded

Relay port

M12 5pin A-coded with 2 relay outputs of 1A @ 24VDC

Power connector

M12 K-coded connector

Physical

Enclosure

Die-cast zinc front panel and extruded aluminum chassis

IP rating

IP 54

Installation

Wall Mount

Dimensions (W x H x D)

300 x 105 x 105 mm/11.8 x 4.1 x 4.1 in
*not including bracket

Weight

6.4 kg (14.1 lb)

LED Display

System LEDs

PWR1, PWR2, SYS, R.M., and Alarm

Port LED

Data, PoE (For PoE model only)

Environment

Operating temperature

-40 ~ 70 °C (-40 ~ 158 °F)

Storage temperature

-40 ~ 85 °C (-40 ~ 185 °F)

Ambient relative humidity

5 ~ 95% (non-condensing)

Power

Power consumption

25 Watts

Nominal input voltage

24/28/36/48/72/96/110VDC

Operating range

16.8 ~ 137.5VDC

Over current protection

Yes

Reverse polarity protection

Yes

Switch Properties

DRAM

64MB

Flash

32MB

Max. IGMP group

256

Max static VLANs

256

VLAN ID range

1-1094

MAC table

8K

Jumbo frame

9KB

Packet buffer

4.1MB

Max priority queues

8

Certification

Safety

EN62368-1

EMC

CE, EN55011/ 55032/ 55024; FCC Part 15 Subpart B class A

EMS

EN61000-4-2(ESD); EN61000-4-3(RS); EN61000-4-4(EFT); EN61000-4-5(Surge); EN61000-4-6(CS)

Shock

EN 61373

Vibration

EN 61373

Railway

EN50155, EN50121-2-3, 50121-1

Fire resistant

EN45545-2

Other

EN61000-6-4, EN61000-6-2

L2 Features

VLAN group

802.1Q, GVRP, GMRP, 802.1ad VLAN stacking

Port mirroring

Per port, multi-source port (4 mirroring sessions max.)

IP multicast

IGMP snooping v1/v2/v3, MLD snooping (256 multicast Entries max.)

Storm control

Broadcast, multicast, unknown unicast

Redundant protocol

IEEE 802.1D(STP), IEEE802.1s(MSTP), IEEE802.1w(RSTP), X-Ring Pro, X-Chain, Dual homing, Coupling, ERPS G.8032

Quality of Service

QoS function

Scheduling(STRICT/ WRR), Port Priority, 802.1p, DSCP, IP TOS/ precedence

Rate limit

Ingress/Egress rate limit

Security

Port security

Static MAC, MAC violation notice, port-based loop detection

Authentication

802.1x (Port-based, MAC-based), RADIUS, TACACS+

Security pack

IP source guard, DoS attack prevention, DHCP snooping, ARP spoofing prevention, L2/ L3/ L4 ACL (access control list)

Management Features

DHCP

Client, Server, Option 66/67/82, Port IP-Binding

Access

SNMP v1/v2c/v3, WEB, Telnet, Console, RMON, Standard MIB, Private MIB

Security access

SSH (v2), SSL (v2), HTTPs

Software upgrade

TFTP, HTTP, Dual Image

NTP

NTP server/ client, SNTP

Other

IPv4, IPv6, Modbus TCP, IXM, N-Key for config file backup/restore

Manufacturer Part No:
EKI-9528G-4GMX-A
Brand:
Advantech
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220694
Product Model:
EKI-9528G-4GMX-A
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
