Advantech FPM-215-R9AE 15 XGA Ind. Monitor,w/Resistive TS(24Vdc)

PB Tech price

NZD $ 1,334 .04

$ 1,334 .04

Advantech FPM-215-R9AE 15 XGA Ind. Monitor,w/Resistive TS(24Vdc)

Brand: Advantech
MPN: FPM-215-R9AE
Part #: IPCAVH220703
UPC:

PB Tech price

NZD $ 1,334 .04

In stock at Supplier

Delivery: Order now and it ships on 29 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: FPM-215-R9AE
Part #: IPCAVH220703
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

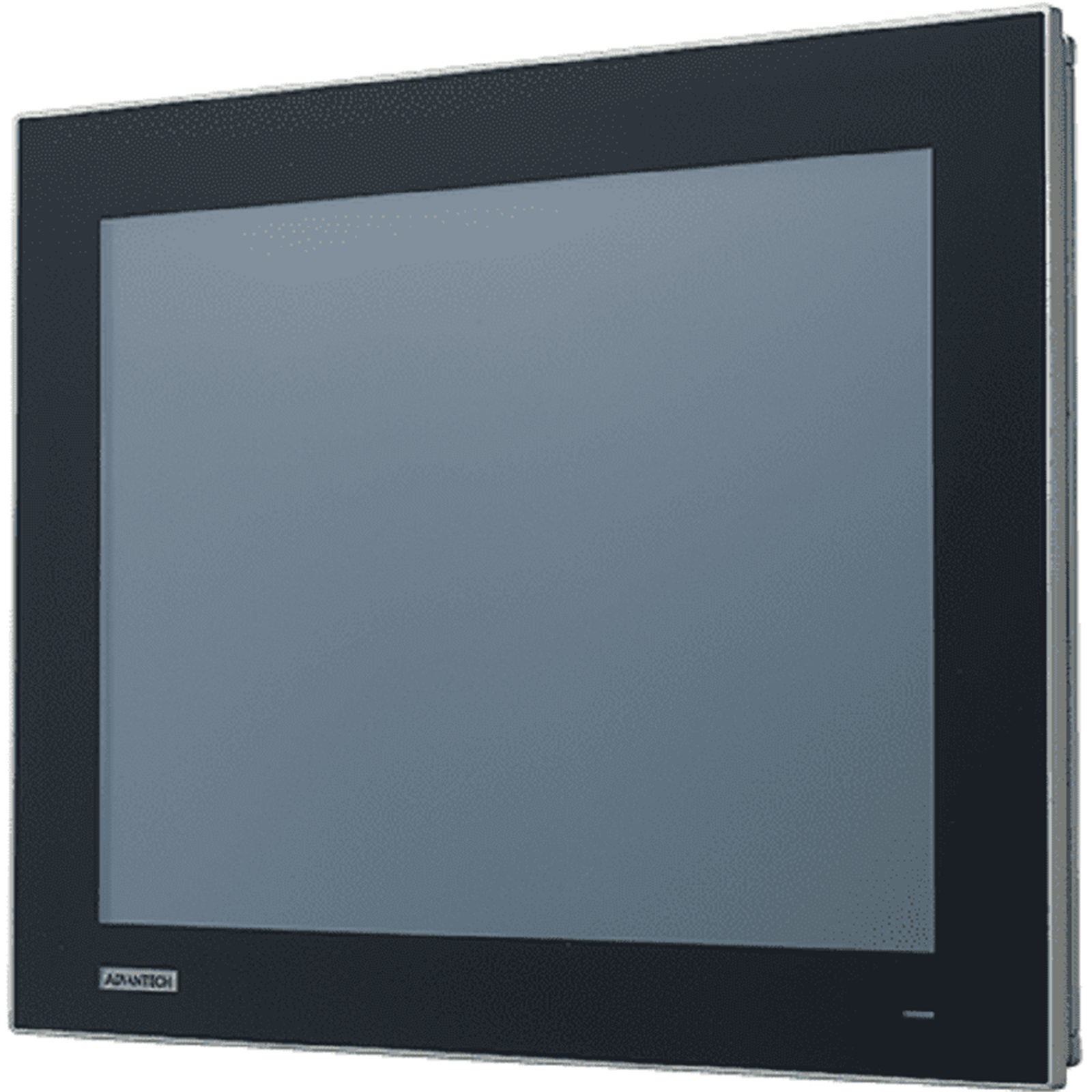

15" XGA Industrial Monitors with Resistive Touch Control, Direct HDMI, DP, and VGA Ports

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen. Equipped with durable resistive touch control and an IP66-rated front bezel, FPM-200 series is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.

- 15" XGA with 70,000 backlight lifetime
- Direct HDMI, DP and VGA input interfaces
- Anti-glare screen with tempered glass
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
- Slim design enables easy installation
- Supports various mount options: panel, desktop, and VESA arm

For more information: https://advdownload.advantech.com/productfile/PIS/FPM-212/file/FPM-212_215_217_219(010423)20230106151627.pdf

Specifications

General

Certification

BSMI, CCC, CE, FCC Class A, UL

Dimensions (W x H x D)

FPM-215: 383.2 x 307.3 x 53.20 mm (15.08 x 12 x 2.09 in)

Enclosure

Front panel: Die cast magnesium alloy
Rear cover: Die-casting aluminum

Mount Options

Stand, Wall, Panel and VESA arm (75 x 75mm)

Power Input

FPM-2XX-R9AE: Terminal Block: 24 VDC input

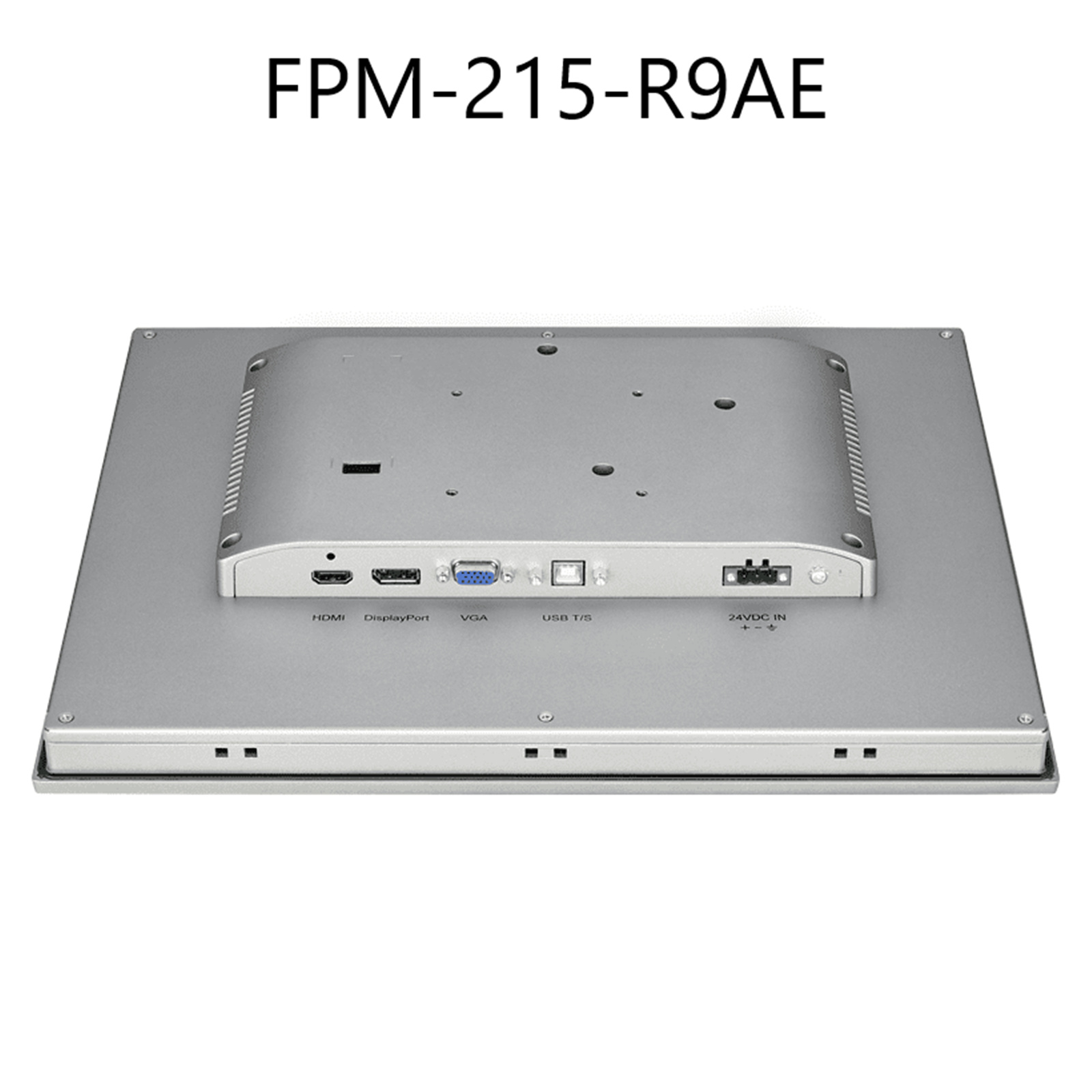

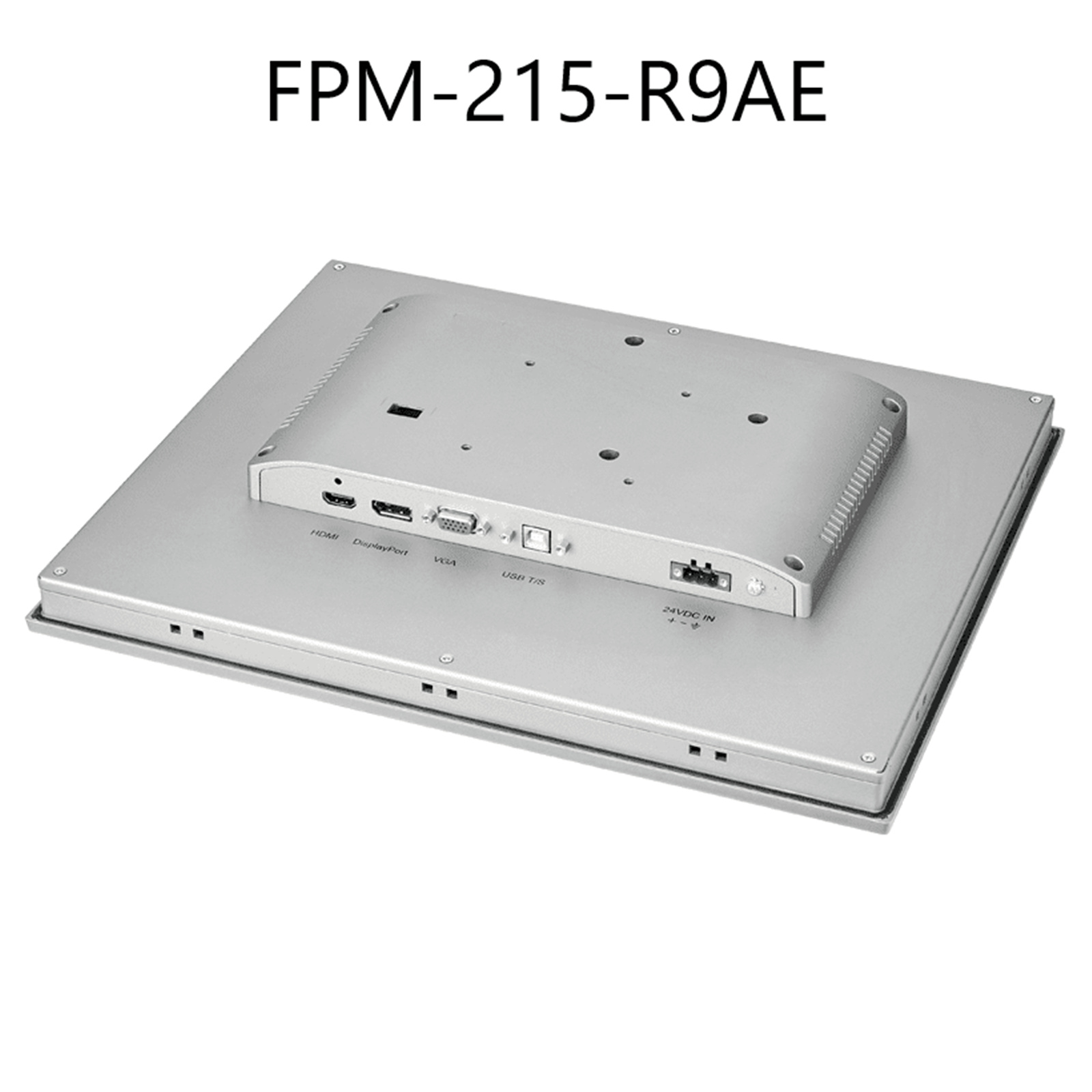

Video Port

HDMI, DP, and VGA

Weight (Net)

4.6 kg

Power Consumption

FPM-215-R9AE

14.19(idle), 14.75(Max)

LCD Display

Display Type

XGA

Display Size

15"

Max. Resolution

1024 x 768

Max. Color

16.2M

Viewing Angle (H/V °)

176/176

Luminance (cd/m²)

300

Backlight Life

70,000 hr

Contrast Ratio

2000:1

Touchscreen

Type

5-wire analog resistive

Interface

USB

Light Transmission

Above 75%

OS Support

Windows XP, Vista,7, 8,10,XPe and Linux

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Humidity (Storage)

10 ~ 90% non-condensing

IP Rating

IP-66 graded front panel

Vibration

5 ~ 500 Hz, 1 Grms (Operating, Random)

Manufacturer Part No:

FPM-215-R9AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220703

Product Model:

FPM-215-R9AE

Warranty: 12 months *
