Advantech FPM-7121T-R3AE 12.1" XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA/DP and Wide Operating Temperature Range
- Brand: Advantech
- MPN: FPM-7121T-R3AE
- Part #: IPCAVH220713

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220713/Advantech-FPM-7121T-R3AE-121-XGA-Industrial-Monito
Features

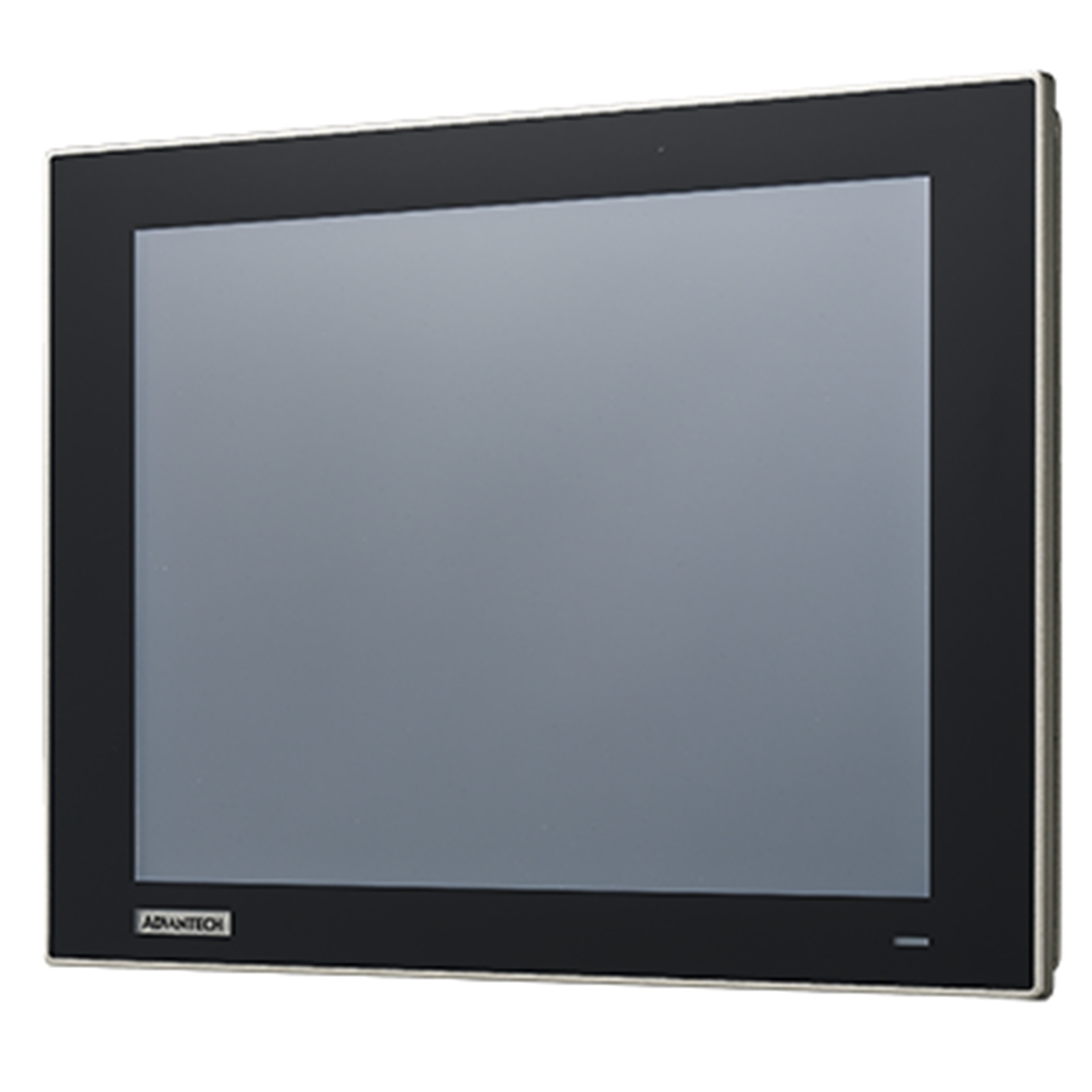

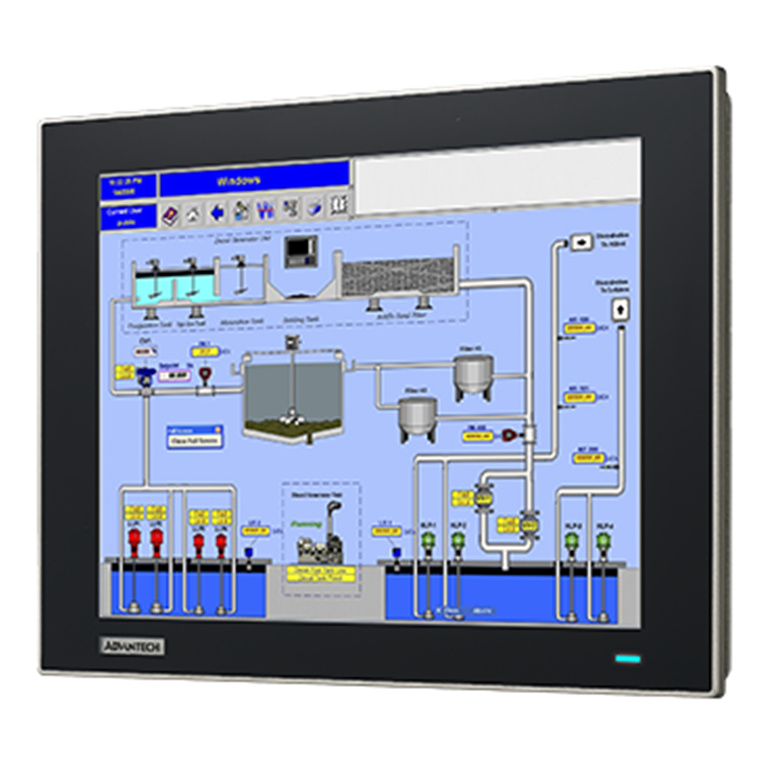

12.1" XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA/DP and Wide Operating Temperature Range
FPM-7000T series monitors are the first, true-flat, 4:3, industrial-grade monitors. The 5-wire resistive touchscreen is enclosed in a highly durable, die cast aluminum alloy front bezel
that provides IP66-rated protection from water and dust ingress. Additionally, the FPM-7000T series monitors support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
and various mount options to ensure easy installation and support for diverse environments.
- 12.1" XGA TFT LED LCD with 50K backlight lifetime
- Robust system with IP66-rated aluminum front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Anti-glare touchscreen with tempered glass

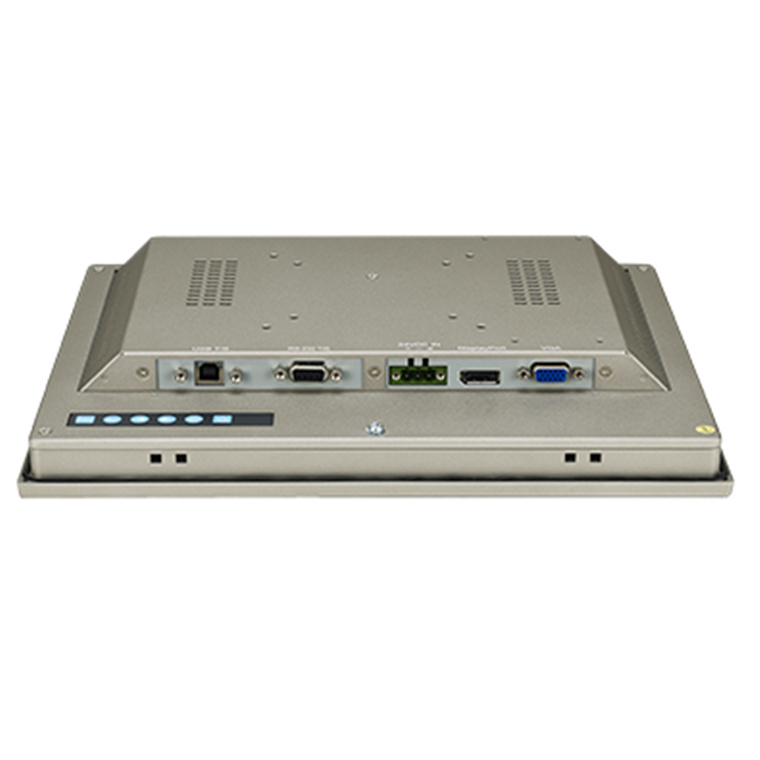

- Supports various mount options: panel, wall, desktop, and VESA arm
- Combo RS-232+USB interface for touchscreen functionality
- OSD control buttons on rear panel
- Lockable I/O connectors
Specifications
General
OSD Controls
OSD control buttons on rear panel
Certification
BSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D)
311.8 x 238 x 44.5 mm (12.28 x 9.37 x 1.76 in)
Enclosure
Front panel: Die cast magnesium alloy
Rear cover: SECC
Mount Options
Stand, Wall, Panel and VESA 75x75 & 100x100mm
Power Input
Phoenix Jack: 24 VDC input
Power Consumption
15 W + 20%
Video Port
VGA & DP
Weight (Net)
2.6 kg (5.73 lb)
LCD Display
Display Type
XGA TFT LED LCD
Display Size
12.1"
Max. Resolution
1024 x 768
Max. Color
16.2M
Viewing Angle (H/V °)
160/140
Luminance (cd/m²)
600
Backlight Life
50,000 hr
Contrast Ratio
700 :1
Touchscreen
Type
5-wire, analog resistive
Interface
RS-232 and USB
Light Transmission
Above 75%
OS Support
Windows XP, Vista,7, 8,10,XPe and Linux
Environment
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature
-30 ~ 70 °C (-22 ~ 158 °F)
Humidity (Storage)
10 ~ 90% non-condensing
IP Rating
Front panel is IP66 compliant
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
