Advantech FPM-7151W-P3AE 15.6" WXGA Industrial Monitor with PCAP Touch Control, Direct VGA, and DVI Ports

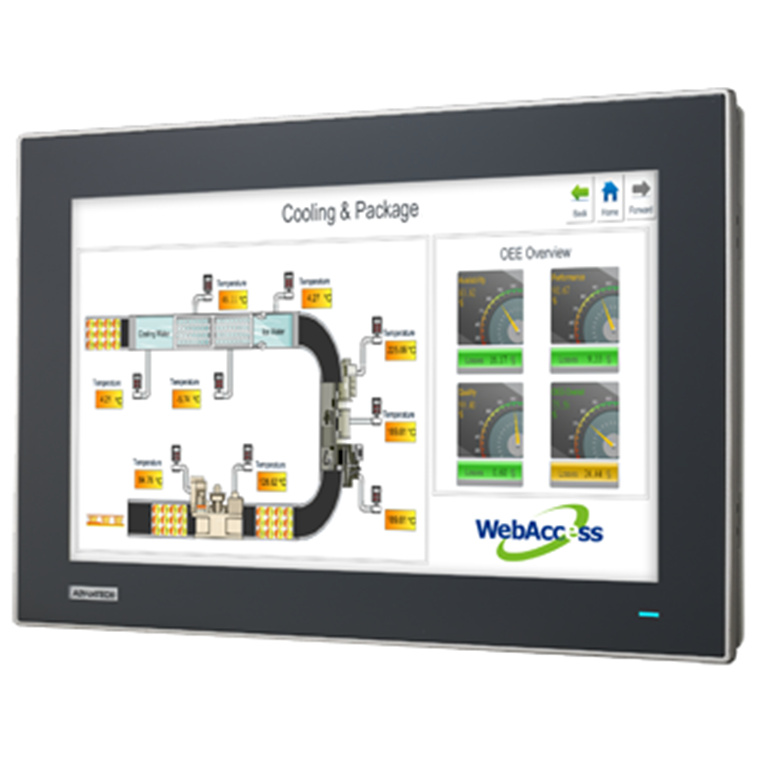

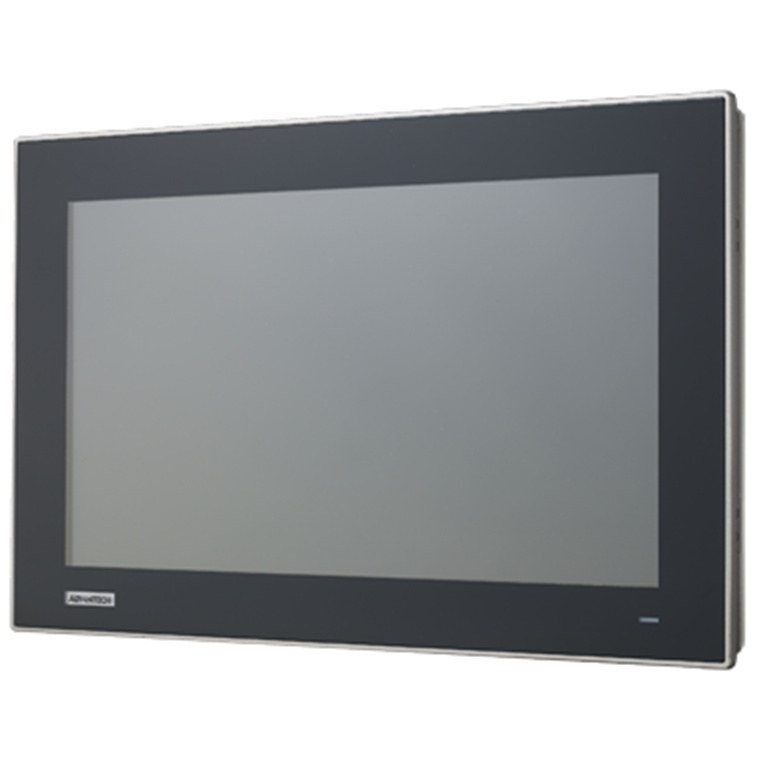

The FPM-7151W is an industrial-grade, widescreen monitor with sleek, simple lines and a true-flat touchscreen. Equipped with PCAP 10-point multi-touch control and an IP66-rated front bezel, FPM-7151W is designed for intuitive operation in harsh industrial environments. Moreover, FPM-7151W supports a range of mount options to ensure easy, single-person installation.
- 15.6" WXGA TFT LED LCD backlight LCD with truly-flat multi-touch screen
- 16:9 wide screen display, view area increases by 40%
- Supports 10-point multi-touch control via USB interface in Windows 7/8 OS
- Slim design enables easy installation
- Supports various mount options: panel, wall, desktop, and VESA arm
- Touchscreen with reliable glass surface and PCAP touch control
- Robust system with SECC chassis and IP66-rated magnesium alloy front panel
- OSD control buttons on rear pane

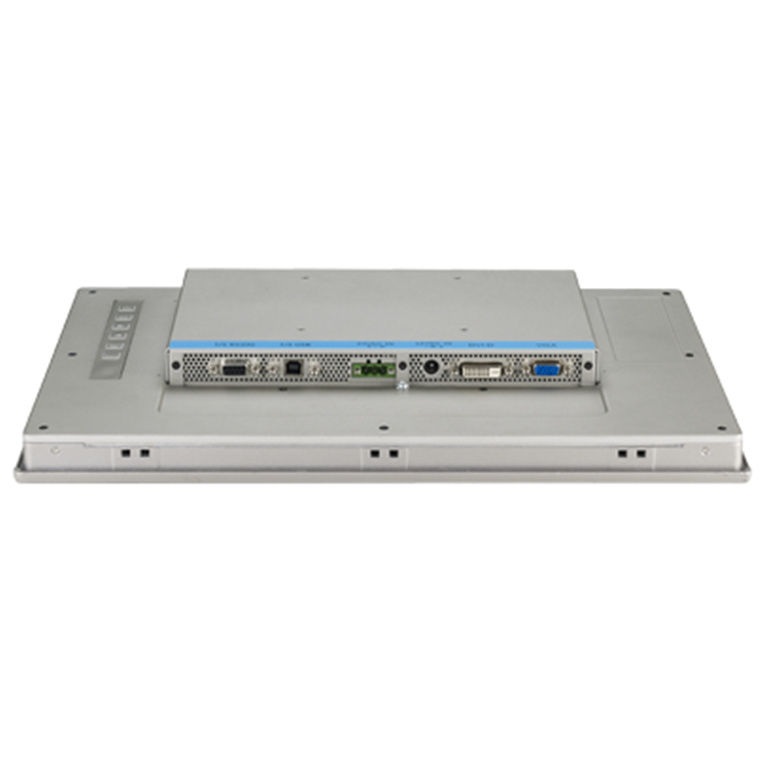

- Lockable I/O connectors
Specifications
Environment
Ingress Protection
Front Panel IP66
Operating Temperature
0~55 °C (32~131 °F)
Storage Humidity
10~90% RH (non-condensing)
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
1 Grms, random
Hardware
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
OS Support
Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
Power Input
24 VDC
Video Port
HDMI, VGA, DVI-D
I/O Interface
Power Connector
1 x Phoenix Jack
LCD Display
Backlight Life (hrs)
50,000
Display Size
15.6"
Luminance (cd/m2)
300
Max. Resolution
1366 x 768
Viewing Angle (H/V°)
170/160
Mechanical
Dimensions (L x H)
419.7 x 269 mm
Enclosure
Die cast magnesium alloy, SECC
Mounting
Stand, Wall, VESA, Panel
Weight (Net)
5 kg (11 lb)
Touchscreen
Touch Type
PCAP
