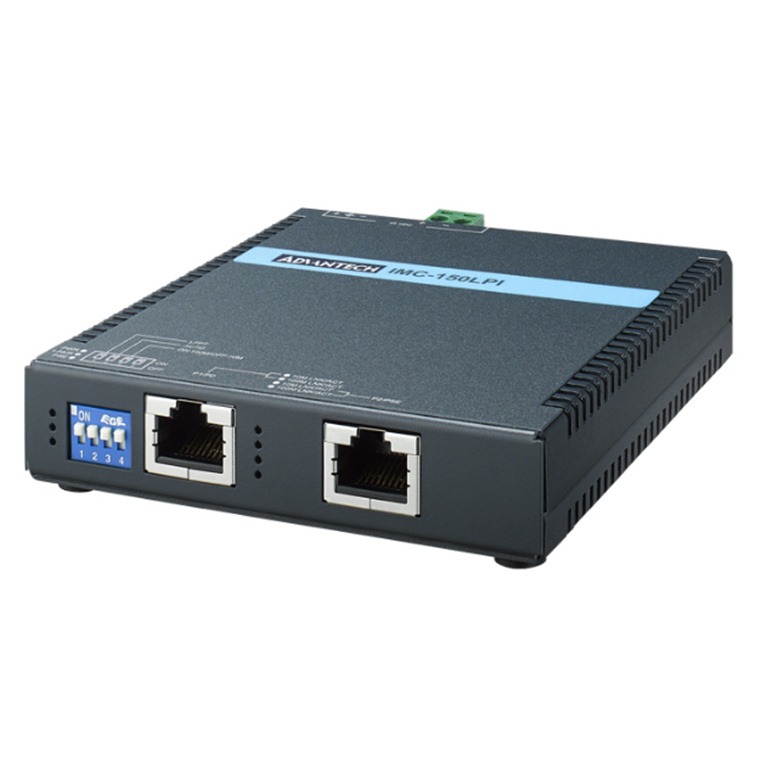

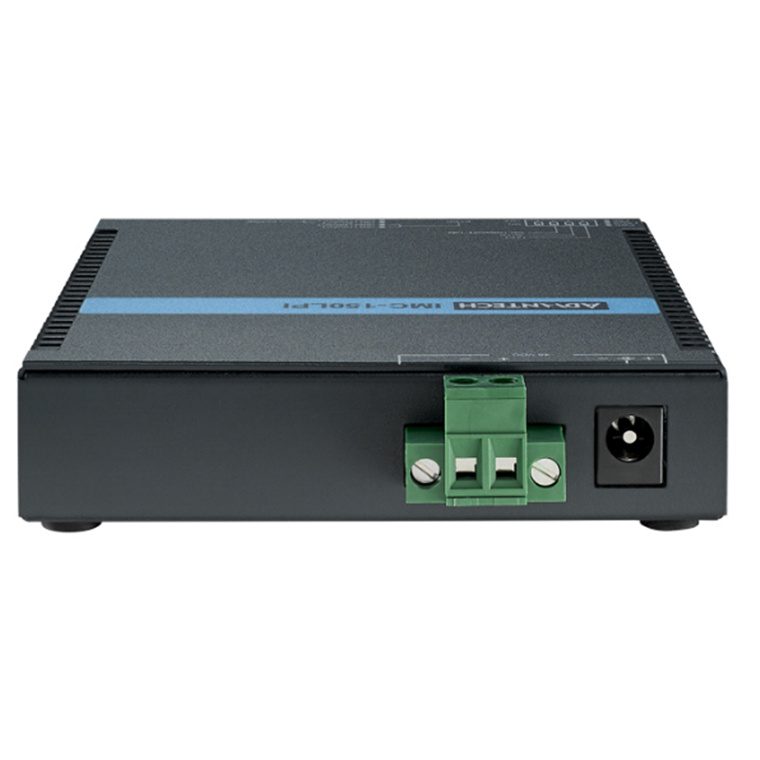

Advantech IMC-150LPI Hardened PoE Long Reach Ethernet Extender, UTP
Advantech IMC-150LPI Hardened PoE Long Reach Ethernet Extender, UTP
- Brand: Advantech
- MPN: IMC-150LPI
- Part #: IPCAVH220744
- UPC:
- Brand: Advantech
- MPN: IMC-150LPI
- Part #: IPCAVH220744
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech IMC-150LPI Hardened PoE Long Reach Ethernet Extender, UTP
- Brand: Advantech
- MPN: IMC-150LPI
- Part #: IPCAVH220744

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220744/Advantech-IMC-150LPI-Hardened-PoE-Long-Reach-Ether
Features
IMC-150LPI Hardened PoE Long Reach Ethernet Extender, UTP
- Extends Ethernet up to 800m at 10 Mbps or 500m at 100 Mbps over UTP cable
- Dual design with PoE+ PD/PSE
- Railway Trackside EN 50121-4
- Features Link Fault Pass Through (LFPT)
- Switch-selectable for configuring LAN rate and connection type
Specifications
MPN
IMC-150LPI
Ethernet Communication
RJ-45 Port Number
1
Fiber Transmission Speed
10/100 Mbps
PoE Information
PoE Port Number
1
PoE-PSE
Yes
PoE-PD
Yes
Power
Power Input (DC)
48 VDC
Mechanism
Dimensions (W x H x D)
92.58 x 21.08 x 98.04 mm ( 3.65 x 0.83 x 3.86 in.)
Weight
0.4 kg
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
10~95% (non-condensing)
Certification
EMC
CE, FCC Class A, CSA
