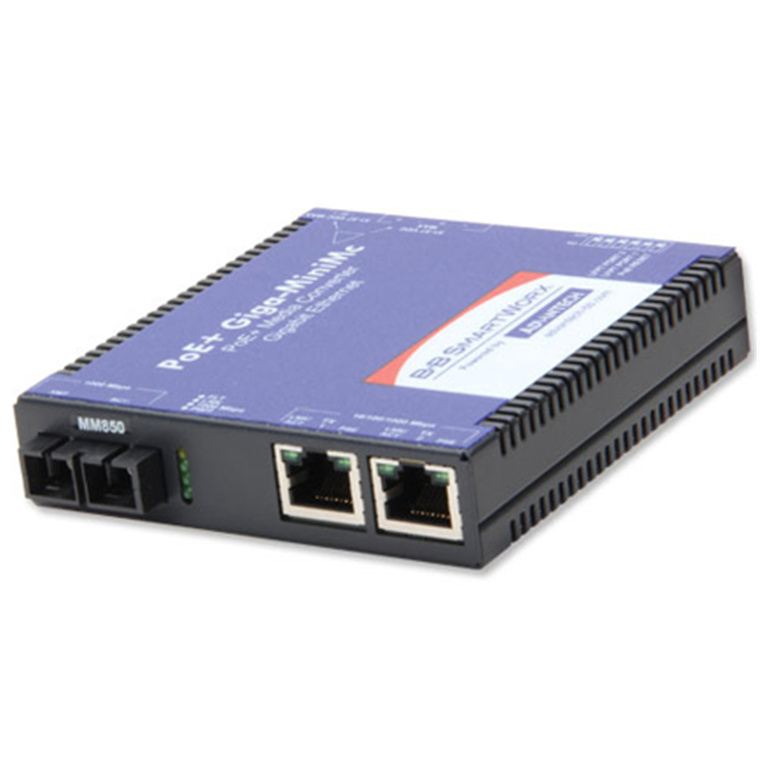

Advantech IMC-390-MM-US Mini PoE+ Media Converter, 1000Mbps, Multimode 850nm, 550m, SC, AC adapter (also known as MiniMc 857-11912)

PB Tech price

NZD $ 824 .68

$ 824 .68

Advantech IMC-390-MM-US Mini PoE+ Media Converter, 1000Mbps, Multimode 850nm, 550m, SC, AC adapter (also known as MiniMc 857-11912)

Brand: Advantech
MPN: IMC-390-MM-US
Part #: IPCAVH220831
UPC:

PB Tech price

NZD $ 824 .68

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: IMC-390-MM-US
Part #: IPCAVH220831
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Mini PoE+ Media Converter, 1000Mbps, Multimode 850nm, 550m, SC, AC adapter (also known as MiniMc 857-11912)

The IMC-380 and IMC-390 series are compact, multi-port media converters that support both IEEE802.3at PoE+ and IEEE802.3af PoE standards. These unmanaged, plug-n-play media converters with PoE capability are thus ideal solutions for Ethernet networks.

Designed with two 10/100/1000Base-T copper UTP ports and SFP or a fixed fiber transceiver, 1x9 uplink port for the network connection, the IMC-380 series can power one PD device through a standard CAT5 (or higher version) cable via one copper port while delivering data over the other port. The IMC-390 series is capable of powering up to two PD devices with a power budget of 60W.

The IMC-380 and IMC-390 series support Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair, copper interface) and FX LinkLoss (Fiber, fiber interface) from both local and remote IMC network media converters, when used in pairs. This feature, when enabled, will pass a link fault through the device at each segment. If a link fails on one interface of the media converter, the media converter will force the link down on its link partner and then forward it to the next interface.

- Supports IEEE802.3af PoE (15.4W) standards
- Serves as a power sourcing equipment (PSE) device
- Supports jumbo frame functionality (up to 10240 bytes)
- Supports multiple mounting options (desktop, DIN rail or wall-mount)
- Features in configurable PoE reset on fiber LOS
- Supports Link Fault Pass Through (LFPT)

Specifications

MPN

IMC-390-MM-US
Note: The P/N followed by 'US' is package with power adapter and US power cord.

Also Known As

857-11912

PoE-PSE

PoE+

Optical Mode

Multi-mode

Wavelength

850 nm

Distance

220/550m

Optical Connector

Technical

IEEE 802.3, 802.3u, 802.3ab, 802.3z IEEE 802.3at/af (IMC-390 series) IEEE 802.3af (IMC-380 series) AutoCross for MDI/MDIX FX and TX Auto Negotiation Supports Link Fault Pass Through (LFPT)

AC Power Input

100 to 240 VAC, 50/60H 0.7A for IMC-380 series 100 to 240 VAC, 50/60H 2.31A for IMC-390 series

DC Power Input

45 to 57 VDC on DC terminal block for IMC-380 series 51 to 57 VDC on DC terminal block for IMC-390 series

Operating Temperature (DC Terminal Block)

0 to +70 °C (+32 to +158 °F)

Operating Temperature (AC Adapter)

0 to +50 °C (+32 to +122 °F)

Storage Temperature

-35 to +75 °C (-31 to +167 °F)

Operating Humidity

5 ~ 95% (non-condensing) 0 ~ 10,000 ft. altitude

MTBF

604,306 Hours (SFP Models) 602,720 Hours (Fixed Fiber Models)

Dimensions (H x W x D)

2.032 x 9.258 x 9.7 cm (0.8 x 3.645 x 3.82 in)

Weight

0.45 kg (1.0 lb)

Certifications

CE, FCC Class A, UL/cUL, CSA

Manufacturer Part No:

IMC-390-MM-US

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220831

Product Model:

IMC-390-MM-US

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
