Advantech IMC-751-SSER Managed Modular Media Converter, 100Mbps, Single-Strand 1550xmt, 40km, SC (also known as iMcV 850-15636)
- Brand: Advantech
- MPN: IMC-751-SSER
- Part #: IPCAVH220918

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220918/Advantech-IMC-751-SSER-Managed-Modular-Media-Conve
Features

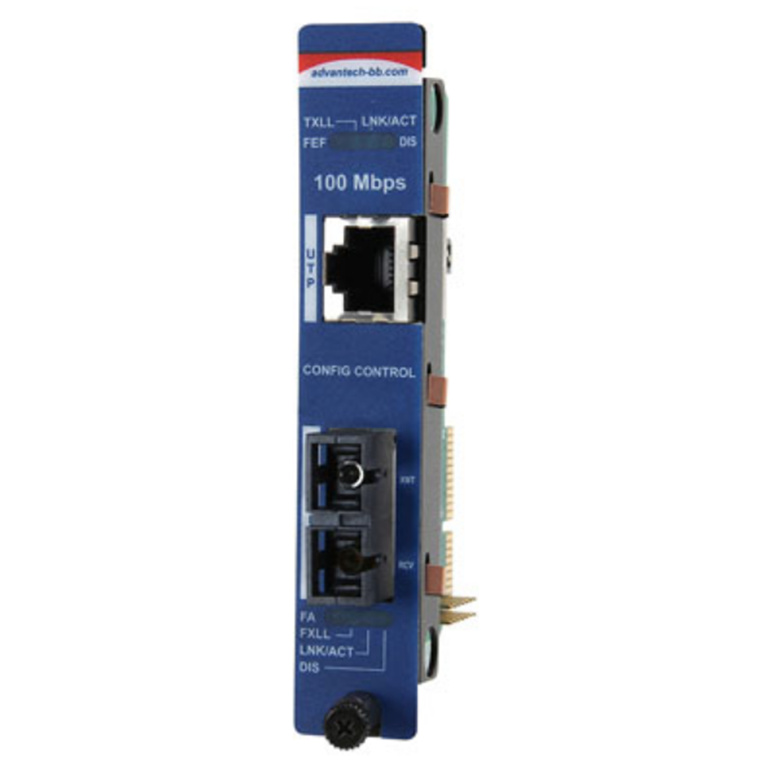

The IMC-751 series are slide-in module Ethernet-to-fiber media converters for the IMC-7xx chassis, which support hot-swappable and easy installation. They allow network operators to incorporate multiple fiber types and wavelengths within a network. They can be monitored and controlled via a central site with the IMC-710 SNMP management module by iVew² , Telnet, or CLI while installed in a IMC-71x series chassis.
- Variety of choices: multi-mode, single-mode, and single-strand fiber including SFP form factor
- Modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
- Provides modules with SFP transceivers that support extended operating temperature
- SNMP manageable
- Supports configuration control
- Supports Link Fault Pass Through (LFPT)
Specifications
MPN
IMC-751-SSER
Also Known As
850-15636
Ethernet Speed
100Mbps
Optical Mode
Single-Strand
* Single-Strand fiber deploys in pairs or connect another compatible single-strand fiber product.
Wavelength
1550T/1310R
Distance
40 km
Optical Connector
1 x SC
Technical
IEEE 802.3 (IMC-751 series)
Link Fault Pass-Through(LFPT)
AutoCross for MDI/MDIX
Supports LinkLoss and FiberAlert
Supports GUI-Based iVew²
Includes Diagnostic LEDs
Includes Hot-swappable Architecture
Meantime Before Failure (MTBF)
4.5 million hours (IMC-751 series)
Operating Temperature
0 to +50 °C (+32 to +122 °F)
Storage Temperature
-25 to +70 °C (-13 to +158 °F)
Operating Humidity
5 ~ 95% (non-condensing)
0 ~ 10,000 ft. altitude
Dimensions (H x W x D)
10.74 x 2.0 x 7.05 cm (4.19 x 0.78 x 2.75 in)
Weight
0.11 kg (0.30 lb)
Certifications
CE, FCC Class B
UL, CS
